1.

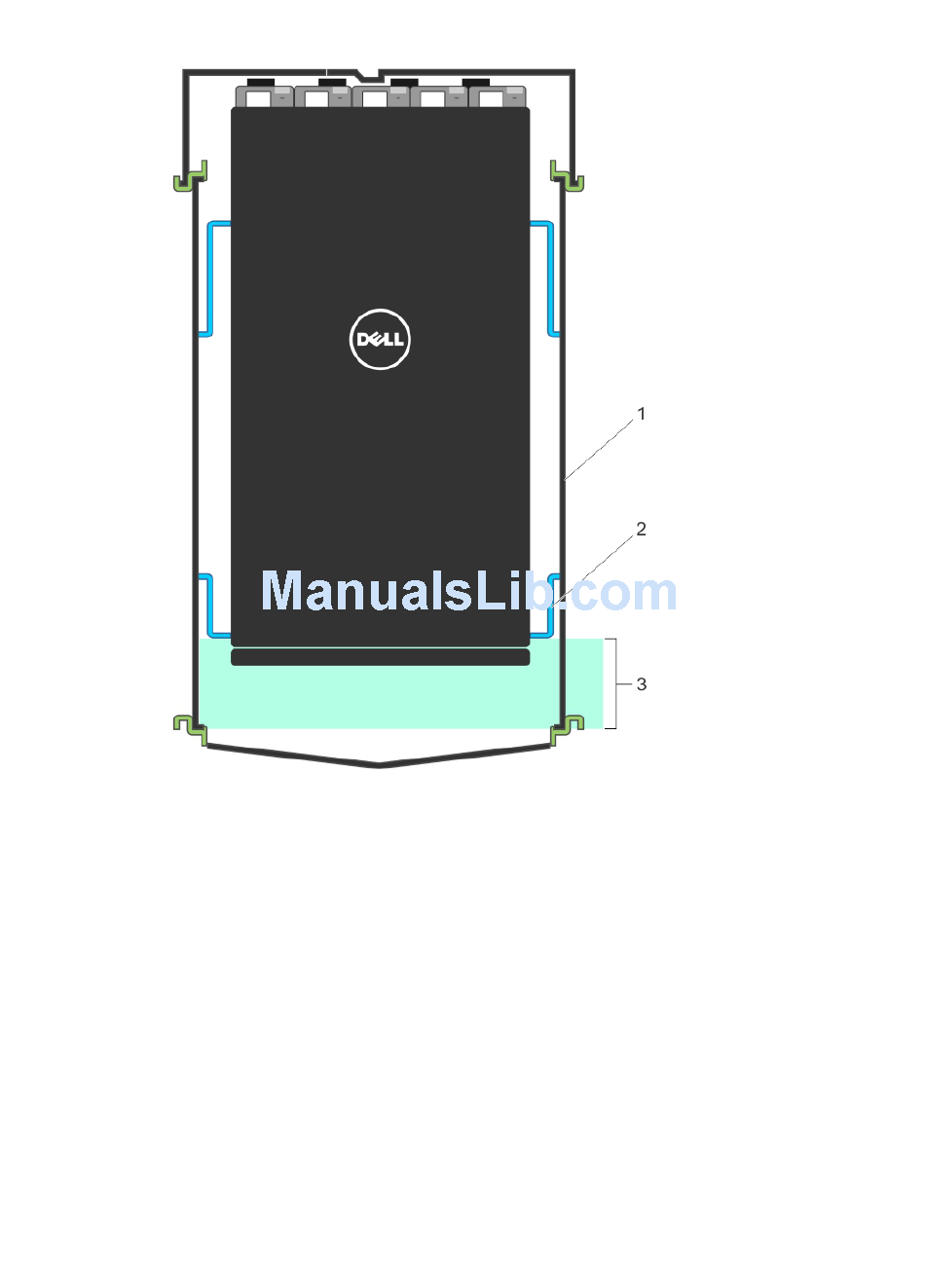

Dell 4226 (1070 mm) cabinet outline
3.
6.5 inches
1.
Align the system with rails and slide the system into rack.
2.
Tighten the screws on each side of the systems's front panel (1).
3.
To remove the system from the rack, loosen the screws and slide the system out of the rack.
12
2.
Adjustable front vertical rail inside Dell 4226
cabinet
Getting Started Guide
