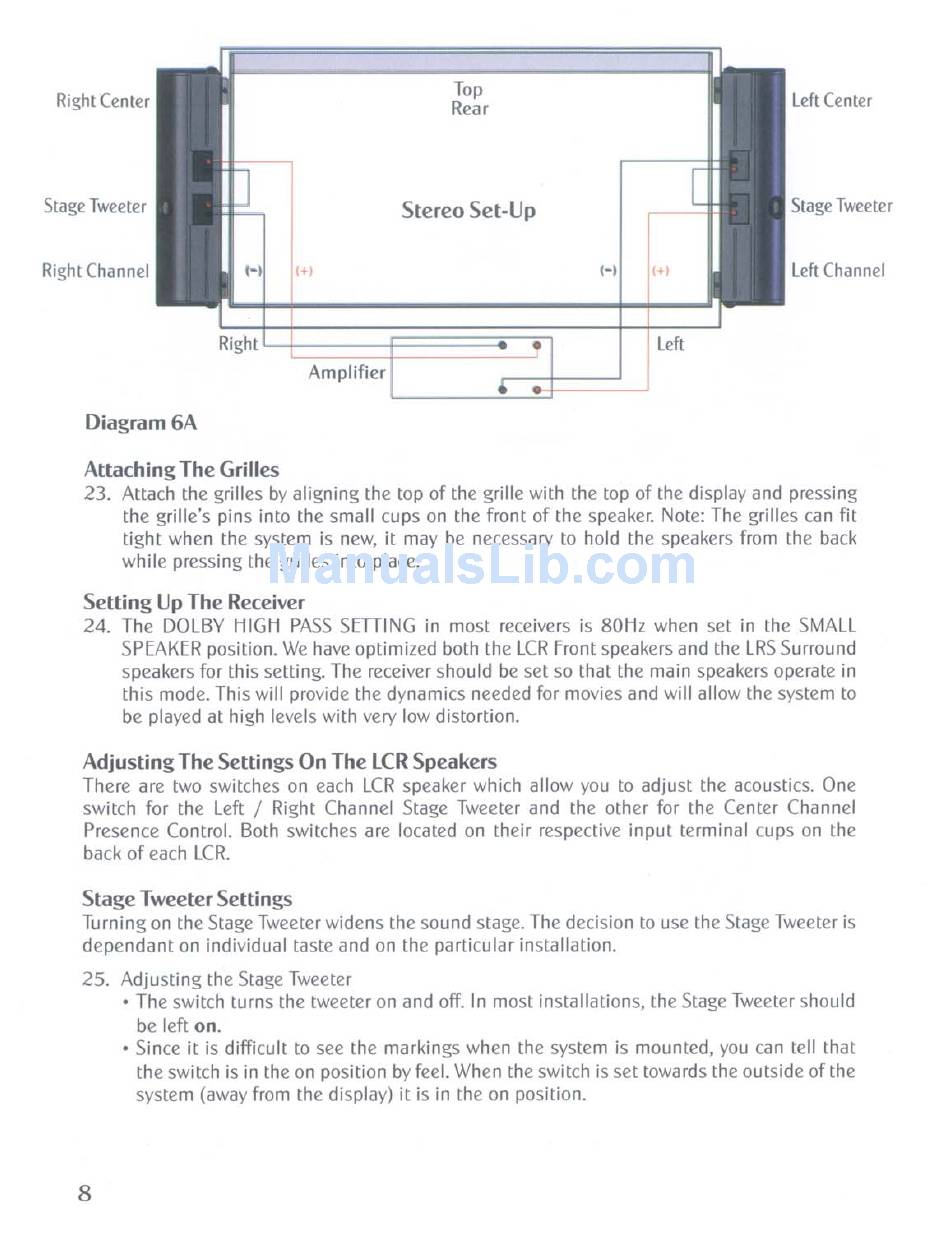

Stereo Set-Up; Attaching The Grilles; Setting Up The Receiver - Artison PORTRAIT System Owner's Manual

Right Center
Stage Tweeter
Right Channel
Right
Top
Rear
Stereo Set-Up
+)
•
Amplifier
L
-..J~~~==
1+1
Left
Left Center
Stage Tweeter
Left Channel
Diagram6A
Attaching The Grilles
23. Attach the grilles by aligning the top of the grille with the top of the display and pressing
the grille's pins into the small cups on the front of the speaker. Note: The grilles can fit
tight when the system is new, it may be necessary to hold the speakers from the back
while pressing the grilles into place.
Setting Up The Receiver
24. The DOLBY HIGH PASS SETIING in most receivers is 80Hz when set in the SMALL
SPEAKER position. We have optimized both the LCR Front speakers and the LRS Surround
speakers for this setting. The receiver should be set so that the main speakers operate in
this mode. This will provide the dynamics needed for movies and will allow the system to
be played at high levels with very low distortion.
Adjusting The Settings On The LCR Speakers
There are two switches on each LCR speaker which allow you to adjust the acoustics. One
switch for the Left / Right Channel Stage Tweeter and the other for the Center Channel
Presence Control. Both switches are located on their respective input terminal cups on the
back of each LCR.
Stage Tweeter Settings
Turning on the Stage Tweeter widens the sound stage. The decision to use the Stage Tweeter is
dependant on individual taste and on the particular installation.
25. Adj usti ng the Stage Tweeter
• The switch turns the tweeter on and off. In most installations, the Stage Tweeter should
be left on.
• Since it is difficult to see the markings when the system is mounted, you can tell that
the switch is in the on position by feel. When the switch is set towards the outside of the
system (away from the display) it is in the on position.
