10. Remove the Main Bracket mounting knobs by twisting them in a counter-clockwise direction.

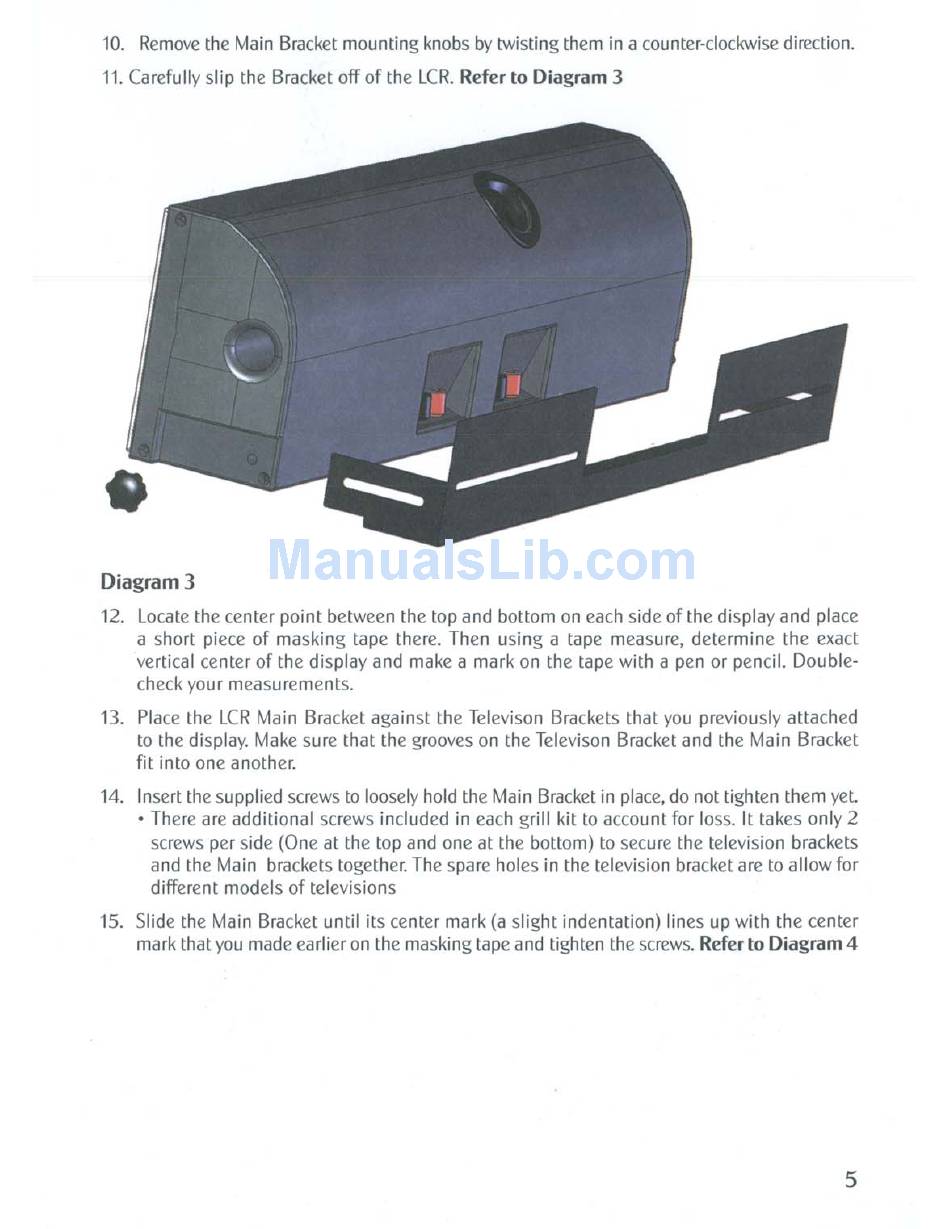

11. Carefully slip the Bracket off of the LCR. Refer to Diagram 3
Diagram
3
12. Locate the center point between the top and bottom on each side of the display and place
a short piece of masking tape there. Then using a tape measure, determine the exact
vertical center of the display and make a mark on the tape with a pen or pencil. Double-
check your measurements.
13. Place the LCR Main Bracket against the Televison Brackets that you previously attached
to the display. Make sure that the grooves on the Televison Bracket and the Main Bracket
fit into one another.
14. Insert the supplied screws to loosely hold the Main Bracket in place, do not tighten them yet
• There are additional screws included in each grill kit to account for loss. It takes only 2
screws per side (One at the top and one at the bottom) to secure the television brackets
and the Main brackets together. The spare holes in the television bracket are to allow for
different models of televisions
15. Slide the Main Bracket until its center mark (a slight indentation) lines up with the center
mark that you made earlier on the masking tape and tighten the screws. Refer to Diagram 4
