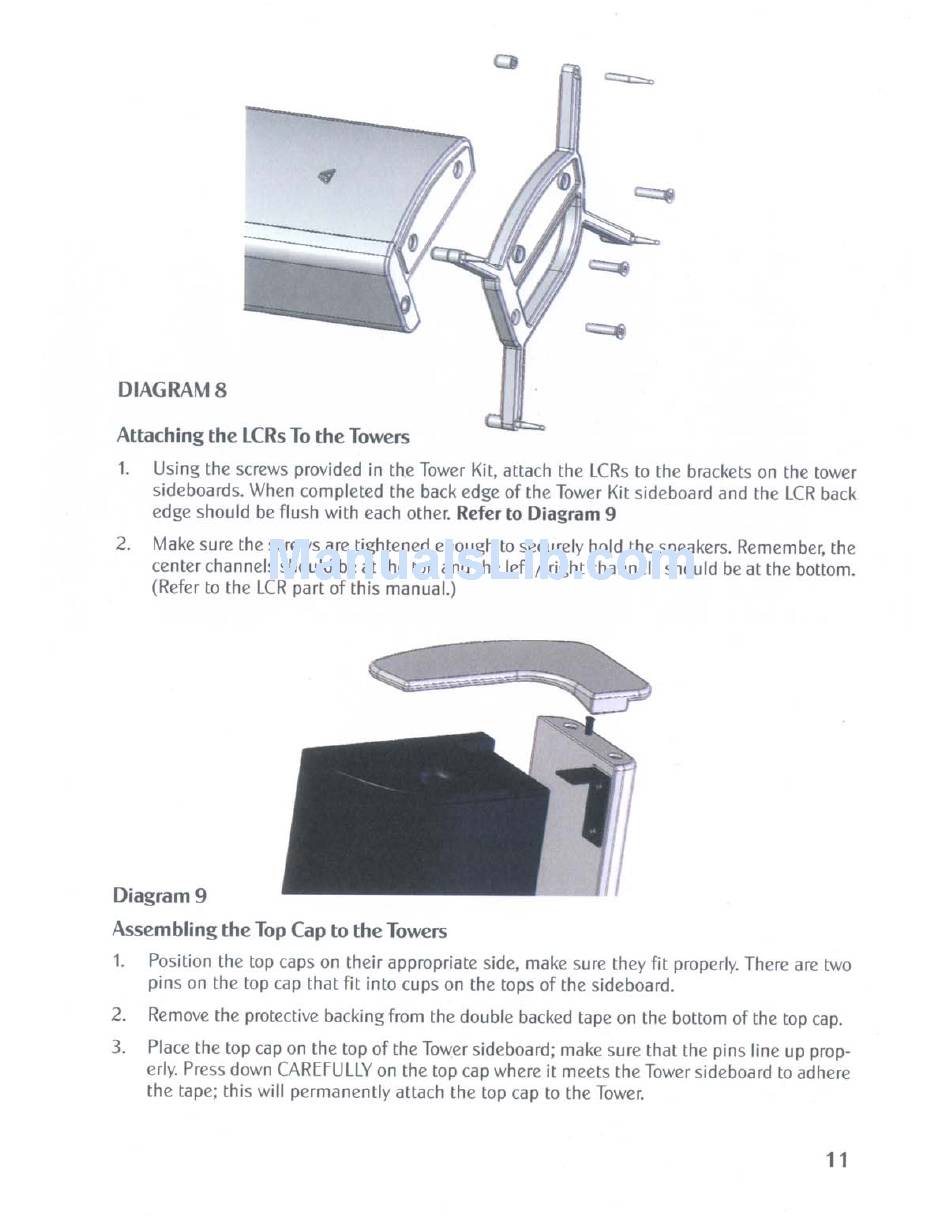

DIAGRAM 8
Attaching the LCRs To the Towers
1.
Using the screws provided in the Tower Kit, attach the LCRs to the brackets on the tower
sideboards. When completed the back edge of the Tower Kit sideboard and the LCR back
edge should be flush with each other. Refer to Diagram 9
2. Make sure the screws are tightened enough to securely hold the speakers. Remember, the
center channels should be at the top and the left / right channels should be at the bottom.
(Refer to the LCR part of this manual.)
Diagram 9
Assembling the Top Cap to the Towers
1. Position the top caps on their appropriate side. make sure they fit properly. There are two
pins on the top cap that fit into cups on the tops of the sideboard.
2. Remove the protective backing from the double backed tape on the bottom of the top cap.
3. Place the top cap on the top of the Tower sideboard; make sure that the pins line up prop-
erly. Press down CAREFULLY on the top cap where it meets the Tower sideboard to adhere
the tape; this will permanently attach the top cap to the Tower.
