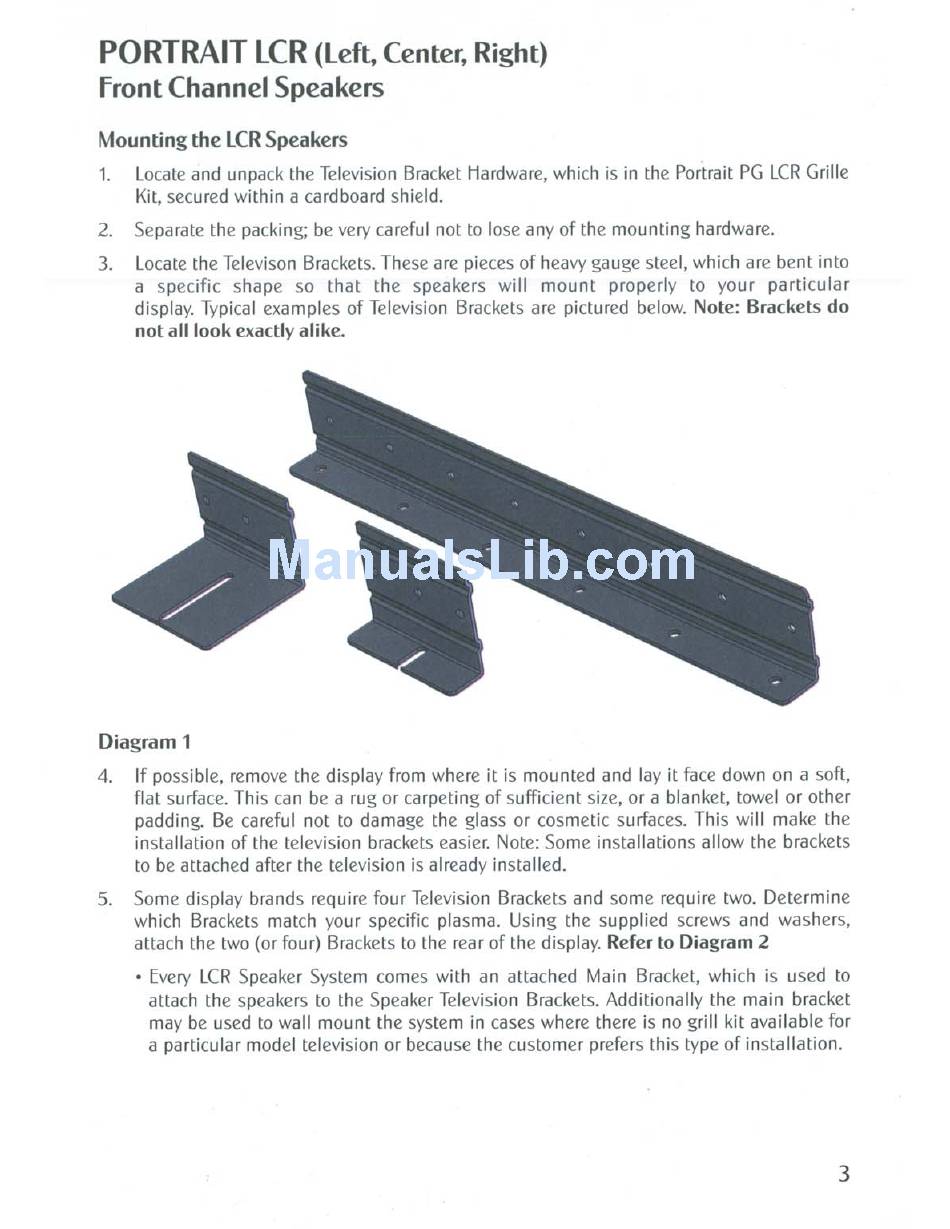

Artison PORTRAIT System Owner's Manual page 3

PORTRAIT LCR
(Left, Center, Right)
Front Channel Speakers
Mounting the LCR Speakers
1. Locate and unpack the Television Bracket Hardware, which is in the Portrait PG LCR Grille
Kit, secured within a cardboard shield.
2. Separate the packing; be very careful not to lose any of the mounting hardware.
3. Locate the Televison Brackets. These are pieces of heavy gauge steel, which are bent into
a specific shape so that the speakers will mount properly to your particular
display. Typical examples of Television Brackets are pictured below. ote: Brackets do
not all look exactly alike.
Diagram 1
4. If possible, remove the display from where it is mounted and lay it face down on a soft,
flat surface. This can be a rug or carpeting of sufficient size. or a blanket, towel or other
padding. Be careful not to damage the glass or cosmetic surfaces. This will make the
installation of the television brackets easier. ote: Some installations allow the brackets
to be attached after the television is already installed.
5. Some display brands require four Television Brackets and some require two. Determine
which Brackets match your specific plasma. Using the supplied screws and washers.
attach the two (or four) Brackets to the rear of the display. Refer to Diagram 2
• Every LCR Speaker System comes with an attached Main Bracket, which is used to
attach the speakers to the Speaker Television Brackets. Additionally the main bracket
may be used to wall mount the system in cases where there is no grill kit available for
a particular model television or because the customer prefers this type of installation.
