Summary of Contents for Craig CHT912

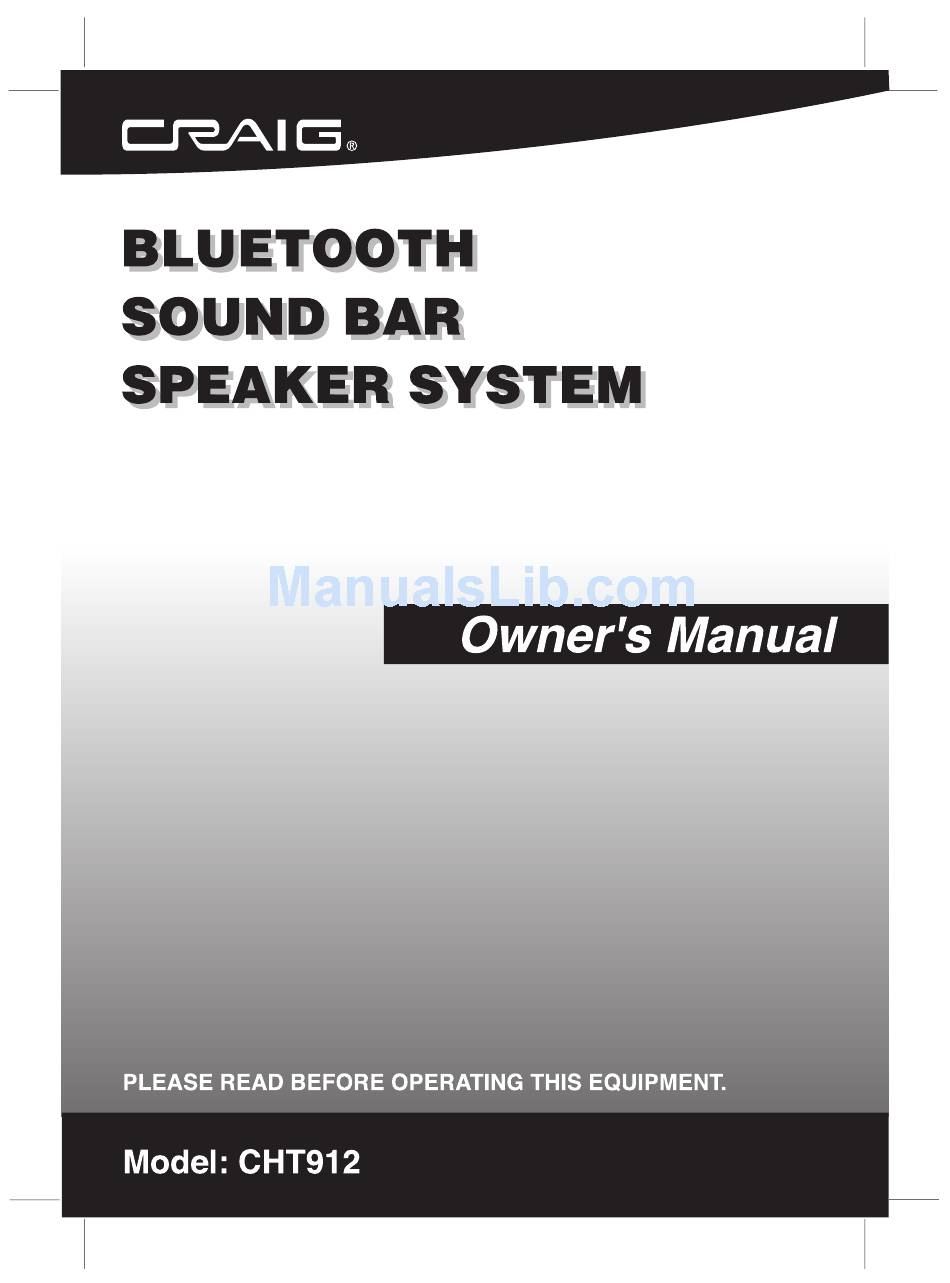

- Page 1 Meijer.com...
- Page 2 Meijer.com FCC Warnings WARNING:Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 3 Meijer.com...
- Page 4 Meijer.com Insert the small plug from the supplied AC/DC adapter to the DC in jack on the unit. Insert the AC/DC adapter to DC in jack on the unit. AC/DC adapter 1. Placing on the table Ventilation When placing the Sound Bar on an entertainment center, bookshelf, or any type of enclosed space, be sure to allow at least 2-3 inches of space around the Sound Bar for ventilation.
- Page 5 Meijer.com 2.1. Mounting on the wooden wall You should use 2 pieces of EVA 2 pieces of short screws (Included) (Included) 1. Mark the position of the mounting screws on the wall using a pencil. 2. Drill through the EVA with screw directly into the marks that you have made on the wall. 3.
- Page 6 Meijer.com 1. Mark the position of the mounting screws on the wall using a pencil. 2. Drill 2 x 0.315” holes by a powerful electric drill. 3. Insert the supplied 2 plastic tubs into the holes by hammer. 4. Drill through the EVA with screws directly into the holes. 5.
- Page 7 Meijer.com 1. REMOTE SENSOR: Ensure this area is not covered or blocked by any object. 2. STANDBY button: Press to turn the speaker bar off or on. 3. SOURCE button: Press repeatedly to select the input sound to BT (Bluetooth receiver), AUX, LINE in or FM.
- Page 8 Meijer.com 1. STANDBY button: Press to turn the unit on or off. 2. BLUETOOTH button: Press to switch to Bluetooth mode. 3. SCAN button: Press to scan for available radio stations in FM Radio mode, then store in the memory list automatically. Total 30 stations can be stored. 4.
- Page 9 Meijer.com To replace the button cell: 1. Push the tab, then slide out the battery tray as the figure on the right. 2. Replace the old button cell by a new CR 2025 button cell as the polarity markings on the remote OPEN control.
-
Page 10: Listening From Line In Jacks
Meijer.com OPERATION: Listening from AUX IN jacks: 1. Connect the Aux out jacks from the external audio player (such like DVD player, TV, VCR …etc.) to the AUX IN jacks on the rear of Sound Bar by the supplied RCA connection cable as the figure below: 2. -
Page 11: Bt Pairing And Playback
BT Player (For details pairing procedures, please refer to the user’s manual of your BT player.). C. When the external BT player searched the Sound Bar, our model number “CHT912” will appear on the display of external BT player. -
Page 12: Troubleshooting
Meijer.com Problem What to do No power Check the connection of the AC/DC adapter between the speaker and wall outlet. Check that the volume control is NOT at minimum No sound Check that it is NOT set to mute. Inspect or replace the battery. The remote control won' t work Make sure there are no obstacles obscuring the... - Page 13 Meijer.com Power Source :……………………. 18V 2.5A , Power Source of Remote Control:……DC 3V, 1X CR 2025 battery (Included) Power Consumption:…………………………………….>50W Audio Power : Woofer ………………………………….... 30W Left Channel ……………………………...10W Right Channel………………………….....10W Radio Coverage …..………………………....…. FM 87.5-108.0 MHz Impedance of Speakers : Woofer ……………………………….…..…...
- Page 14 Under no circumstance shall Craig be liable for any loss or consequential damage arising out of the use of this product. This warranty gives specific legal rights. However, you may have other rights which may vary from state to state.
