Summary of Contents for Hoshizaki SRK-8H/3
-

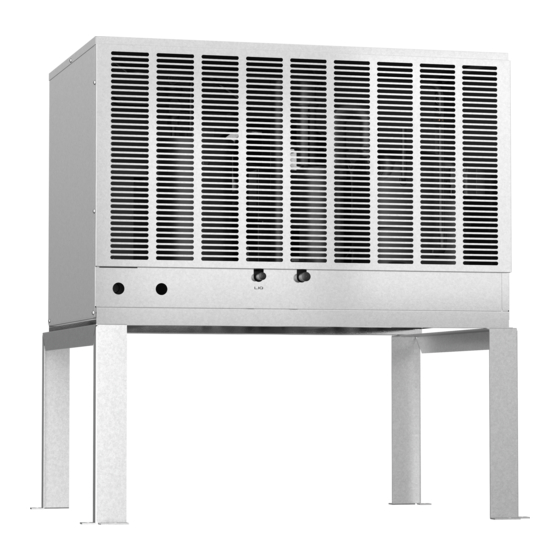

Page 1: Condensing Unit
Hoshizaki America, Inc. “A Superior Degree of Reliability” www.hoshizaki.com Condensing Unit Serenity Series Models SRK-8H/3 PARTS LIST Number: 71325 Issued: 5-17-2011... -
Page 2: Table Of Contents
Auxiliary Codes ... 3 Note About Ordering Parts ... 3 A. Condensing Unit and Refrigeration Circuit ... 4 B. Control Box Assembly ... 6 SRK-8H ... 6 SRK-8H3 ... 7 C. Label Location ... 8 D. Accessories & Packaging ... 9 CONTENTS... -
Page 3: Auxiliary Codes
Auxiliary Codes SRK-8H SRK-8H3 Auxiliary Code Breakdown The auxiliary code is the first two characters in the serial number. The first character indicates the year. Years progress or regress in alphabetical order. The series runs from "A" through "V" and the letters "I" and "O" are skipped. The second character indicates significant part changes within a year. -
Page 4: Condensing Unit And Refrigeration Circuit
A. Condensing Unit and Refrigeration Circuit SRK-8H, SRK-8H3 18 18a... - Page 5 Title: A.Condensing Unit and Refrigeration Circuit Index Description Condensing Unit Order Assembly Parts Individually Right Side Panel Left Side Panel Top Panel Louver Panel Front Frame Shroud Fan Motor Bracket Hex Head Bolt w/Washer Fan Motor Split Lock Washer Hex Nut Flat Washer Fan Blade Control Box Cover...
-
Page 6: Control Box Assembly
B. Control Box Assembly SRK-8H Title: B. Control Box Assembly Model: SRK-8H Index Description Control Box Assembly Order Assembly Parts Individually Start Capacitor Run Capacitor Fan Motor Capacitor Start Relay Terminal Block Fuse Holder Fuse Strap Compressor Relay Ground Screw Square Washer Material or Model Number Part Number... -
Page 7: Srk-8H3
B. Control Box Assembly SRK-8H3 Title: B. Control Box Assembly Index Description Control Box Assembly Order Assembly Parts Individually Ground Screw Square Washer Fan Motor Capacitor Magnetic Contactor Main Transformer Fuse Fuse Holder Slide Switch Terminal Block Model: SRK-8H3 Material or Model Number Part Number 3A6458A01 433304-02... -
Page 8: Label Location
C. Label Location SRK-8H, SRK-8H3 Title: C. Label Location Model: SRK-8H, SRK-8H3 Index Description Label Location Order Assembly Parts Individually Nameplate Fuse Label Wiring Label Warning Tag: Electrical Connection Warning Label (F) Warning Label (H) Penguin-HA-R Label Material or Model Number Part Number SRK-8H 2A6409A01 SRK-8H3... -
Page 9: Accessories & Packaging
D. Accessories & Packaging SRK-8H, SRK-8H3 Title: D. Accessories & Packaging Index Description Hex Head Bolt w/Washer Hex Nut Packaging Model: SRK-8H, SRK-8H3 Material or Model Number Part Number 2A3166G01 8×16, SS 7B0230816 M8, SS 7N12-0800 2A6281A01 Required Number...
