Hoshizaki SRK-14H Parts List
Serenity series
Hide thumbs
Also See for SRK-14H:
- Service manual (56 pages) ,
- Instruction manual (29 pages) ,
- Specifications (2 pages)
Related Manuals for Hoshizaki SRK-14H
Summary of Contents for Hoshizaki SRK-14H
-
Page 1: Condensing Unit

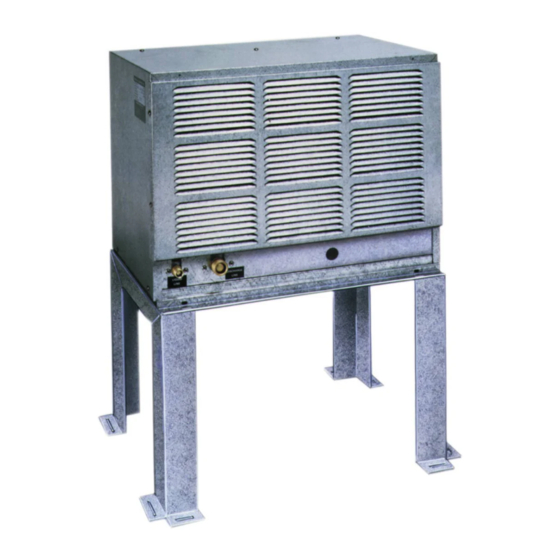

Hoshizaki America, Inc. “A Superior Degree of Reliability” www.hoshizaki.com Condensing Unit Serenity Series Model SRK-14H PARTS LIST Number: 71280 Issued: 3-28-2008... -
Page 2: Table Of Contents
CONTENTS Auxiliary Codes ... 3 Note About Ordering Parts ... 3 Material Abbreviations ... 4 A. Condensing Unit ... 5 B. Refrigeration Circuit ... 7 C. Control Box Assembly ... 10 D. Label Location ... 11 E. Accessories ... 1... -
Page 3: Auxiliary Codes
Auxiliary Codes SRK-14H January 008 Auxiliary Code Breakdown Designates the year. "K" indicates the year 000. Years progress or regress in alphabetical order. "J" is 1999, "L" is 001, "M" is 00, and so on. The letters "I" and "O" were skipped. -
Page 4: Material Abbreviations
Material Abbreviations ALUMINUM Aluminum COPPER Copper PLASTIC Acrylonitrile -butadiene - styrene Polyacetal Ethylene vinyl acetate Polyamide = Nylon Polycarbonate Polyethylene Polyester PETP Polyethylene terephthalate = Tetlon Polypropylene Polystyrene PTFE Polytetrafluoroethylene = Teflon Polyurethane Polyvinyl chloride RUBBER Vinyl Nitrile EPDM EP rubber Nitrile butadiene rubber Natural rubber Neoprene... -
Page 5: Condensing Unit
A. Condensing Unit SRK-14H 19 19a 7b 7c 8 11 11a 1 1a 15 15a 14 14a... - Page 6 Title: A. Condensing Unit Model: SRK-14H Index Description Refrigeration Circuit T Screw Control Box Assembly Label Location Base Junction Box T Screw Shroud T Screw Shroud (C) T Screw Access Panel T Screw Fan Motor Bracket Hex Bolt Assembly (LF)
-
Page 7: Refrigeration Circuit
B. Refrigeration Circuit SRK-14H 7 7a 8 9 33 10 10a 1b 1c 11 11a... - Page 8 B. Refrigeration Circuit SRK-14H...
- Page 9 Title: B. Refrigeration Circuit Model: SRK-14H Index Description Compressor Grommet Spacer Bolt Assembly Condenser T Screw Suction Accumulator Spacer - Accumulator Hex Head Bolt w/Washer(LF) Receiver Tank Hex Head Bolt w/Washer(LF) Valve Body - Line Valve Body - Hot Gas...
-
Page 10: Control Box Assembly
Title: B. Refrigeration Circuit Model: SRK-14H Index Description Shutoff Valve Bracket Shutoff Valve (access) Coupling (Male) Tube Holder - L Coupling Shutoff Valve Bracket Insulation Tube Material or Model Number Part Number GS; See "A. 4A3898-01 Condensing Unit," B1, for mounting... -
Page 11: Label Location
C. Control Box Assembly SRK-14H Title: C. Control Box Assembly Model: SRK-14H Index Description Control Box Capacitor - Start Capacitor - Run Strap T Screw Starter (Relay) T Screw Capacitor T Screw Terminal Block Pan Head Screw Magnetic Contactor T Screw... -
Page 12: D. Label Location
D. Label Location SRK-14H Title: D. Label Location Model: SRK-14H Index Description Label - Penguin - HA (R) Caution Label (F) Caution Label (H) Wiring Label Nameplate Instruction Sheet Tag Warning: Electrical Connection Label - 404A Material or Model Number Part Number... -
Page 13: Accessories
E. Accessories SRK-14H Title: E. Accessories Model: SRK-14H Index Description Hex Head Bolt w/ Washer Hex Nut Bushing Packaging Material or Model Number Part Number 3A3716G01 8×16, SS 7B030816 M8, SS 7N1-0800 SR-7P- 4047-07 A4101A01 1a 1b Required Number...
