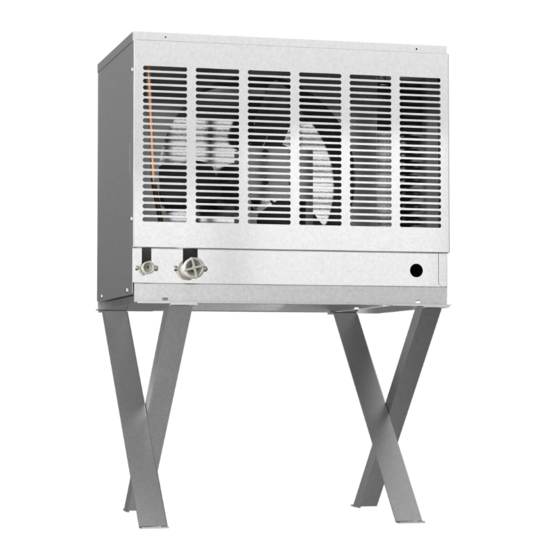

- Page 1 Hoshizaki America, Inc. “A Superior Degree of Reliability” www.hoshizaki.com Remote Condenser Unit Model URC-5F PARTS LIST Number: 71294 Issued: 12-16-2008...
-
Page 2: Table Of Contents
CONTENTS Auxiliary Codes ... 3 Note About Ordering Parts ... 3 Material Abbreviations ... 4 A. Condenser Unit ... 5 B. Junction Box ... 7 C. Accessories & Packaging ... 8... -
Page 3: Auxiliary Codes
Auxiliary Codes URC-5F April 2006 January 2007 January 2008 Auxiliary Code Breakdown Designates the year. "K" indicates the year 2000. Years progress or regress in alphabetical order. "J" is 1999, "L" is 2001, "M" is 2002, and so on. The letters "I" and "O" were skipped. Designates significant part changes within the same year for this model. -
Page 4: Material Abbreviations
Material Abbreviations ALUMINUM Aluminum COPPER Copper PLASTIC Acrylonitrile -butadiene - styrene Polyacetal Ethylene vinyl acetate Polyamide = Nylon Polycarbonate Polyethylene Polyester PETP Polyethylene terephthalate = Tetlon Polypropylene Polystyrene PTFE Polytetrafluoroethylene = Teflon Polyurethane Polyvinyl chloride RUBBER Vinyl Nitrile EPDM EP rubber Nitrile butadiene rubber Natural rubber Neoprene... -
Page 5: A. Condenser Unit
A. Condenser Unit URC-5F R-5, S-5, T-5 29 29a 18 18a 27 27a 28 28a 11 11a 15 15a 4a 4b 4c 16 16a 26 26a... - Page 6 Title: A. Condenser Unit Model: URC-5F Index Description Junction Box Truss Head Screw Unit Base Condenser T2 Screw Shroud T2 Screw Fan Motor Flat Washer Split Lock Washer Hex Nut Fan Blade Fan Motor Bracket Hex Head Bolt w/Washer (LF) CP Regulator (Headmaster) "C"...
-
Page 7: B. Junction Box
B. Junction Box URC-5F R-5, S-5, T-5 Title: B. Junction Box Model: URC-5F Index Description Junction Box (A) Bushing Bushing Capacitor T2 Screw Material or Model Number Part Number 3A0170-01 OCB-1000 428394-05 SR-30-1 420472-03 10.0MFD, 250V 443192-01 4×10, SS 7P32-0410 Required Number... -
Page 8: C. Accessories & Packaging
C. Accessories & Packaging URC-5F R-5, S-5, T-5 Title: C. Accessories & Packaging Index Description Hex Bolt Hex Nut T2 Screw Packaging Model: URC-5F Material or Model Number Part Number 3A1704G01 8×16, SS 7B0230816 M8, SS 7N12-0800 4×8, SS 7P32-0408 2A0054A07 Required Number...
