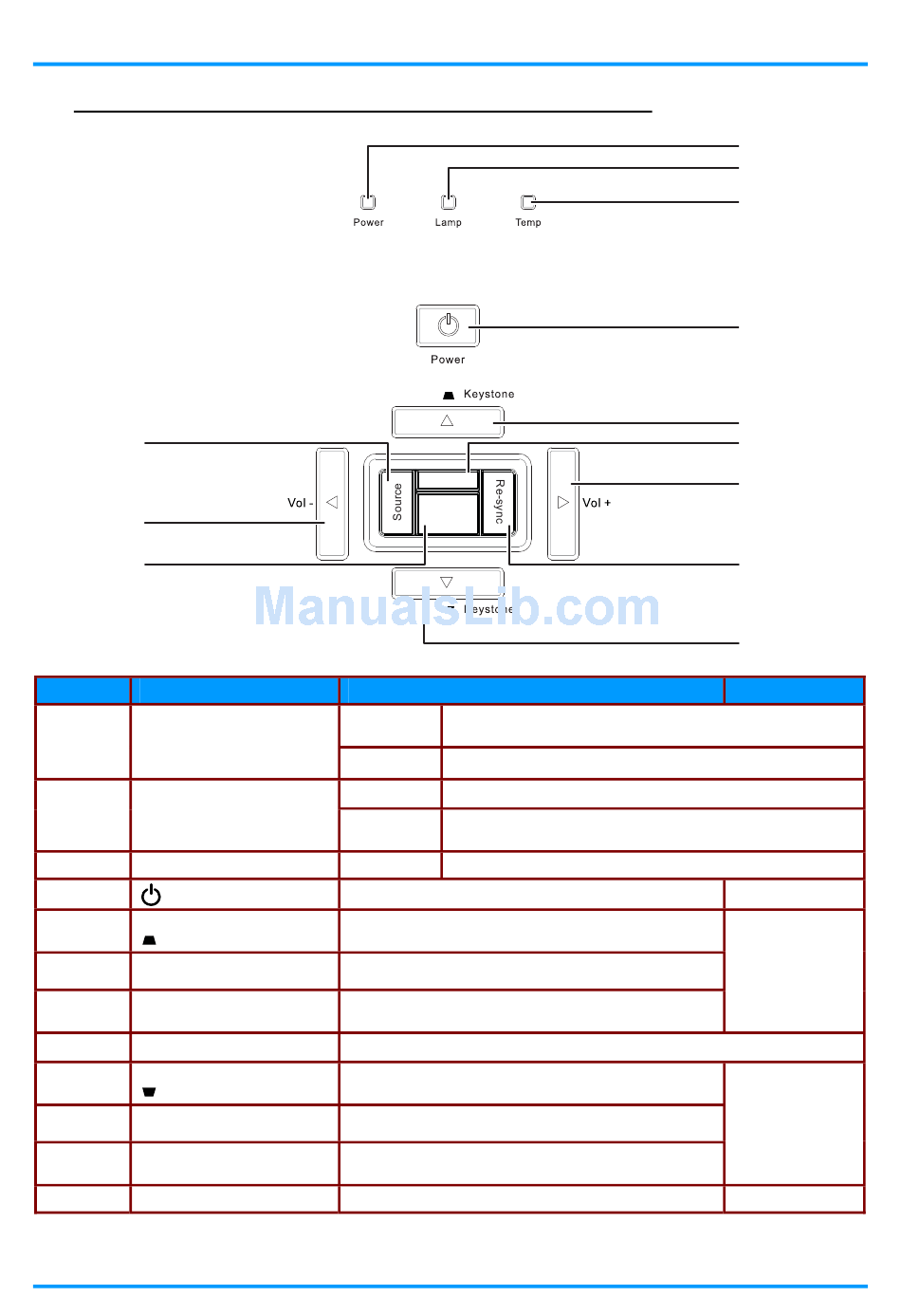

Top view—On-screen Display (OSD) buttons and LEDs
12
11
10
I L
TEM ABEL
Power LED
1.
Lamp LED
2.
Temp LED
3.
4. (Power button)
▲ (Up cursor) /
5.
Keystone
Menu
6.
► (Right cursor) /
7.
Vol+
Re-sync
8.
▼ (Down cursor) /
9.
Keystone
Enter
10.
◄ (Left cursor) /
11.
Vol-
Source
12.
Menu
Enter
D
ESCRIPTION
Solid
Power On / Standby
Green
Off Power Off (AC Off)
Solid Red The lamp is powered on.
Flashing The lamp is warming up or cooling down.
Red (see LED Error Messages on page 33)
Solid Red Error code (see LED Error Messages on page 33)
Turn the projector On or Off.
Navigate the OSD
Quick Menu – For Keystone
Open and exit OSD menus
Navigate and change settings in the OSD
Quick Menu – For Volume
Optimize image size, position, and resolution
Navigate the OSD
Quick Menu – For Keystone
Enter or confirm highlighted OSD menu item
Navigate and change settings in the OSD
Quick Menu – For Volume
Navigate and select sources.
