CPAP with SoftX™ Model number: ISP3000 USER: Before using the CPAP, read this manual and save for future reference. DEALER: This manual must be given to the end user. For more information regarding Invacare products, parts, and services, please visit www.invacare.com...
Invacare products are specifically designed and manufac- tured for use in conjunction with invacare accessories. accessories designed by other manufacturers have not been tested by invacare and are not recommended for use with invacare products. NOTE: Updated versions of this manual are available on www.invacare.com.
Treatment Using Therapy Mode..........27 Optional Ramp Therapy Delay Time Feature......28 Changing the RAMP Timer............29 Changing the SoftX Setting............30 Treatment Using Supplemental Oxygen........31 After the Treatment................. 32 SECTION 8—TRAVELING INFORMATION ..33 Adjusting the Altitude Setting............33 Part No 1110559 Invacare® Polaris™EX™...
Page 4
TABLE OF CONTENTS SECTION 9—MAINTENANCE ......35 Daily Cleaning ..................35 Periodic Cleaning................36 Cleaning/Replacing the Air Filter ........... 36 SECTION 10—ACCESSORIES ......38 SECTION 11—TROUBLESHOOTING ....39 LIMITED WARRANTY ........42 Invacare® Polaris™EX™ Part No 1110559...
SECTION 1—GENERAL GUIDELINES SECTION 1—GENERAL GUIDELINES To ensure the safe operation of the Invacare Polaris EX, the instructions in this manual MUST be followed. WARNING SECTION 1 - GENERAL GUIDELINES contains important information for the safe operation and use of this product.
DO NOT smoke or have an open flame in any room where oxygen is used. To prevent oxygen accumulation within the device and tubing which may create a risk of fire, the oxygen flow MUST be turned off when the device is not operating. Invacare® Polaris™EX™ Part No 1110559...
Humidifier or the Poseidon™Passover Humidifier. If using the Poseidon Passover Humidifier or a humidifier not manufactured by Invacare, it MUST be placed at a level below the level of the Polaris EX CPAP unit. This will prevent accidental drainage of water into the unit, which could result in electrical shock or unit malfunction.
NEVER place the power cord near or in contact with HEATED or HOT surfaces. ALWAYS disconnect the power cord plug before cleaning. NEVER drop or insert any object into any opening or hose. NEVER lubricate. This unit is oil-less. Invacare® Polaris™EX™ Part No 1110559...
Page 9
Sleep Apnea (OSA) treatment physician is contacted. DO NOT stop your CPAP treatment without consulting your physician. If you experience any of the following symptoms during the course of your CPAP treatment, consult your physician IMMEDIATELY: • Headache • Chest pain Part No 1110559 Invacare® Polaris™EX™...
Page 10
Rebreathing of exhaled air for longer than several minutes can in some circumstances lead to suffocation. This warning applies to most models of CPAP machines. * Ports may be incorporated in the mask or in connectors that are near the mask. Invacare® Polaris™EX™ Part No 1110559...
Page 11
• The mask should only be worn when it is connected to the CPAP unit and the unit is turned on with the therapy mode activated. • DO NOT block, seal, or cover the exhalation ports of your mask. Part No 1110559 Invacare® Polaris™EX™...

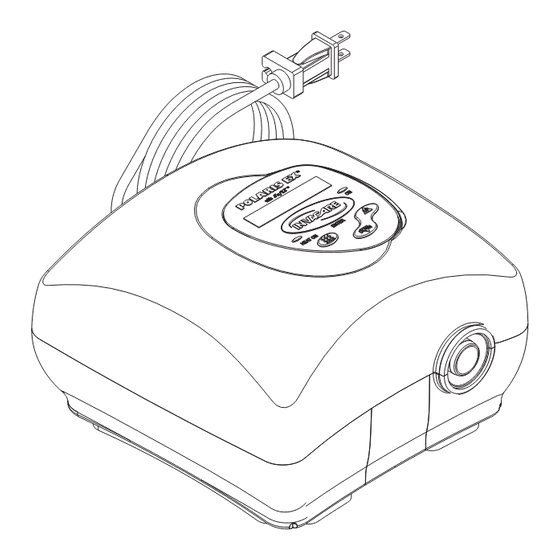

Refer to Accessories on page 38, for details, accessories and replacement parts available for use with the Polaris EX CPAP system. NOTE: A mask and headgear are needed in order to use this system. FIGURE 2.1 Polaris EX CPAP Unit Invacare® Polaris™EX™ Part No 1110559...
Storage: –4 to 158°F (–20 to 70°C) Humidity: Operating: up to 95% RH (non-condensing) Storage: up to 95% RH (non-condensing) Altitude: –300 to 6,000ft. (–91 to 1830m) AIR TUBING Construction: Smooth bore flexible plastic Length: 6ft. (2m approx.) (22mm ID) Part No 1110559 Invacare® Polaris™EX™...
Page 14
SECTION 3—TYPICAL PRODUCT PARAMETERS REGULATORY COMPLIANCE ETL approval as complying with: UL1431Personal Hygiene and Health Care appliances UL1097 NOTE: The manufacturer reserves the right to change these specifications without notice Invacare® Polaris™EX™ Part No 1110559...
The air pressure varies according to individual needs. Your physician will prescribe your set pressure which is determined during a sleep study and set by the sleep center staff or your home healthcare provider. Part No 1110559 Invacare® Polaris™EX™...
These three (3) settings allow the user to adjust the extent of the pressure drops, with the highest setting resulting in the greatest drop in pressure. This allows the user to choose the amount of pressure relief that offers them the greatest level of comfort. Invacare® Polaris™EX™ Part No 1110559...
Some people experience a continuing dryness of the nose, mouth, or throat when using nasal CPAP therapy, particularly during the winter months. Invacare recommends the Invacare Polaris EX Heated Humidifier or the Invacare Poseidon Passover Humidifier to be used with Polaris EX CPAP to relieve these symptoms.
11. The use of CPAP therapy may be contraindicated when sinus or inner ear infections are present. If these conditions are present, contact your physician regarding the use of CPAP therapy. Invacare® Polaris™EX™ Part No 1110559...
Page 19
O. Also, in the unlikely event of certain fault conditions, a maximum static pressure of 25cm H O is possible. If this pressure could present risk to a patient, discontinue use of device with patient. Part No 1110559 Invacare® Polaris™EX™...
NOTE: DO NOT use extension cords. WARNING To ensure proper operation of the compliance clock, the Invacare Polaris EX CPAP should be left plugged in for 12 hours after initial programming. 5. If no button has been pressed for 30 seconds, the display intensity will diminish.
Page 22
Ensure long term maintenance and servicing of your purchase. Receive updates with product information, maintenance tips, and industry news. Invacare can contact you or your provider, if servicing is needed on your product. It will enable Invacare to improve product designs based on your input and needs.
Page 23
❏ No 11. User's Year of birth: _________________ If at any time you wish not to receive future mailings from us, please contact us at Invacare Corporation, CRM Department, 39400 Taylor Parkway, Elyria, OH 44035, or fax to 877-619-7996 and we will remove you from our mailing list.
HEATED HUMIDIFIER ON/OFF HUMIDIFIER Button UP OR INCREASE OR YES UP Button DOWN OR DECREASE OR NO DOWN Button CPAP Power ON CPAP POWER ON INDICATOR Light HEATED HUMIDIFIER ON Heat ON Light HEAT ON INDICATOR Part No 1110559 Invacare® Polaris™EX™...
WARNING A mask should NEVER be fully connected to the unit and worn while the CPAP unit is in the STANDBY mode. DO NOT attach the air tubing to the mask before treat- ment. Invacare® Polaris™EX™ Part No 1110559...
• Treatment with Optional Ramp Therapy Delay Time Feature on page 28. • Changing the RAMP Timer on page 29. • Changing the SoftX Setting on page 30. • Treatment Using Supplemental Oxygen on page 31. Part No 1110559 Invacare® Polaris™EX™...
C. The air pressure delivered by the Polaris EX CPAP unit is reduced and will gradually increase over the duration of the set delay time. 3. Connect the air tubing to the mask and begin therapy. Invacare® Polaris™EX™ Part No 1110559...
6. Press the up ( ) button to confirm the changes. The following message will be displayed for two (2) seconds, “CHANGES CONFIRMED!”, and the unit will exit to Standby mode. Part No 1110559 Invacare® Polaris™EX™...
“CHANGES IGNORED!”, and the unit will exit to Standby mode. NOTE: If no button is pressed for two (2) minutes or more, the unit automatically exits to Standby mode and no changes will be saved. Invacare® Polaris™EX™ Part No 1110559...
9. Proceed to the After the Treatment on page 32. NOTE: At a fixed flow rate of supplemental oxygen gas flow, the inhaled oxygen concentration will vary, depending upon the pressure settings, patient breathing pattern, mask selection, and the leak rate. Part No 1110559 Invacare® Polaris™EX™...
After the Treatment 1. Remove the mask and press the Enter button to return to Standby mode. 2. Remove the air tubing from the mask. 3. Proceed to Daily Cleaning in Maintenance on page 35. Invacare® Polaris™EX™ Part No 1110559...
3. The current altitude setting will appear on the display, use the up ( ) and down ( ) buttons to change the setting to either “YES” or “NO”. 4. Press the Enter button to accept the new setting. Part No 1110559 Invacare® Polaris™EX™...
Page 34
“CHANGES CONFIRMED!”, and the unit will exit to Standby mode. 8. Press the down ( ) button to cancel the changes. The following message will be displayed for two (2) seconds, “CHANGES IGNORED!”, and the unit will exit to Standby mode. Invacare® Polaris™EX™ Part No 1110559...
2. Disconnect the air tubing from the Polaris EX CPAP unit and hang the tubing and mask in a clean, dry location, avoiding exposure to direct sunlight, until the next use. Part No 1110559 Invacare® Polaris™EX™...
NOTE: If the Invacare Polaris EX Heated Humidifier is used, remove the water reservoir and follow the cleaning and maintenance procedures outlined in the user’s manual.
Page 37
NOTE: The air filter is subject to normal wear and tear and should be replaced every six (6) months. Check periodically for excessive wear and replace as necessary. Part No 1110559 Invacare® Polaris™EX™...
Invacare and are not recommended for use with Invacare products. If patient interfaces, other than those recommended by Invacare, are connected to the Polaris EX CPAP unit, the patient circuit pressure may be different from the thera- peutic pressure, consequently, reducing the effectiveness of treatment.
Press the Enter button to Therapy has not been activate therapy. Refer to initiated. Treatment Using Ther- apy Mode on page 28. Unit is malfunctioning Contact your home healthcare provider IMMEDIATELY. Part No 1110559 Invacare® Polaris™EX™...
Page 40
Error code “xxx” is Internal device error. Unplug power cord, wait displayed in LCD win- several seconds and dow and device is reconnect firmly. inoperative. If error message is still displayed, contact your home healthcare pro- vider IMMEDIATELY. Invacare® Polaris™EX™ Part No 1110559...
Page 41
SECTION 11—TROUBLESHOOTING NOTES Part No 1110559 Invacare® Polaris™EX™...
Upon receiving notice of an alleged defect in a product, Invacare will issue a serialized return authorization. It shall be the responsibility of the purchaser to pack the product(s) or part(s) in an appropriate manner to avoid shipping damage and return the product(s) or part(s), at the purchaser’s expense, to either...
Page 43
DAMAGED BY REASON OF REPAIRS MADE TO ANY COMPONENT WITHOUT THE SPECIFIC CONSENT OF INVACARE; PRODUCTS DAMAGED BY CIRCUMSTANCES BEYOND INVACARE’S CONTROL; OR PRODUCTS REPAIRED BY ANYONE OTHER THAN INVACARE OR AN AUTHORIZED INVACARE SERVICE CENTER. SUCH EVALUATION SHALL BE SOLELY DETERMINED BY INVACARE.
