QuickSpecs

Overview

Performance driven compute with storage density - ideal for enterprise applications. Industry leading performance, efficiency, capacity

and reliability. Enterprise enhanced design for all workloads with versatility for future requirements. A space conscious 2-processor

server with industry leading feature sets. Built to protect your investment and extend the life with reliability, accessibility and

serviceability features designed in.

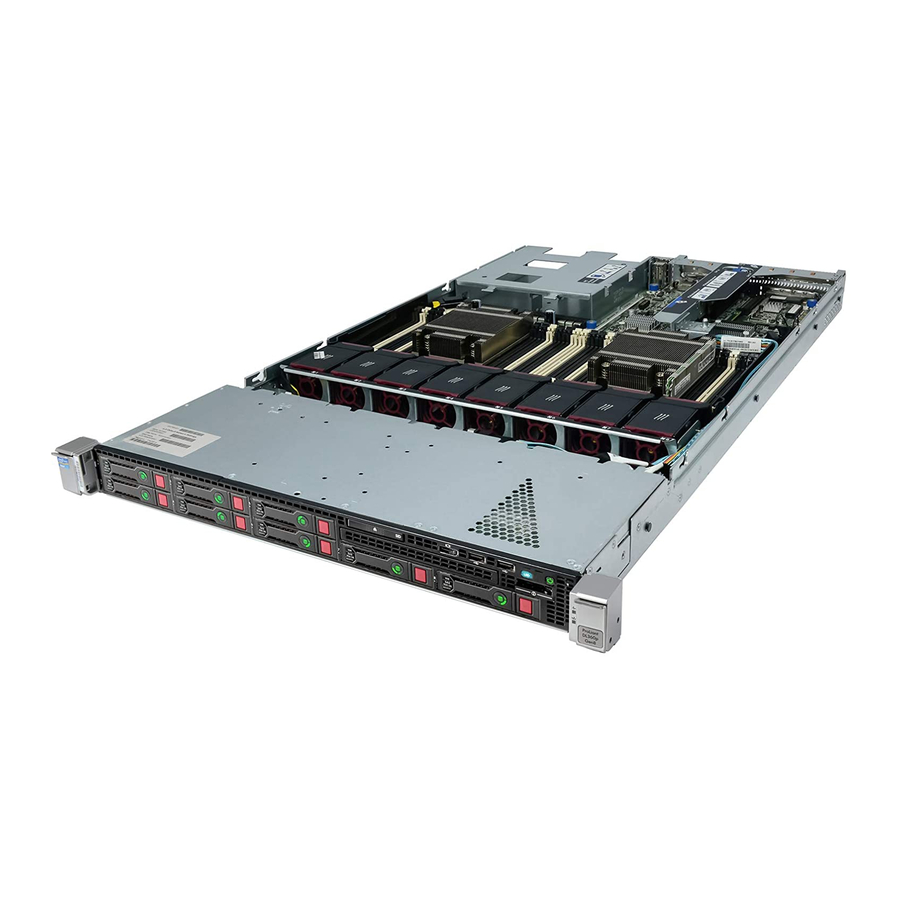

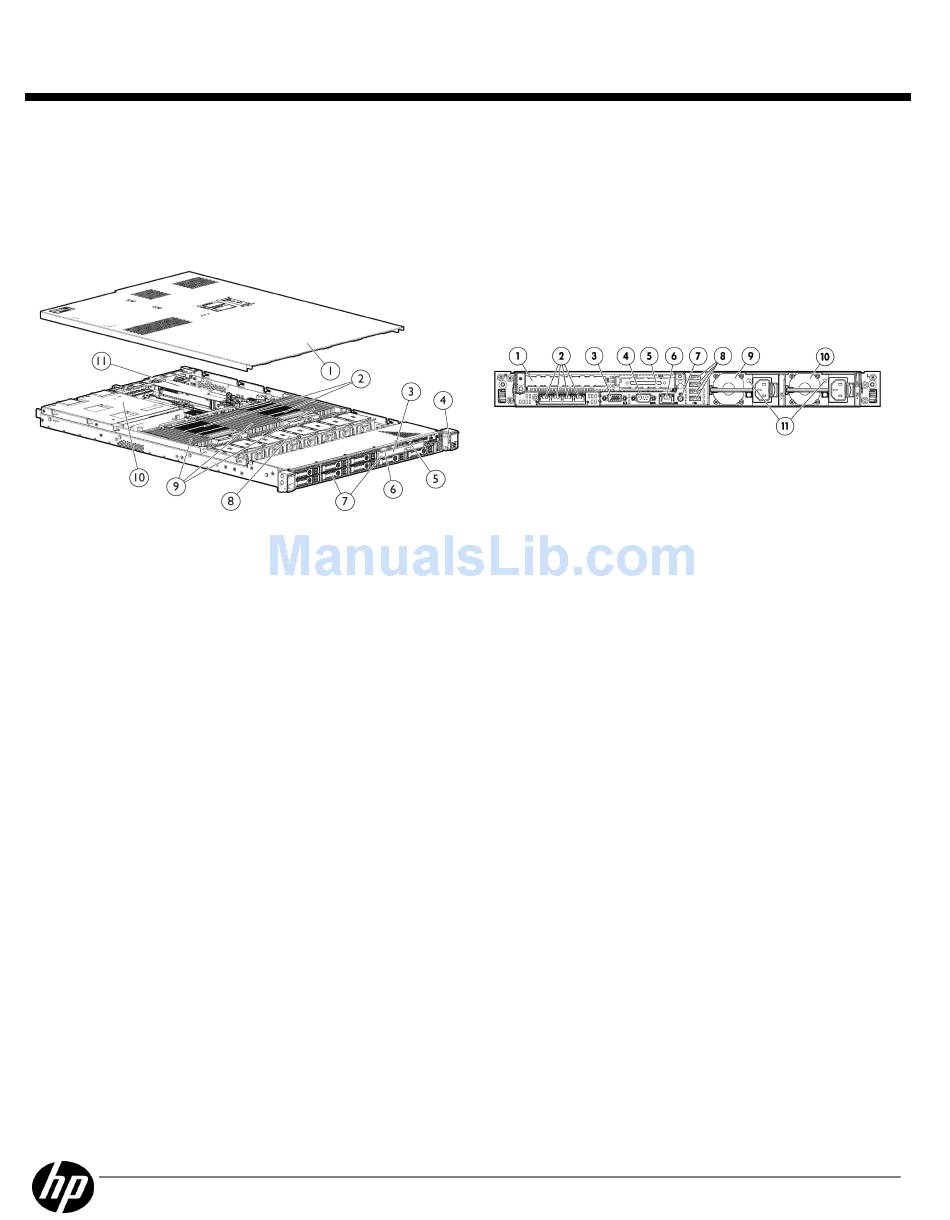

Front View:

Hood Cover

Up to two Intel® E5-2600 Series processors

Optical Disk Drive Bay

Active Health and Network Status LEDs

Video connector (requires Front Video Adapter Kit)

Slide-out System Insight Display (SID)

Hard Drive Bays

Removable hot-plug fan modules for easy serviceability

24 DIMM slots: DDR3 Registered (RDIMM), LRDIMM or

Unbuffered (UDIMM) memory

10.

Redundant Hot Plug Power Supplies (upgradeable option)

11.

Removable Riser Cage assembly for 2 x PCIe 3.0

Slots

DA - 14211

North America — Version 5 — April 19, 2012

HP ProLiant DL360p Generation 8 (Gen8)

Rear View:

PCIe 3.0 Full-height/half length x16 expansion slot

FlexibleLOM ports (Shown: 4 ports 1Gb each /Optional: 2

ports 10Gb each)

Video connector

Serial connector

PCIe 3.0 Low Profile x8 expansion slot

iLO Management Engine NIC connector

Unit ID LED/button

4 USB connectors

Power supply bay 2 (Shown populated: Optional Power

Supply for Redundant Power)

10.

Power supply bay 1 (Primary Power Supply)

11.

Power Supplies Health/Activity Indicators

Page 1

Table of Contents

Need help?

Do you have a question about the ProLiant DL360p and is the answer not in the manual?

Questions and answers

Summary of Contents for HP ProLiant DL360p
