7. SERVICE INFORMATION

7-1. Whole Unit Replacement
When the unit is exchanged as a Whole Unit (WHOLE UNIT, W/O POWER SUPPLY UNIT:
0009U22001 <i320>, take the following procedures:
1. Remove the AC adapter from the printer returned from the user.
2. Install the removed AC adapter in the whole unit.
3. Perform destination setting. (Refer to "4. SERVICE MODE" for details.)
4. Power off the whole unit, and confirm that the printer ready for shipment (with the paper lifting
plate of the ASF in the upper position).

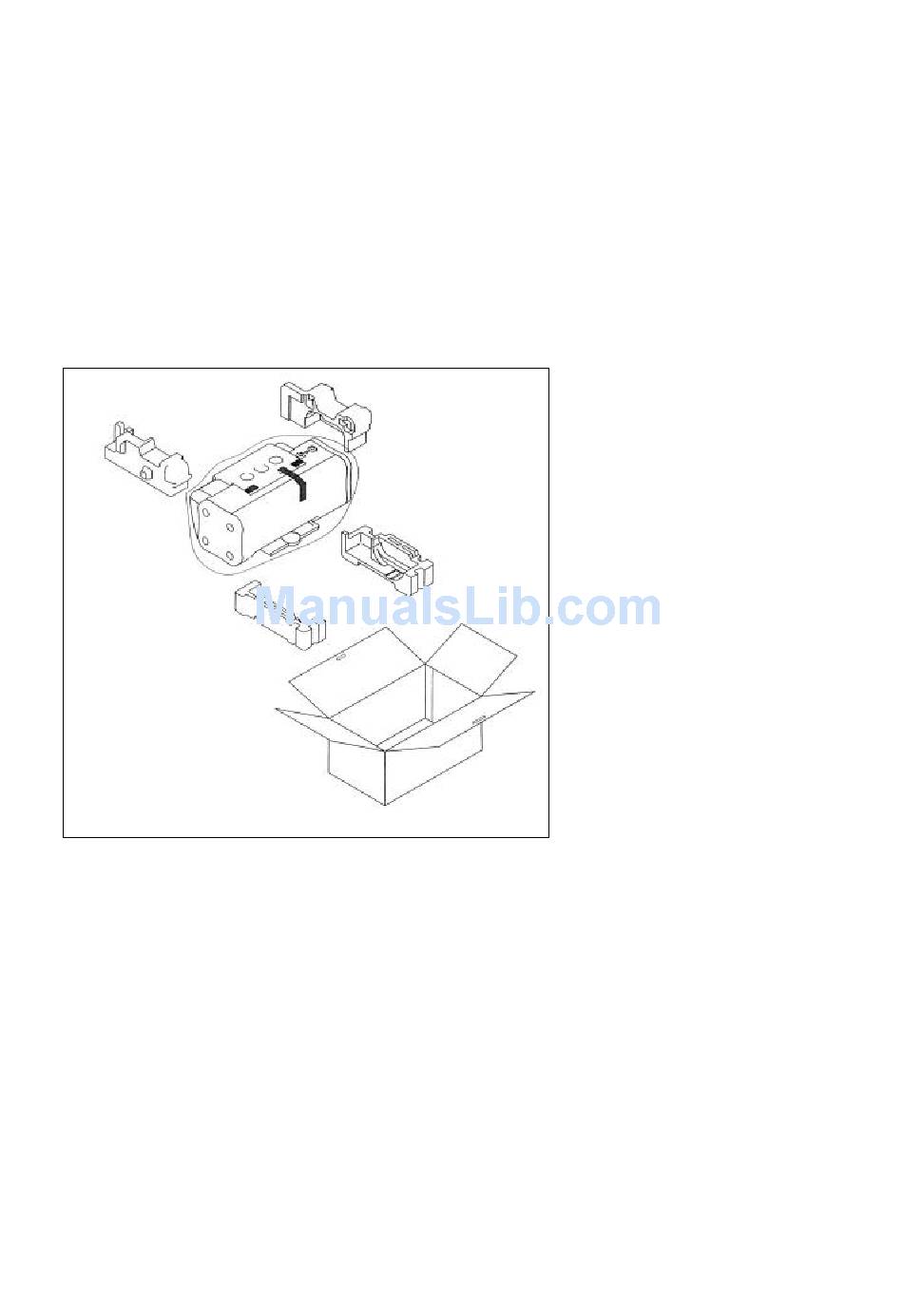

< Composition of WHOLE UNIT, W/O POWER SUPPLY UNIT >
Enclosed items:
- Printer unit (without I320's access cover
and AC adapter)
- Rating plate (for Asia and Oceania)
- Packing material
11
