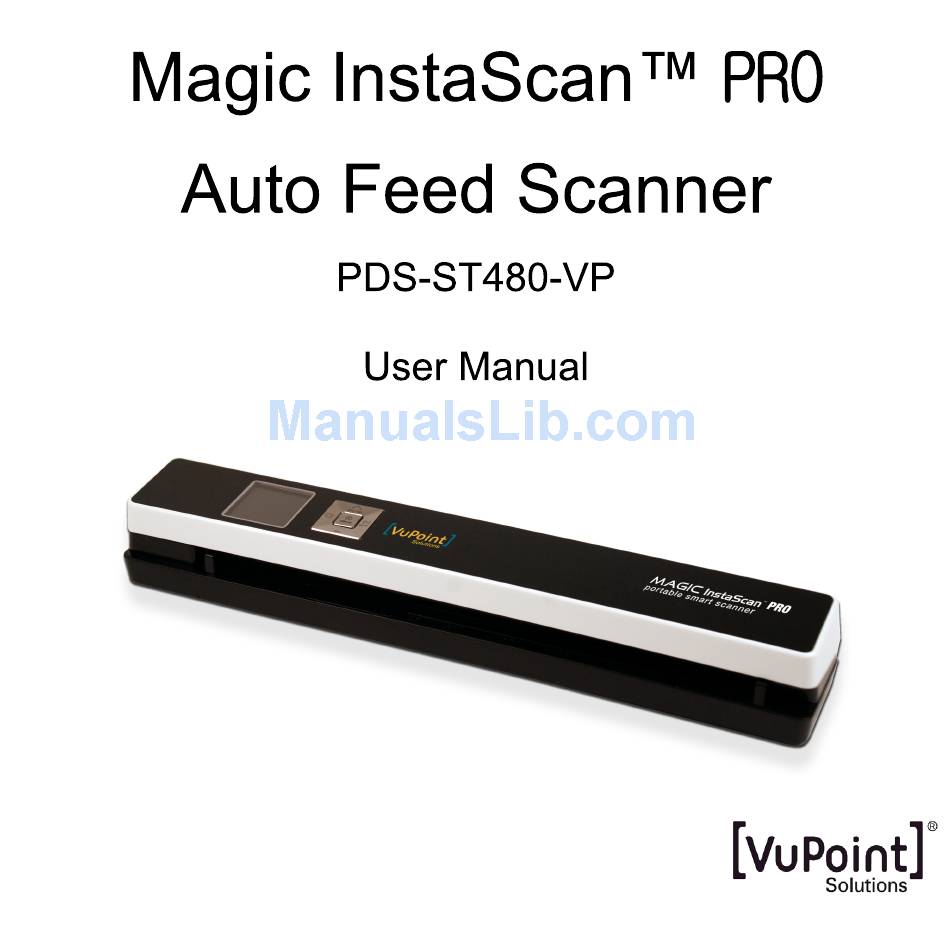

Summary of Contents for VuPoint PDS-ST480-VP
-
Page 2: Table Of Contents
Table of Contents Key Features.............................. 3 Functional Parts ............................3 Explanation of the Status Icons ......................... 5 Using the Scanner............................5 4.1. Charging up the Battery........................ 5 4.2. Inserting a microSD Memory Card (not included)................. 5 4.3. Turn on/off the Scanner ........................ 6 4.4. -
Page 3: Key Features
Getting to know your ST480 Auto Feed Scanner 1. Key Features Automatically scans when feeding a document JPEG, PDF-A4 or PDF-Letter scan-format selection. Color or Monochromatic (mono) scan selection. 300 (LO) /600 (MI) /1200 (HI) DPI scan quality selection. Directly save JPG (JPEG)/PDF files to the microSD/microSDHC card. - Page 4 LCD screen Display scanning status, scanned images and scanner settings Power On/Off: Press and hold this key for 3 seconds to power on or off. In Setup mode, press this button to confirm changes. In Playback mode, press this button to change the zoom between 4x, 8x and normal.
-
Page 5: Explanation Of The Status Icons
3. Explanation of the Status Icons Item Function Description File Format JPG/PDF-A/PDF-L Scan Resolution LO: 300 DPI /MI: 600 DPI / HI: 1200 DPI Fully charged Battery Power Indicator Low battery. Recharge needed Scan Color COLOR/MONO File Counter Shows the number of scanned files in the microSD card 4. -
Page 6: Turn On/Off The Scanner
the card is clicked in and latched. 4.3 Turn on/off the Scanner Turn on/off the scanner by pressing and holding Note: If the scanner is turned on for the first time or the scanner is reset, it will enter Date & Time/Language setup mode. - Page 7 During scanning, the scanning status icon will be displayed on the LCD screen to indicate scanning is in progress. If the scanner is connected to the computer, press the once to enter USB mode, then you are able to view the scanned files on the computer. Notes: ...
-
Page 8: How To Playback Image
4.5 How to Playback Image Press to enter Playback mode. The last scanned image will be displayed. Press to select your desired image. Press to zoom into the image. navigational indicators will appear on the screen. Press to change the magnification between 4x, 8x and normal zoom. Press to view the upper portion of the image;... -
Page 9: Setup Menu
Press to select Yes or No. Select “Yes” to delete the current file in the microSD card. Select “No” to return to previous Playback screen. Press to confirm your selection and return to the previous Playback screen. 4.7 Setup Menu Press to enter Setup menu Press... -
Page 10: Date/Time
Year Month Date/Time Date and Time Date Hour Minute Inst. Preview Instant preview Auto Off Auto Power Off 3 Min Delete All Delete All Files Format the microSD Memory Card ... -
Page 11: Specifications
Note: If the Removable Device window does not launch automatically, go to your “My Computer/Computer” (PC) and find the device under Removable Storage. 6. Specifications Image sensor Color Contact Image Sensor Low resolution : 300x300 dpi Resolution Medium resolution: 600x600 dpi High resolution: 1200x1200 dpi Color High resolution 10.0 Seconds... -
Page 12: Computer System Minimum Requirements
Scan length 300DPI:130"(max);600DPI:60"(max);1200DPI:55"(max) File format JPEG/PDF Approx 1.5” Class* TFT LCD Zoom 4x, 8x Dimensions (L×H×W) mm 11.0”×1.5”×1.8” Auto power off 3 Minutes USB port USB 2.0 high speed External memory microSD/microSDHC card Standard battery Built-in 1200mAH Lithium-Polymer Battery charge time Approx. - Page 13 Replace original memory card with a “Scan Error" icon appears microSD card speed is slow higher class microSD card. (Class 6 or on the LCD screen above recommended) Computer does not recognize your scanner 1. Make sure all cable connections are secured Connection failure when connected(You...
- Page 14 SD-3C, LLC. All trademarks are the property of their respective owner. Memory cards may be hot after use. Be cautious when removing memory cards from the unit. US Patent No. 8,416,456 PDS-ST480-VP _Manual_14-0225 AM-N480-VPS-1 ...
