VuPoint PDS-ST410A-VP User Manual

PDS-ST410A-VP-BX3 Manual
1. Key features
Color JPG/PDF output scan selection
900/600/300 dpi scan selection
Directly save JPG/PDF file to microSD card
Supports microSD/microSDHC card up to 32GB
Driver free to download for Windows® XP, Windows® Vista™,
Windows® 7 and Mac OS® 10.4 or above
(direct plug-in, driver installation not required)

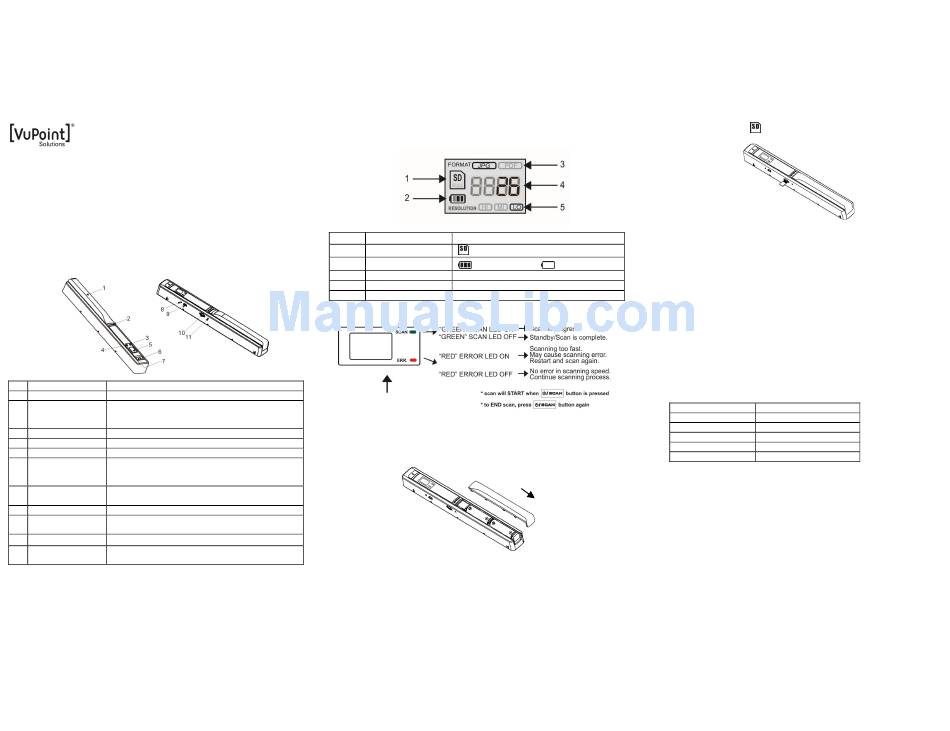

2. Functional parts
Part Function
1 Battery door For 2x AA alkaline batteries
Power On/ Off: Press and hold this key for 2 seconds
2 Power/Scan to turn power on or off. In power on mode, press this
button to start scan, press this button again to stop
3 Error LED indicator Over speed: Red LED on
4
Scan LED indicator Ready for scan: Green LED on
5 LCD screen Scanning status display
Select High(900dpi)/Medium(600dpi)/Low(300dpi)
6 Resolution resolution; High/Medium/Low resolution mode icon
will be displayed on status LCD
Select JPG/PDF scan format, JPG/PDF mode icon
7 JPG/PDF
will be displayed on status LCD
8 Time set Press this button to enter Time and Date setting mode
Download photo to a computer via USB cable
9 USB interface
provided.
10 microSD card slot microSD card storage location.
Press this button with a thin, blunt object, such as the
11
Format button
end of a paperclip to format the microSD card.
3. Explanation of the status icons
Item Function
1 SD card indicator
Photos will be stored in microSD card
2 Battery indicator
Battery is full
3 Format indicator JPG/PDF
4 Counting indicator Show scanned files in microSD card
5 Selected resolution High:900 dpi / Medium: 600dpi / Low:300 dpi
4. LED light indications
5. Using the scanner
5.1 Installing the battery
1. Open the battery door by sliding the battery compartment downwards as
indicated by the arrow in the diagram below. Then lift up.
2. Insert 2x AA alkaline batteries into the battery compartment.
3. Turn on the scanner by pressing the [POWER] button for 2 seconds.
5.2 Inserting a microSD memory card (not included)
To operate the scanner, you must insert a microSD Card (not supplied) to record
and store your pictures. Inserting the microSD memory card:
1. Turn ON the scanner.
2. Insert the microSD card into the microSD card slot (with metal side facing up).
Gently press in until card is latched and clicked into place.
The SD card indicator
5.3 Formatting the microSD memory card
Note: Formatting the microSD is recommended but not necessary. All content on
Description
the microSD card will be erased during formatting.
1. Insert a microSD card into the scanner with metal side facing up.
2. Turn on the scanner by pressing the [Power/Scan] button for 2 seconds.
Empty battery
3. Press the [FORMAT] button with a thin, blunt object, such as the end of a
paperclip to access the button. An "F" will show on the LCD status display
screen.
4. Press the [SCAN] button once to begin formatting the microSD card.
5. The microSD card indicator will blink until the formatting process is complete.
5.4 Time and Date setting
1. Press [TIME SET] button once to enter time setting mode by using a thin, blunt
object, such as the end of a paperclip to access the button. The LCD status
display screen will show "1##" (step 1) for the year. "##" is a set of number that
would be changed to correspond to the actual time/date setting. The numbers
1-5 in front of "##" indicates each step in the settings.
2. Press the [JPG/PDF] or [DPI] button to select the current Year.
3. Press [SCAN] button once to confirm setting.
4. Repeat step 2 and 3 to continue the Time and Date setting process
Indicator
1##
2##
3##
4##
5##
5. After setting the Minute, "5##", press the [TIME SET] button again to complete
the Time and Date setting.
5.5 Setting the resolution
Press the [DPI] button to select High/Medium/Low resolution.
High/Medium/Low resolution icon will be displayed on status LCD.
5.6 Setting the scan mode
Press the [JPG/PDF] button to select JPG/PDF output format mode.
JPG/PDF will be displayed on status LCD.
5.7 How to calibrate the scanner
NOTE: Perform calibration only when white balance needs adjustment
1. With the dry cleaning cloth provided, clean the scanning lens located on
the bottom of the scanner.
2. Turn on the scanner by pressing the [POWER] button. Place the
must appear on the LCD screen.
Setting
Year
Month
Date
Hour
Minute
