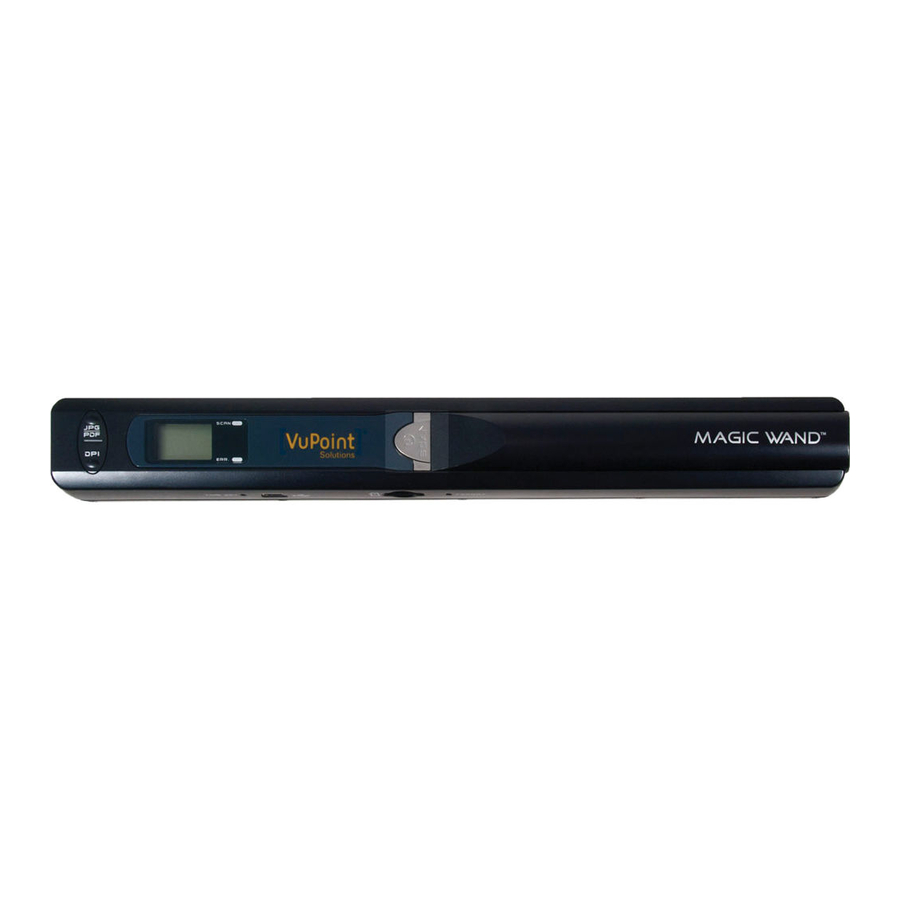

VuPoint Solutions PDS-ST415-VP - Handheld Scanner Manual

Key features

Color/Monochrome (Mono) scan selection
600/300 dpi scan selection
Directly save JPG file to microSD card
Supports microSD/microSDHC card up to 32GB
Driver free to download for Windows® XP, Windows® Vista™, Windows® 7 and Mac OS® 10.4 or above
(direct plug-in, driver installation not required)

Functional parts

Explanation of the status icons

Item	Function	Description
1	SD card indicator	Photos will be stored in microSD card
2	Battery indicator	Battery is full Empty battery
3	Effect indicator	Color or Mono
4	Counting indicator	Show scanned files in microSD card
5	Selected resolution	High: 600 dpi / Low: 300 dpi

LED light indications

Using the scanner

Installing the battery

1. Open the battery door by sliding the battery compartment downwards as indicated by the arrow in the diagram below.

2. Insert 2x AA alkaline batteries into the battery compartment.
3. Turn on the scanner by pressing the [POWER] button for 2 seconds.

Inserting a microSD memory card (not included)

To operate the scanner, you must insert a microSD Card (not supplied) to record and store your pictures. Inserting the microSD memory card:

1. Turn OFF the scanner.
2. Insert the microSD card into the microSD card slot (with metal side facing up). Gently press in until card is latched and clicked into place.


Formatting the microSD memory card

Note: Formatting the microSD is recommended but not necessary. All content on the microSD card will be erased during formatting.

1. Insert a microSD card into the scanner with metal side facing up.
2. Turn on the scanner by pressing the [Power/Scan] button for 2 seconds.
3. Press the [FORMAT] button with a thin, blunt object, such as the end of a paperclip to access the button. An "F" will show on the LCD status display screen.
4. Press the [SCAN] button once to begin formatting the microSD card.
5. The microSD card indicator will blink until the formatting process is complete.

Time and Date setting

1. Press [TIME SET] button once to enter time setting mode by using a thin, blunt object, such as the end of a paperclip to access the button. The LCD status display screen will show "1##" (step 1) for the year. "##" is a set of number that would be changed to correspond to the actual time/date setting. The numbers 1-5 in front of "##" indicates each step in the settings.
2. Press the [C/BW] or [DPI] button to select the current Year.
3. Press [SCAN] button once to confirm setting.
4. Repeat step 2 and 3 to continue the Time and Date setting process

   Indicator	Setting
   1##	Year
   2##	Month
   3##	Date
   4##	Hour
   5##	Minute

5. After setting the Minute, "5##", press the [TIME SET] button again to complete the Time and Date setting.

Setting the resolution

Press the [DPI] button to select High/Low resolution.
High/Low resolution icon will be displayed on status LCD.

Setting the scan mode

Press the [C/BW] button to select Color/Mono mode.
Color/Mono icon will be displayed on status LCD.

How to scan

NOTE: To scan, make sure your scanner is not connected to the computer.

1. Turn on scanner by pressing the [Power/Scan] button for 2 seconds.
2. Hold the document firmly with one hand on a flat surface.
3. Place the scanner on the edge of the paper approximately 5/8 to 3/4 of an inch onto the page to ensure the whole document can be scanned. Make sure to keep the scanning area in between the scanning width indicators marked on the side of the scanner.

4. Hold the scanner flat against the material and then press the [SCAN] button once.

5. Slide the scanner slowly, keeping your hand stable to get the best quality picture.
6. Press the [SCAN] button again to stop scanning.

Viewing your scans

1. Connect your scanner to your computer and then turn on your scanner.

2. Your computer should recognize the scanner as a "Removable Disk." Click "Open folder to view files" to view and import scans.

Note: If the Removable Device Window did not launch automatically, go to your "My Computer" and find the device under Removable Storage.

Specifications

Computer system minimum requirement

Troubleshooting

ABBYY® OCR Software

(Optional, not required to install to operate scanner)

Compatible with Windows® XP, Windows® Vista™, Windows® 7
To access the software User's Manual go to the Help menu for instructions on how to use the OCR software application:

1. Load and open the ABBYY software.
2. Press the "F1" key located on your keyboard to launch the "Help" menu from the software.
3. OR, locate the ABBYY icon found next to the Time indicator on your computer's taskbar and then right click on the icon to access the "Help" menu.
