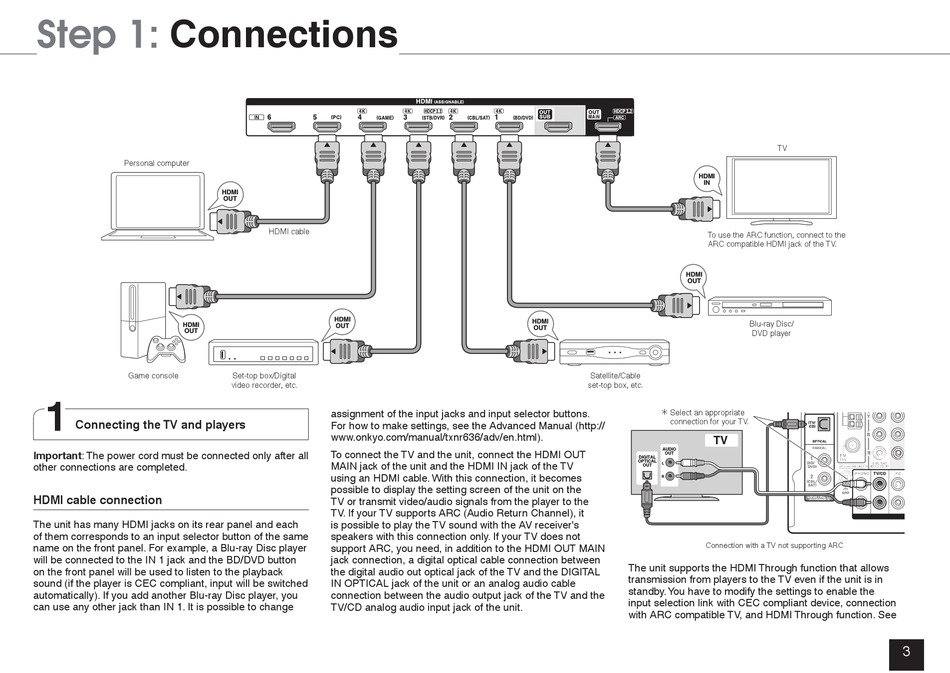

Step 1:

Connections

Personal computer
HDMI
OUT
Game console
1

Connecting the TV and players

Important: The power cord must be connected only after all
other connections are completed.

HDMI cable connection

The unit has many HDMI jacks on its rear panel and each
of them corresponds to an input selector button of the same
name on the front panel. For example, a Blu-ray Disc player
will be connected to the IN 1 jack and the BD/DVD button
on the front panel will be used to listen to the playback
sound (if the player is CEC compliant, input will be switched
automatically). If you add another Blu-ray Disc player, you
can use any other jack than IN 1. It is possible to change
HDMI
OUT
HDMI cable
HDMI
OUT
Set-top box/Digital
video recorder, etc.
assignment of the input jacks and input selector buttons.
For how to make settings, see the Advanced Manual (http://
www.onkyo.com/manual/txnr636/adv/en.html).
To connect the TV and the unit, connect the HDMI OUT
MAIN jack of the unit and the HDMI IN jack of the TV
using an HDMI cable. With this connection, it becomes
possible to display the setting screen of the unit on the
TV or transmit video/audio signals from the player to the
TV. If your TV supports ARC (Audio Return Channel), it
is possible to play the TV sound with the AV receiver's
speakers with this connection only. If your TV does not
support ARC, you need, in addition to the HDMI OUT MAIN
jack connection, a digital optical cable connection between
the digital audio out optical jack of the TV and the DIGITAL
IN OPTICAL jack of the unit or an analog audio cable
connection between the audio output jack of the TV and the
TV/CD analog audio input jack of the unit.
HDMI
IN
To use the ARC function, connect to the
ARC compatible HDMI jack of the TV.
HDMI
OUT
HDMI
OUT
Satellite/Cable
set-top box, etc.
¼ Select an appropriate
¼
connection for your TV.
AUDIO
OUT
DIGITAL
OPTICAL
OUT

Connection with a TV not supporting ARC

The unit supports the HDMI Through function that allows
transmission from players to the TV even if the unit is in
standby. You have to modify the settings to enable the
input selection link with CEC compliant device, connection
with ARC compatible TV, and HDMI Through function. See
