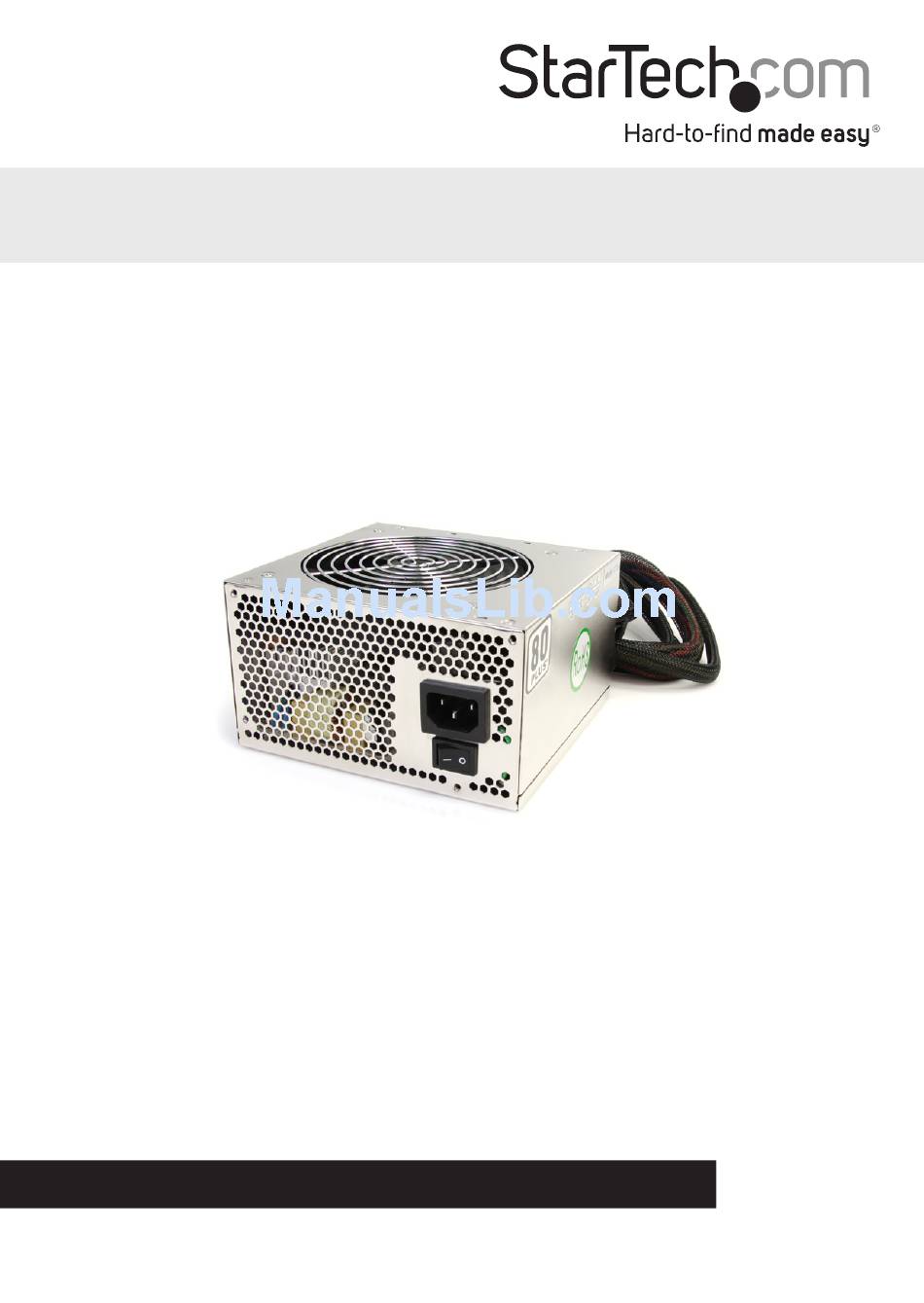

Instruction Manual
500/550 Watt Professional 20/24-pin ATX
2.01 Computer Power Supply
ATXPW500PRO2
ATXPW550PRO2
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 04/19/2012
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com ATXPW500PRO2
Summary of Contents for StarTech.com ATXPW500PRO2
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 04/19/2012...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Hardware Installation ..........................2 Specifications ..................4 Connectors ..............................5 Technical Support ..................6 Warranty Information ................6 Instruction Manual... -
Page 4: Introduction
Introduction The ATXPW500PRO2 500 Watt EPS12V/ATX12V power supply delivers a professional-grade PC power solution, with support for recent Intel® and AMD® dual-core CPU designs. Featuring a comprehensive range of device connections, including SATA and dual PCI Express connectors for systems with high-end video cards, the PSU is compliant with ATX12V 2.01 &... -
Page 5: Installation
Installation of a power supply requires some mechanical skill and requires that you open your computer case to disconnect and reconnect wires. If you are unfamiliar with this kind of work, consider bringing your computer and new StarTech.com power supply to your local computer store for help. - Page 6 NOTE: the detached 4-pin connector cannot be used in place of the 4-pin ATX12V (P4) connector. 8. Make sure any loose or unused cables from the power supply are away from fans and other moving parts. 9. Place the cover back onto the computer case. 10.
-
Page 7: Specifications
0°C ~ 40°C (32°F ~ 104°F) Storage Temperature -20°C ~ 80°C (-4°F ~ 176°F) Humidity 10 ~ 90% RH Dimensions (LxWxH) 140.0mm x 150.0mm x 86.0mm Weight 1800g 1830g ATXPW500PRO2 Power Output +3.3V +12V1 +12V2 -12V +5Vsb Output 2.5A 275W 380W 12.5W... -
Page 8: Connectors
525.5W Connectors 1 x 4+4 pin ATX12V 1 x ATX 20+4 pin (8-pin EPS12V) 5 x 15-pin SATA (ATXPW500PRO2) 2 x 6-pin PCI Express 7 x 15-pin SATA (ATXPW550PRO2) 5 x 4-pin Molex Power (LP4) 2 x 4-pin Mini-Power (SP4) -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
