Cisco Video Surveillance 6400E IP Camera
The Cisco
functioning video endpoint with an integrated infrared illuminator and industry-leading
image quality and processing power. The camera is capable of full 1080p resolution at
30 frames per second (fps) while optimizing network usage with either H.264 or
MJPEG compression. Contact closures and two-way audio allow integration with
microphones, speakers, and access control systems. With its open, standards-based

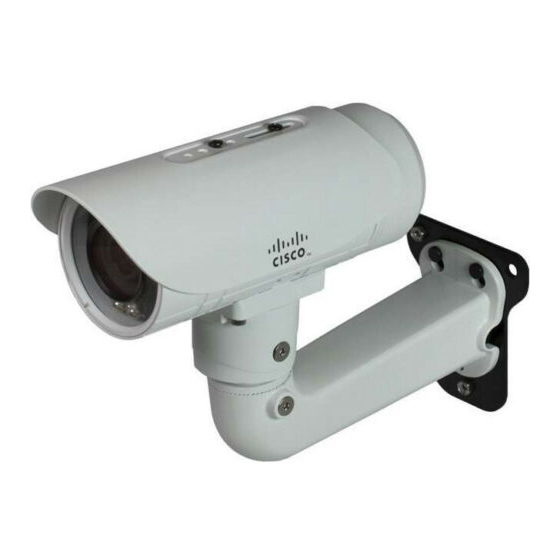

design, the camera, shown in Figure 1, provides an ideal platform for integration and
operation as an independent device or as part of a Cisco Video Surveillance network.
The Cisco Video Surveillance 6400E IP Camera offers a variety of benefits.
●
True high-definition video: The camera streams crisp and clear 1080p (1920 x 1080) (2.1 megapixel)
video at 30 fps while maintaining low network bandwidth.
●
Motorized focus and zoom: The lens on the 6400E IP Camera allows the focus and zoom to be controlled
remotely, greatly simplifying installations and field-of-view adjustments.
●
Integrated infrared illuminator: The infrared illuminator can light an area up to 30 meters away.
●
Outdoor-ready: An IK10 and IP67-rated enclosure and an included mounting bracket allow for outdoor
mounting straight out of the box.
●
Dual streaming: The camera can stream H.264 and MJPEG video simultaneously. Each video stream can
be configured with individual resolution, quality, and frame-rate settings.
●
Application-ready platform: You can easily add functions by installing and running applications directly on
the camera.
●
Day and night operation: The camera provides true day or night functionality and includes an infrared filter
that automatically switches to night mode in low-light scenes. This function can be set to manual, automatic,
or scheduled control.
●
Privacy regions: The camera supports up to four user-defined privacy regions. Any video within a privacy
region is masked in the video stream.
●
Local storage: Video data can automatically be recorded to an SD card continuously or when the camera
loses network connectivity.
●
Bidirectional audio: The camera supports full-duplex audio and options for half-duplex operation.
●
Open API: Support for Open Network Video Interface Forum (ONVIF) 2.0 and Profile S allows for
standards-based interoperability and communications with other ONVIF appliances.
●
Flexible power options: The camera supports Power over Ethernet (PoE) 802.3af, 12 VDC, or 24 VAC
power through an optional external power supply.
●
Mounting options: The camera can be installed with a fixed mount or with an optional external pan-tilt
mount and motorized zoom lens.
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
®
Video Surveillance 6400E IP Camera is an outdoor, high-definition, full-
Data Sheet
Page 1 of 7

Advertisement

loading

Related Manuals for Cisco 6400E

Summary of Contents for Cisco 6400E

  • Page 1 True high-definition video: The camera streams crisp and clear 1080p (1920 x 1080) (2.1 megapixel) video at 30 fps while maintaining low network bandwidth. ● Motorized focus and zoom: The lens on the 6400E IP Camera allows the focus and zoom to be controlled remotely, greatly simplifying installations and field-of-view adjustments. ●...
  • Page 2 ● Medianet support: The camera supports the Cisco Medianet interface. When connected to a Cisco switch that also supports Medianet, the switch recognizes the camera as a video endpoint and then uses SmartPort macros to set the right network parameters for the video stream on the network. In addition, the camera can be automatically discovered and configured when connected to Cisco Video Surveillance Manager 7.0, thereby reducing installation time and cost.
  • Page 3 Table 2 lists the video stream support for the Cisco Video Surveillance 6400E IP Camera for 16:9 aspect ratios. Table 2. Cisco Video Surveillance 6400E IP Camera Video Stream Support for 16:9 Aspect Ratios Primary (H.264) Maximum fps Secondary (H.264 or MJPEG)
  • Page 4 160 x 96 160 x 96 Table 3 lists the video stream support for the Cisco Video Surveillance 6400E IP Camera for 4:3 aspect ratios. Table 3. Cisco Video Surveillance 6400E IP Camera Video Stream Support for 4:3 Aspect Ratios Primary (H.264)

  • Page 5: Ntsc And Pal

    Connectors Table 4 describes the connectivity and connectors of the Cisco Video Surveillance 6400E IP Camera. Table 4. Cisco Video Surveillance 6400E IP Camera Connectors Item Specification Network connectivity 100 BASE-TX Ethernet with RJ-45 connector Alarm input One logic level programmable...

  • Page 6: Package Contents

    Figure 1 shows the dimensions of the Cisco Video Surveillance 6400E IP Camera. Figure 1. Cisco Video Surveillance 6400E IP Camera Dimensions Package Contents Table 7 describes the items that ship with the Cisco Video Surveillance 6400E IP Camera. Table 7. Package Contents Item...

  • Page 7: Ordering Information

    Surveillance Manager. Services and Support Cisco and our certified partners can help you accelerate success and improve the return on your investment in a Cisco Physical Security solution. The Cisco lifecycle approach to services defines the requisite activities at each phase of the solution lifecycle.
