Nortel 1230 Technical Specifications

Technical Specification

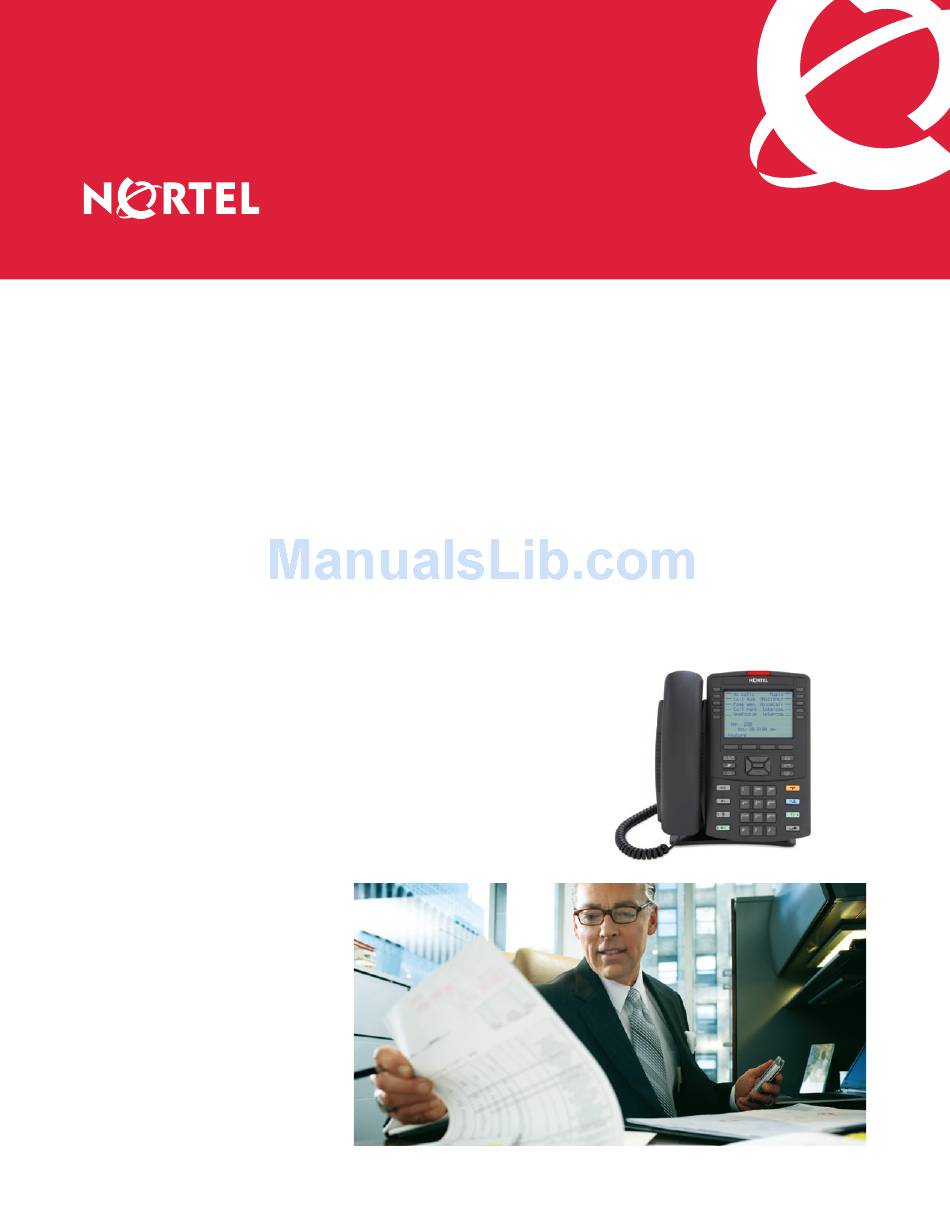

Nortel IP Phone 1230
Ideal for advanced knowledge workers and managers
The IP Phone 1230 is a multi-line,
premium intermediate-level desktop
phone in the exciting IP Phone 1200
Series. Originally designed and opti-
mized for small and medium-sized
businesses, the IP Phone 1200 Series is
now extended to enterprises, offering a
competitive feature set with contempo-
rary styling. The IP Phone 1230 is best
suited for power users with advanced
communication needs such as managers,
knowledge workers and administrative
assistants.
Key features and benefits
include:
• Multi-line IP Phone supports up to
10 line/programmable feature keys,
eight fixed telephony keys, four
context-sensitive soft keys and six
shortcut/feature keys.
• 9 lines x 25 character and 143 x 32
pixel display with anti-glare screen
combined with a flexible two-position
adjustable footstand, optimizes viewing
under varied lighting conditions.
• Four-way navigation cluster with
Enter key maximizes user choice and
flexibility in navigation.
• Superior audio quality leverages some
of the latest technologies to ensure
crystal-clear conversations.
• Integrated headset and speakerphone
— supports a high-quality, two-way
speakerphone (handsfree) and other
optional headsets for executives or
multi-tasking workers.
• Simplified communications —
the most commonly used Nortel
Business Communications Manager
(BCM) and Nortel Communication
Server 1000 features come pre-
programmed on all IP Phone 1200
Series sets. You can also customize
the sets from hundreds of BCM and
Communication Server 1000 tele-
phony features.
• Integrated 10/100 Base-T Ethernet
switch with LAN and PC ports
reduces costs, enabling a single cable
drop to support both the phone and
a collocated PC.
• Supports 802.3af standards-based
PoE and local AC power via power
adapter.
• Compatible with optional Key
Expansion Modules (12-key
LCD-based or 18-key LED-based).
Nortel IP Phone 1230
