RAID 0 Mode
SW1
1
BZS EZ M2 M1 M0
RAID 1& RAID 10 Mode
SW1
1
BZS EZ M2 M1 M0
RAID 3 Mode
SW1
1
BZS EZ M2 M1 M0
www.addonics.com

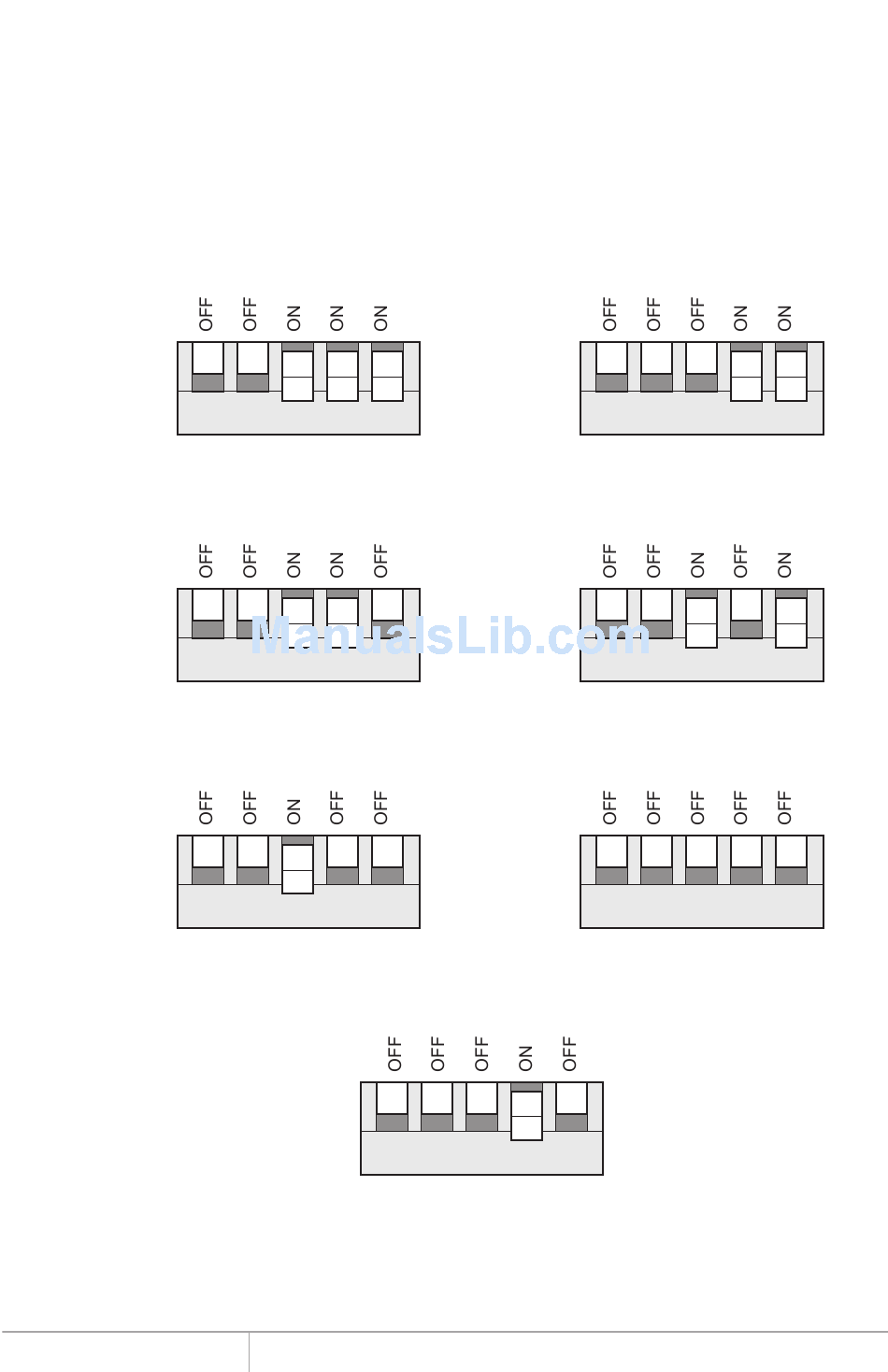

On the DIP switch, change (M0 to M2) setting to the
desired RAID mode using the diagram below.
All settings on the diagram shows
• Error buzzer function is ENABLED
• EZ function is DISABLED.
2 3 4 5
2 3 4 5
2 3 4 5
RAID 5 Mode
SW1
1
BZS EZ M2 M1 M0
Technical Support (M-F 8:30am - 6:00pm PST)
SW1
BZS EZ M2 M1 M0
SW1
BZS EZ M2 M1 M0
Individual Drives Mode
SW1
BZS EZ M2 M1 M0
2 3 4 5
Phone: 408-453-6212
Clone Mode
1 2 3 4
Large Mode
1 2 3 4
1 2 3 4
Email: www.addonics.com/support/query/
