5-BAY RAID BOX
Manual
5-BAY RAID BOX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5-BAY RAID BOX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sharkoon 5-BAY RAID BOX

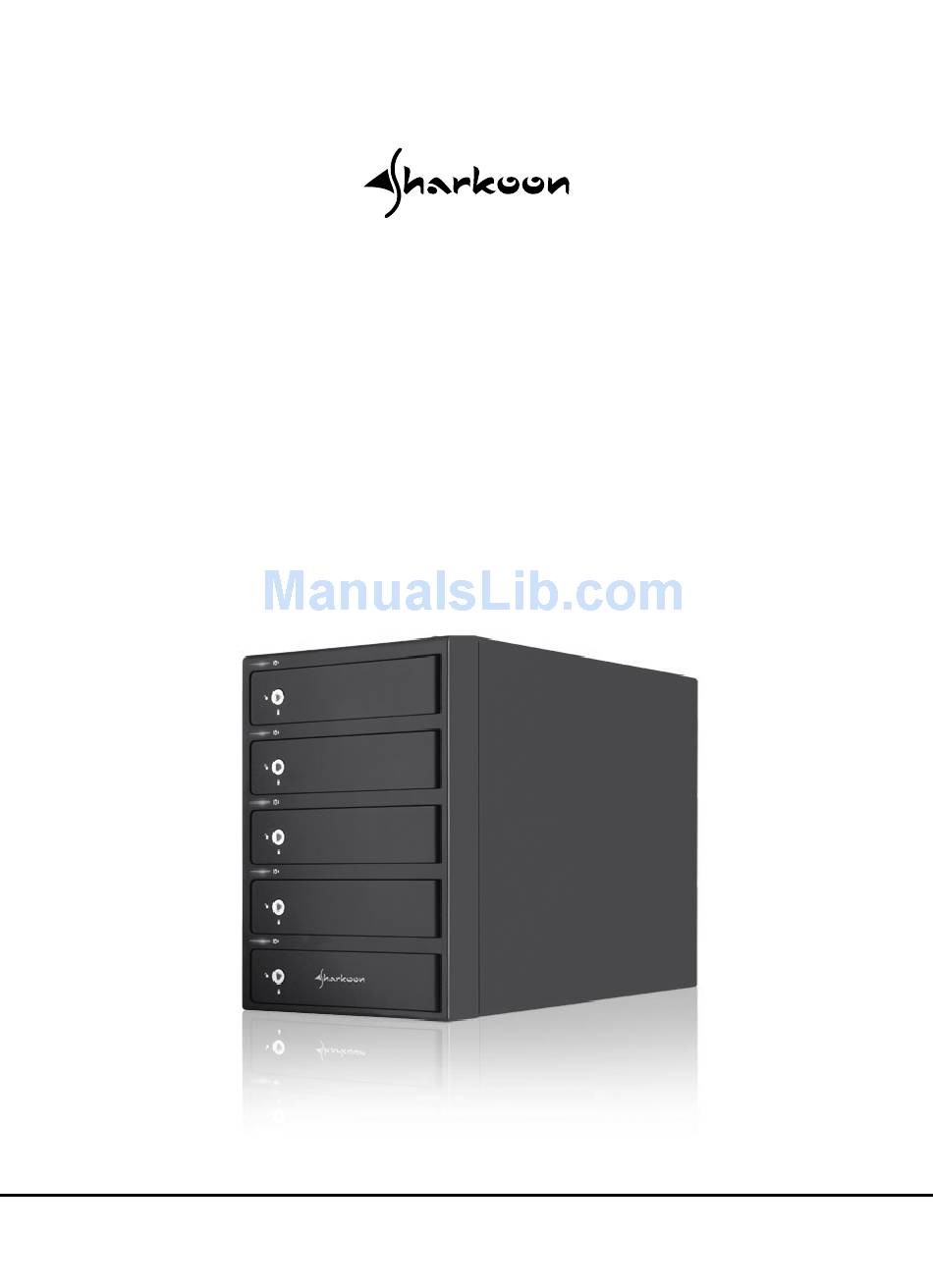

  • Page 1 5-BAY RAID BOX Manual 5-BAY RAID BOX...
  • Page 2: Specifications

    External interfaces: USB3.0 (downward compatible with USB2.0 and USB1.x) and eSATA • Internal interfaces: SATA (SATA I and II) • Dimensions: 265 x 130 x 185 mm (L x W x H) • Weight (empty): 3470 g 5-BAY RAID BOX...
  • Page 3: The Device At A Glance

    LEDs for HDD activity 3 – HDD mounting bays 4 – Voltage switch 5 – RAID switch 6 – Set button 7 – eSATA connector 8 – USB3.0 connector 9 – Power connector 10 – On/off switch 5-BAY RAID BOX...
  • Page 4: Getting Started

    3. Slide a 3.5“ SATA HDD (label facing upwards) into the respective mounting bay (C). 4. Close and lock the mounting bay (D). Attention: Before turning on the device, make sure the voltage switch is toggled to the correct voltage. 5-BAY RAID BOX...
  • Page 5 4.2 Connecting to a PC 5. The RAID modes 5.1 Overview 5-BAY RAID BOX...
  • Page 6 LEDs for HDD activity will cease and the device will beep until the “Set” button is pressed. In a RAID 1, 3, 5 and 10 array the data can be restored by rebuilding the array (see 5.5). 5-BAY RAID BOX...
  • Page 7: Important Notes

    6. Important notes After 5 minutes of inactivity the device will switch to sleep mode. During sleep mode all HDDs and the built-in fans will be switched off. Sleep mode ends as soon as the device is accessed. 5-BAY RAID BOX...
  • Page 8: Legal Disclaimer

    As a continuing policy of product improvement at SHARKOON, the design and specifications are subject to change without prior notice. National product specifications may vary. Disposal of your old product...
