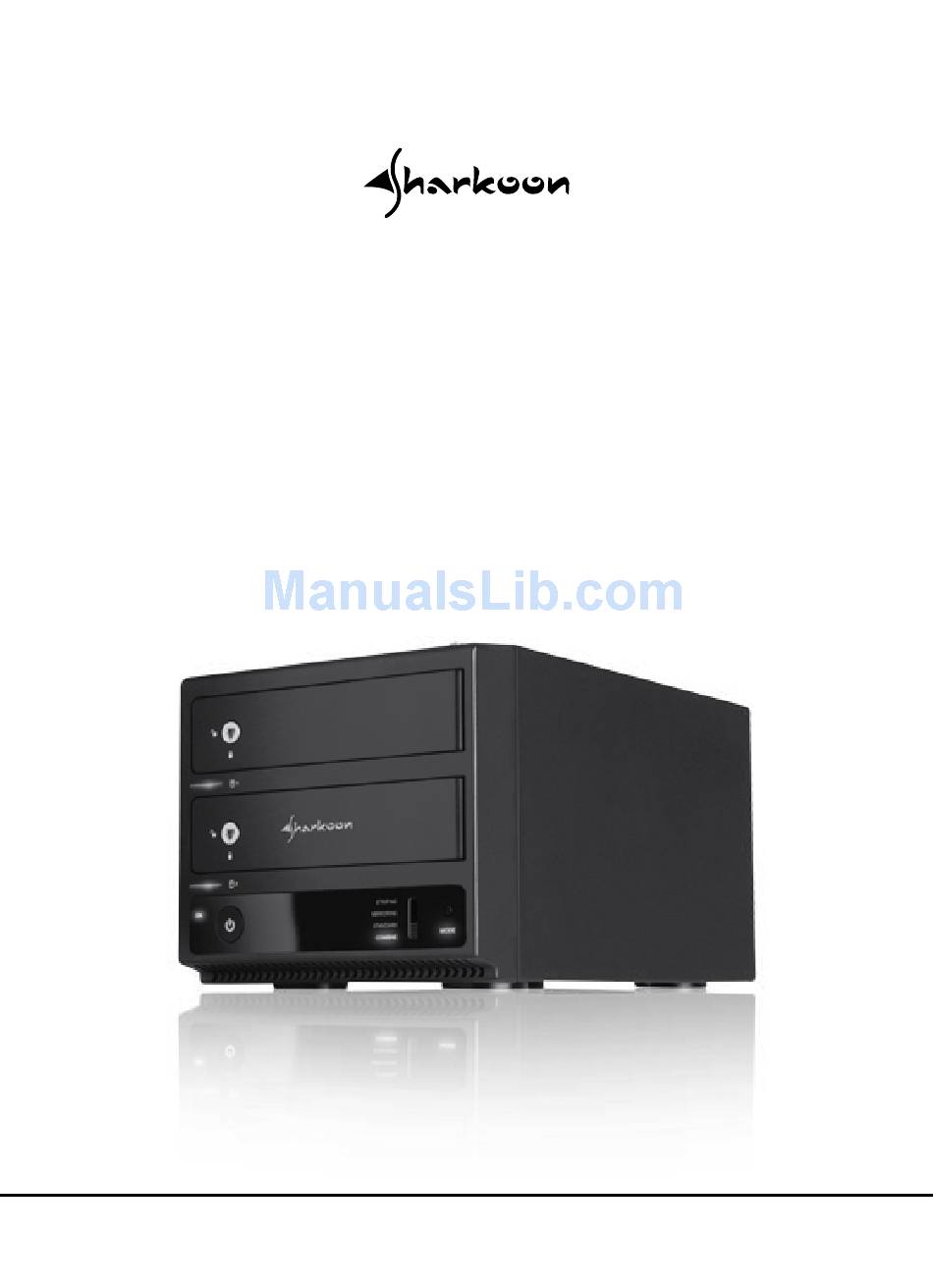

- Page 1 2-BAY RAID BOX Manual 2-BAY RAID BOX...
-
Page 2: Specifications
External interface: USB3.0 (downward compatible with USB2.0 and USB1.x) • Internal interfaces: SATA (compatible with SATA I and II) • Dimensions: 215 x 130 x 120 mm (L x W x H) • Weight (empty): 1926 g 2-BAY RAID BOX... -
Page 3: The Device At A Glance
Power LED 4 – On/off button 5 – RAID mode LED 6 – RAID mode switch 7 – HDD mounting bays 8 – Mode button 9 – Mode LED 10 – USB3.0 connector 11 – Power connector 2-BAY RAID BOX... -
Page 4: Getting Started
4.1 HDD installation 1. Open the door lock (A). 2. Open the front lid (B). 3. Slide a 3.5" SATA HDD (label facing upwards) into the respective mounting bay (C). 4. Close and lock the mounting bay (D). 2-BAY RAID BOX... -
Page 5: Connecting To A Pc
6. Remove defective RAID HDD In case a HDD inside a RAID array gets defective, the according status LED will permanently light-up in red. 2-BAY RAID BOX... - Page 6 PC. During this procedure the status LEDs will be flashing. As soon as the LEDs for HDDs lights up blue, the procedure is completed and the device may be accessed. 2-BAY RAID BOX...
-
Page 7: Important Notes
All named products and descriptions are trademarks and/or regis- tered trademarks of the respective manufacturers and are accepted as protected. As a continuing policy of product improvement at SHARKOON, the design and specifications are subject to change without prior notice. National product specifications may vary.
