- Page 1 D2000.2 2 - C H A N N E L A M P L I F I E R...
-
Page 2: End Panel Layouts
• Permanent ink marker or pencil • DMM or VOM 9b 10b • PA d2000.2—250W x 2 RMS @ 2 Ohms; 125W x 2 RMS @ 4 Ohms; 500W x 1 RMS Bridged @ 4 Ohms . • Safety glasses • Nylon tie straps Note: Improper installation will not only limit the performance of your Polk Audio PA D Series amplifier but also • Wire strippers and cutters... -
Page 3: Amplifier Installation

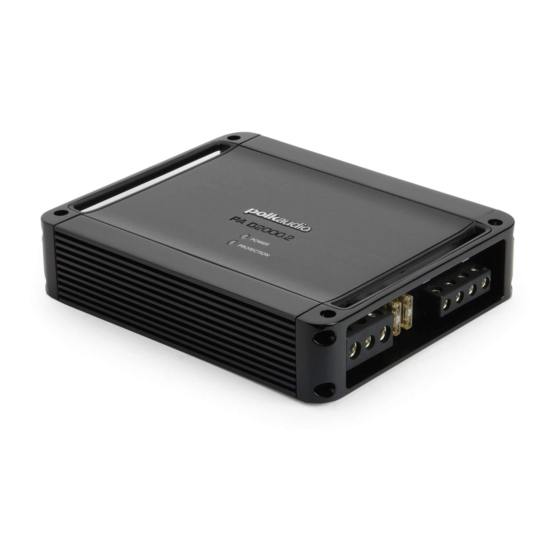

PA d2000.2 Power Inputs/Speaker Outputs Speaker Wiring diagram PA d2000.2 The Polk Audio PA D2000 . 2 amplifier offers two positive and two negative output terminals for ease of 2000.2 connecting the speakers to the amplifier . The amplifier is stable to 2 Ohms per channel or 4 Ohms bridged . -
Page 4: Set Up And Troubleshooting
INSTALLATION guIdELINES 8. Connect power wires to the amplifier (ground first, then +12V and REM). 9. Connect the line level and speaker wires to the amplifier . Check the quality of your speakers and signal Power for systems with a single amplifier can be supplied by most automotive electrical systems . Systems with multiple connections . -
Page 5: Troubleshooting Tips
TrOuBLESHOOTINg TIPS 6. Turn up the level control corresponding to the tweeter output until you hear slight distortion and turn back the level control slightly for an undistorted output . Depending on your system Symptom Probable Cause Action To Take the midrange and tweeter output may be on the same output channels .
