RHT2660DA
PETROL HEDGE TRIMMER
OPERATOR'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RHT2660DA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ryobi RHT2660DA

Summary of Contents for Ryobi RHT2660DA

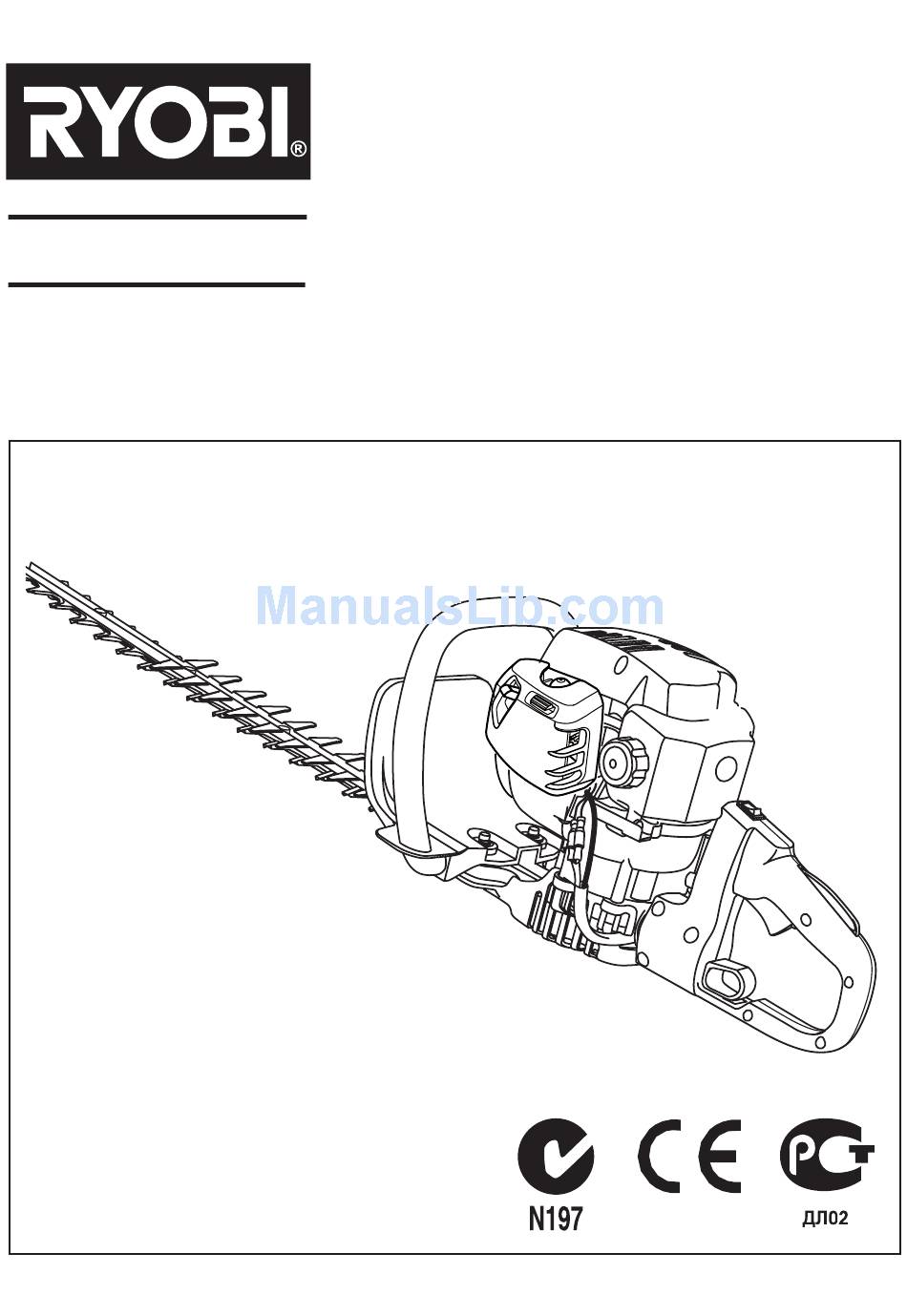

  • Page 1 RHT2660DA PETROL HEDGE TRIMMER OPERATOR'S MANUAL...

  • Page 2: General Safety Rules

    GENERAL SAFETY RULES WARNING TURN POWER OFF. Don’t leave machine until it comes to Read and understand all in struc tions. Fail ure to a complete stop. fol low all instructions listed below, may result in elec tric ■ KEEP THE ENGINE FREE OF GRASS, LEAVES, OR shock, fire and/or carbon monoxide poisoning which GREASE to reduce the chance of a fire hazard.

  • Page 3: Specific Safety Rules

    ■ EMPTY FUEL TANK AND RESTRAIN THE UNIT FROM MOVING before transporting in a vehicle. ■ DO NOT OPERATE AROUND dry brush, twigs, cloth rags, ■ WHEN SERVICING USE ONLY IDENTICAL RYOBI or other flammable materials. REPLACEMENT PARTS. Use of any other parts may ■...
  • Page 4 SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME EXPLANATION Safety Alert Symbol Precautions that involve your safety.
  • Page 5 AUTHORISED SERVICE CENTRE for repair. When servicing, operator’s manual, do not use this product. Call Ryobi customer service for assistance. use only identical replacement parts.

  • Page 6: Product View

    FEATURES PRODUCT SPECIFICATIONS Engine Displacement ..........26 cc Dry Weight ............... 5.34 kg Max Engine Performance (in Accordance with ISO 8893) ... Vibration Level (in accordance with Annex C of EN ................0.67 kW 774:1996+A1+A2+A3/prEN 10517:2003) Fuel Consumption (in Accordance with ISO 8893) at Max - Front Handle (Idling / Racing) ....4.5 / 23.8 m/s Engine Performance ..........0.51 L/h - Rear Handle (Idling / Racing) ....9.6 / 25.6 m/s...

  • Page 7: Operation

    ASSEMBLY UNPACKING WARNING: This product has been shipped completely assembled. If any parts are damaged or missing do not operate this product until the parts are replaced. Failure to heed ■ Carefully remove the product and any accessories from this warning could result in serious personal injury. the box.

  • Page 8: Filling Tank

    OPERATION FILLING TANK ■ Position the hedge trimmer on its side with the fuel cap pointing upward. ■ Clean surface around fuel cap to pre vent con tam i na tion. ■ Loosen fuel cap slowly. Rest the cap on a clean surface. ■...

  • Page 9: Rotating Handle

    OPERATION WARNING: When the engine starts with the throttle trigger ROTATING HANDLE locked, the blades will move. Keep body, objects, KNOB and obstructions away from blades. Failure to keep away from the blades can result in serious injury. ROTATING HANDLE See Figure 5.

  • Page 10: Replacing Blades

    MAINTENANCE WARNING: REPLACING BLADES When servicing, use only iden ti cal replacement parts. See Figure 7. Use of any other parts may create a hazard or cause Periodically inspect the blades for damage and wear. Always product damage. use the manufacturer’s specified replacement blades. ■...

  • Page 11: Lubricating The Blade

    MAINTENANCE LUBRICATING THE BLADE See Figure 8. For easier operation and longer blade life, lubricate the hedge trimmer blade before and after each use. ■ Stop the engine and disconnect the spark plug wire. ■ Lay the hedge trimmer on a flat surface. Apply light weight machine lubricant along the edge of the top blade.

  • Page 12: Idle Speed Adjustment

    MAINTENANCE IDLE SPEED ADJUSTMENT See Figure 11. If the blades move at idle, the idle speed screw needs adjust- ing on the engine. Turn the idle speed screw counterclockwise to reduce the idle RPM and stop the blade movement. If the blades still move at idle speed, contact a service dealer for adjustment and discontinue use until the repair is made.

  • Page 13: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE REMEDY Engine will not start. No spark. Clean or replace spark plug. Reset spark plug gap. Refer to Spark Plug Replacement earlier in this manual. No fuel. Push primer bulb until bulb is full of fuel. If bulb does not fill, primary fuel delivery sys tem is blocked.

  • Page 14: Limited Warranty

    MAXIMUM LIABILITY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE PAID BY YOU FOR THE PRODUCT. This warranty is valid only in the European Union, Australia and New Zealand. Outside these areas, please contact your authorized Ryobi dealer to determine if another warranty applies. CE DECLARATION OF CONFORMITY...
  • Page 15 RYOBI TECHNOLOGIES (UK) LIMITED. RYOBI TECHNOLOGIES GMBH Medina House, Itterpark 4 Fieldhouse Lane, Marlow, D-40724 Hilden Buckinghamshire, DEUTSCHLAND SL7 1TB, Tel: + 49 (0) 2103 2958-0 UNITED KINGDOM Fax: + 49 (0) 2103 2958-29 Tel: + 44 (0)1628 894400 Fax: +44 (0)1628 894401...
