Tektronix TekConnect TCA-1MEG Specifications

Te k C o n n e c t
TCA-1MEG
Tektronix award-winning TDS7000, CSA7000
and TDS6000 Series oscilloscopes allow
engineers to make high-speed measurements
quickly and efficiently. In addition to these
high-speed measurements, many of today's
designers also face the challenges of measuring
high voltage, current, power or even micro-volt
level signals to gain a more complete under-
standing of their designs.
The TekConnect family of amplifiers, probes
and adapters make it the ideal solution for
such challenges, delivering a variety of acqui-
sition capabilities through the use of existing
compatible TekConnect and TEKPROBE
measurement tools.
www.tektronix.com/accessories
1 TekConnect Amplifiers •
™
H i g h - i m p e d a n c e B u f f e r A m p l i f i e r S y s t e m
TekConnect TCA-1MEG Buffer
Amplifier System Expands the
Functionality of Tektronix
High-performance
Oscilloscopes

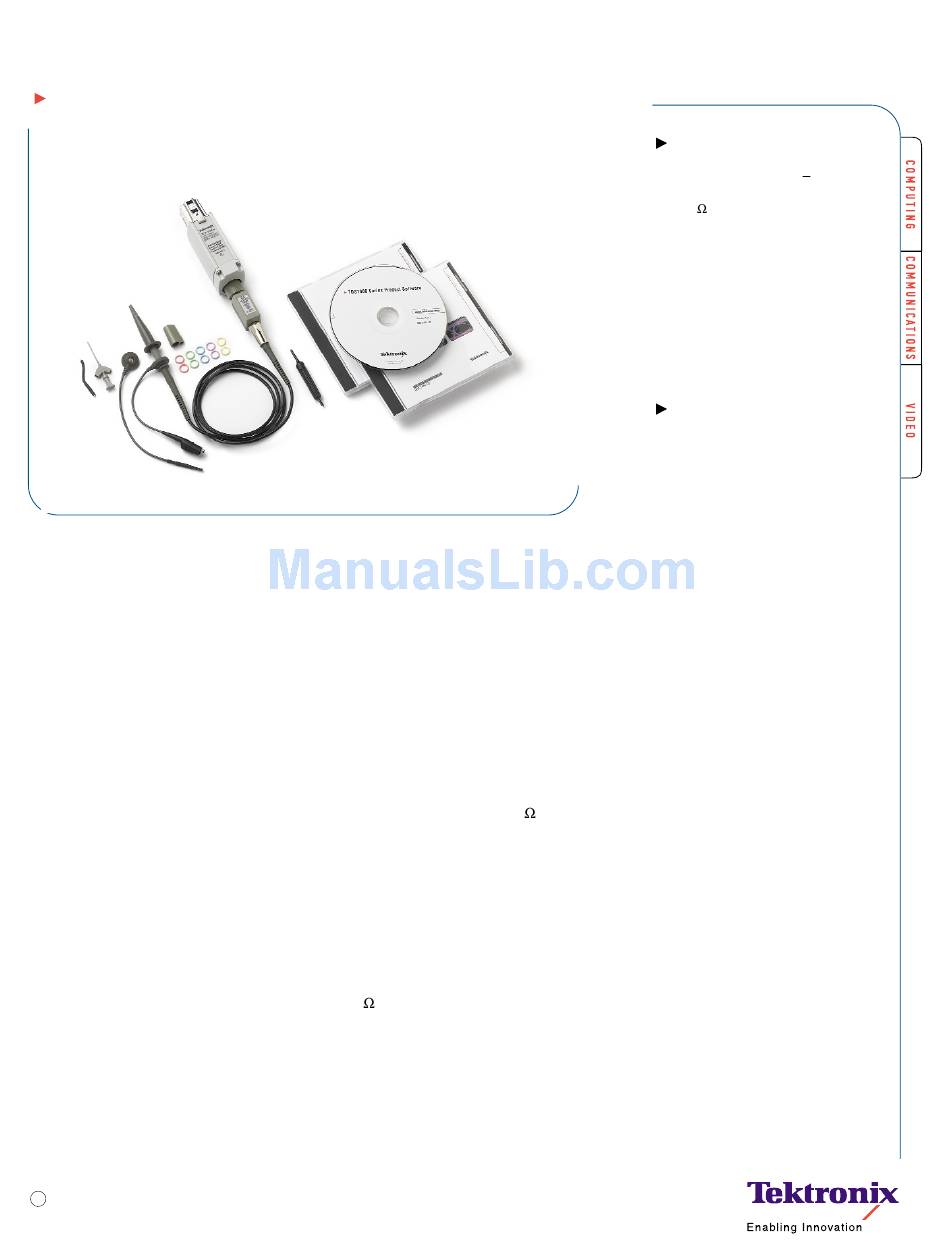

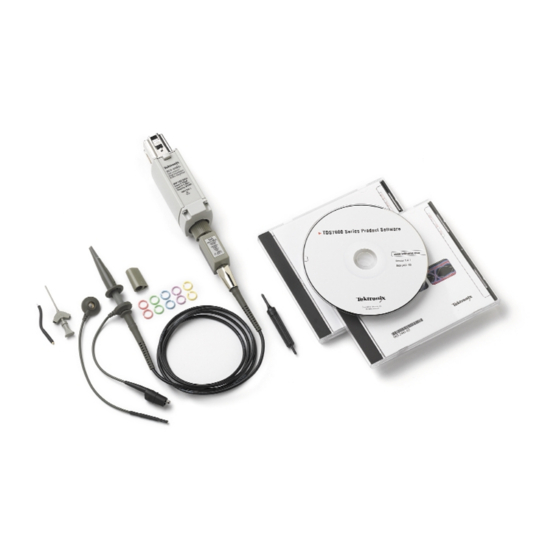

The TCA-1MEG high-impedance buffer
amplifier system extends the capabilities of
Tektronix high-performance oscilloscopes,
making them ideal for a variety of general-
purpose measurements. The TCA-1MEG
amplifier system provides a 1 M
is easily removed and replaced with a wide
array of TekConnect probes, amplifiers
and adapters.
This amplifier system delivers versatility to
Tektronix high-performance oscilloscopes
through the addition of input coupling (selec-
table), bandwidth limit (selectable), and a
1 M input that provides access to a wide
array of measurement solutions. These
solutions include general-purpose passive
probes, high voltage probes (passive single-
ended and active differential), micro-volt
differential probes and current probes.
Features & Benefits
Bandwidth – DC to >500 MHz
Input Impedance –
1 M /10 pF
Bandwidth Limiting –
Full/100 MHz/20 MHz
Input Coupling – DC/AC/GND
Includes P6139A, 500 MHz,
10X Passive Probe
TekConnect Interface
Delivers Superior Signal
Fidelity, Unparalleled
Versatility and Ease-of-use
Applications
Verification, Characterization
and Debug of Sophisticated
Designs in Communications,
Computer and
Semiconductor Electronic
Environments
– Jitter and Timing Analysis
(Computer Systems)
– Disk Drive Analysis
– Investigation of Transient
Phenomena
– Spectral Analysis
– Power Supplies/Inverters
(Switching and Linear)
– Semiconductor Devices
(SCRs, IGBTs, FETs, CMOS)
– Electronic Ballasts
– Industrial/Consumer
Electronics
– Mobile Communications
(Phone, Satellite, Relay
Stations)
– Motor Drives
– Transportation Systems
(Electronic Vehicles, Electric
Trains, Locomotives,
path that
Avionics)
