Quick Start Guide

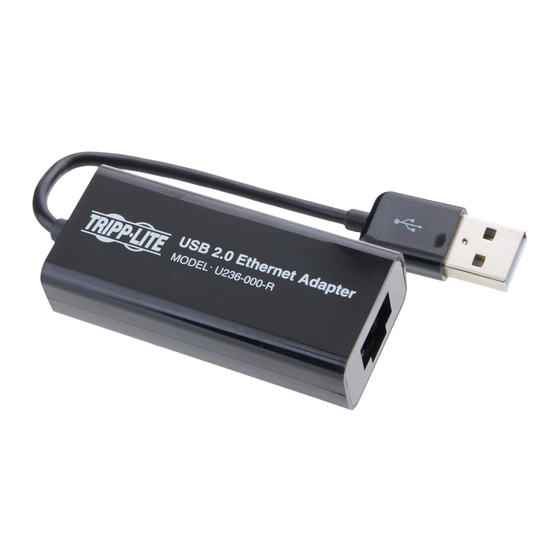

USB 2.0 10/100 Mbps Ethernet Adapter
Model: U236-000-R (Black)
USB 2.0 Gigabit Ethernet Adapter
Model: U236-000-GBW (White)
USB 3.0 Gigabit Ethernet Adapter
Models: U336-000-GBW (White) and U336-000-R (Black)
PROTECT YOUR INVESTMENT!
Register your product for quicker service
and ultimate peace of mind.
You could also win an ISOBAR6ULTRA
surge protector—a $50 value!
www.tripplite.com/warranty
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Copyright © 2014 Tripp Lite. All rights reserved.
14-02-222-93330C.indd 1
2/28/2014 3:30:36 PM
Advertisement
Related Manuals for Tripp Lite U236-000-R
Summary of Contents for Tripp Lite U236-000-R
- Page 1 Register your product for quicker service and ultimate peace of mind. You could also win an ISOBAR6ULTRA surge protector—a $50 value! www.tripplite.com/warranty 1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support Copyright © 2014 Tripp Lite. All rights reserved. 14-02-222-93330C.indd 1 2/28/2014 3:30:36 PM...
- Page 2 Product Features • U236-000-R ensures true 10/100 Mbps network speeds • U236-000-GBW supports Gigabit networks at speeds up to 480 Mbps • U336-000-R and U336-000-GBW ensure true 10/100/1000 Mbps network speeds • Compliant with IEEE 802.3, 802.3u, and 802.3ab standards • IEEE 802.3az (Energy Efficient Ethernet) compliant • Support full duplex with IEEE 802.3x flow control and half duplex with back-pressure flow control • Support IPv4 and IPv6 pack Checksum Offload Engine (COE) to reduce CPU loading • Suspend mode and remote wakeup supported via link-change, Magic Packet, Microsoft Wakeup Frame and external wakeup pin ® • Supports Wake-on-LAN System Requirements • An available USB port • Compatible with Windows , Mac and Linux ® ® ® Package Contents • USB Ethernet Adapter • Quick Start Guide...
- Page 3 Installation Important: Do not connect the adapter to your computer until you have installed the product driver. 1. Insert the CD that came with the product into your computer’s CD drive. If your computer does not have a CD drive, you can download the product drivers at www.tripplite.com/support. 2. Locate the driver applicable to your computer’s operating system and run it. 3. Follow the installation prompts that appear. 4. When the installation is finished, plug the USB connector on the adapter into an available USB port on your computer. Upon connecting the adapter to your computer, the device driver will finish installing. 5. You may be required to restart your computer to complete the installation. 6. Connect the Ethernet port on the adapter to your LAN port using a Cat5e/6 cable. Warranty and Warranty Registration 1-Year Limited Warranty TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of one (1) year from the date of initial purchase. TRIPP LITE’s obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under...
- Page 4 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user’s authority to operate this equipment. Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended. Do not use this equipment in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide. WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union) Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to: • Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country) • Send the new equipment back for recycling when this ultimately becomes waste Tripp Lite follows a policy of continuous improvement. Product specifications are subject to change without notice. 1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support 14-02-222 • 93-330C_revA...
