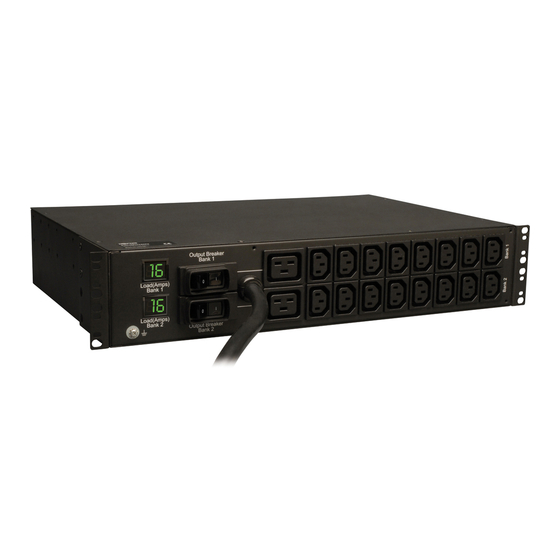

Tripp Lite PDUMH32HV Quick Manual

Single Phase Metered PDU, 7.4kW 32A 230V, 2U
Horizontal Rackmount, 18 outlets (2 C19, 16 C13),
3.6m cord, IEC-309 Blue 230V 32A input plug
MODEL NUMBER: PDUMH32HV
Description
Tripp Lite Metered Power Distribution Units / PDU systems continuously report output load level in amps to help
network managers prevent overloads and plan for future growth. Supplies equipment with continuous power
from any protected UPS, generator or mains input power source. Highly reliable design includes rugged all-metal housing and secure rackmount installation
with included mounting accessories.
Features
32A single phase 230V Metered Power Distribution Unit / PDU
Set of two lighted current meters separately report power consumption in amps for each output load bank
Attached IEC-309 32A (2P+E) input plug with 12 ft. / 3.6m line cord
2U horizontal rackmount format installs in two rack spaces
18 total 230V outlets (2 C19, 16 C13)
Outlets are arranged in two separately breakered and metered 16A load banks (each with 8 C13 and 1 C19 outlet)
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Front-panel grounding lug
Included cord retention brackets
TAA Compliant Version Available - Order Tripp Lite PDUMH32HVTAA

Specifications

OVERVIEW
PDU Type
OUTPUT
Metered
1 / 4
Highlights
Metered single phase 32A 230V
2U horizontal rackmount PDU
Set of 2 current meters reports
current in amps for each output
load bank
Attached 12 ft. / 3.6m cord with
IEC-309 32A (2P+E) input plug
18 total 230V outlets (2 C19, 16
C13)
Reversible housing, 12.5 in. /
31.75cm depth
Applications
Ideal for network configurations
requiring a metered PDU
Package Includes
2U metered PDU
Mounting brackets
Plug retention brackets
User manual
