Tripp Lite PDUMH30HVNET Specification Sheet

Model #: PDUMH30HVNET

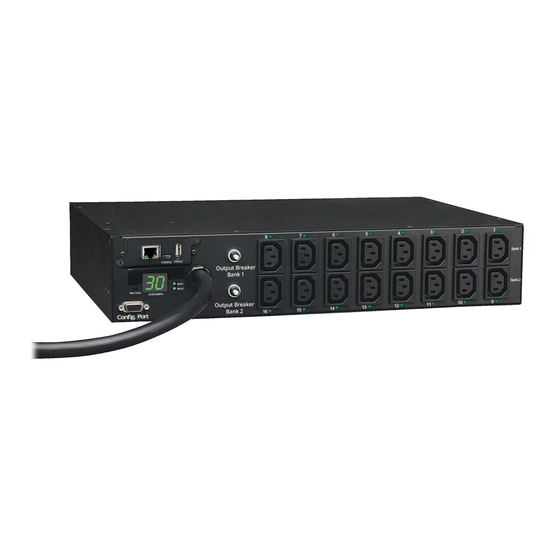

Single-Phase Switched PDU, 30A 208/240V, 2U Horizontal Rackmount, C13 outlets, NEMA L6-30P input plug
Description
Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off,
recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption.
PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH
interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed
for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads
as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware.
PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of
potential overloads before critical IT mains or branch breakers trip.
Applications
Ideal for network configurations requiring a switched, metered and monitored PDU supporting individual outlet rebooting, load shedding
and remote web/network current monitoring of critical networking components
Package Includes
Rackmount PDU
Installable 2U mounting brackets
Features
30A 208/240V Switched Power Distribution Unit / PDU with built-in web/network interface (Agency derated to 24A continuous)
Attached L6-30P 208/240V single phase input, 15 ft. / 4.6m input cord
2U horizontal rackmount form factor
16 switched c13 outlets
Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets
Network interface provides PDU control and data regarding input voltage and total output load level in amps
Digital display continuously reports output load in amps in 3 segments (load bank 1, load bank 2, total)
Supports user-specified alarm notification thresholds
In-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4
optional SRSWITCH door sensors
DHCP/Manual configuration support
10/100 Mbps auto-sensing
Real-time clock backup maintains the time of day and date even if the PDU is unpowered
Tiered access privileges allow an administrator and a guest to login via web browser
Alert notifications via email or SNMP traps offer immediate event notification
Highlights
Switched 30A 208/240V PDU, 2U horizontal rackmount format
Reports voltage, frequency & load level via ethernet interface
Visual current meter, Reversible housing
NEMA L6-30P input plug with attached 15 ft. / 4.5m line cord
16 switched c13 outlets with cord retention brackets
Temperature, humidity and contact closure monitoring options
