General Description

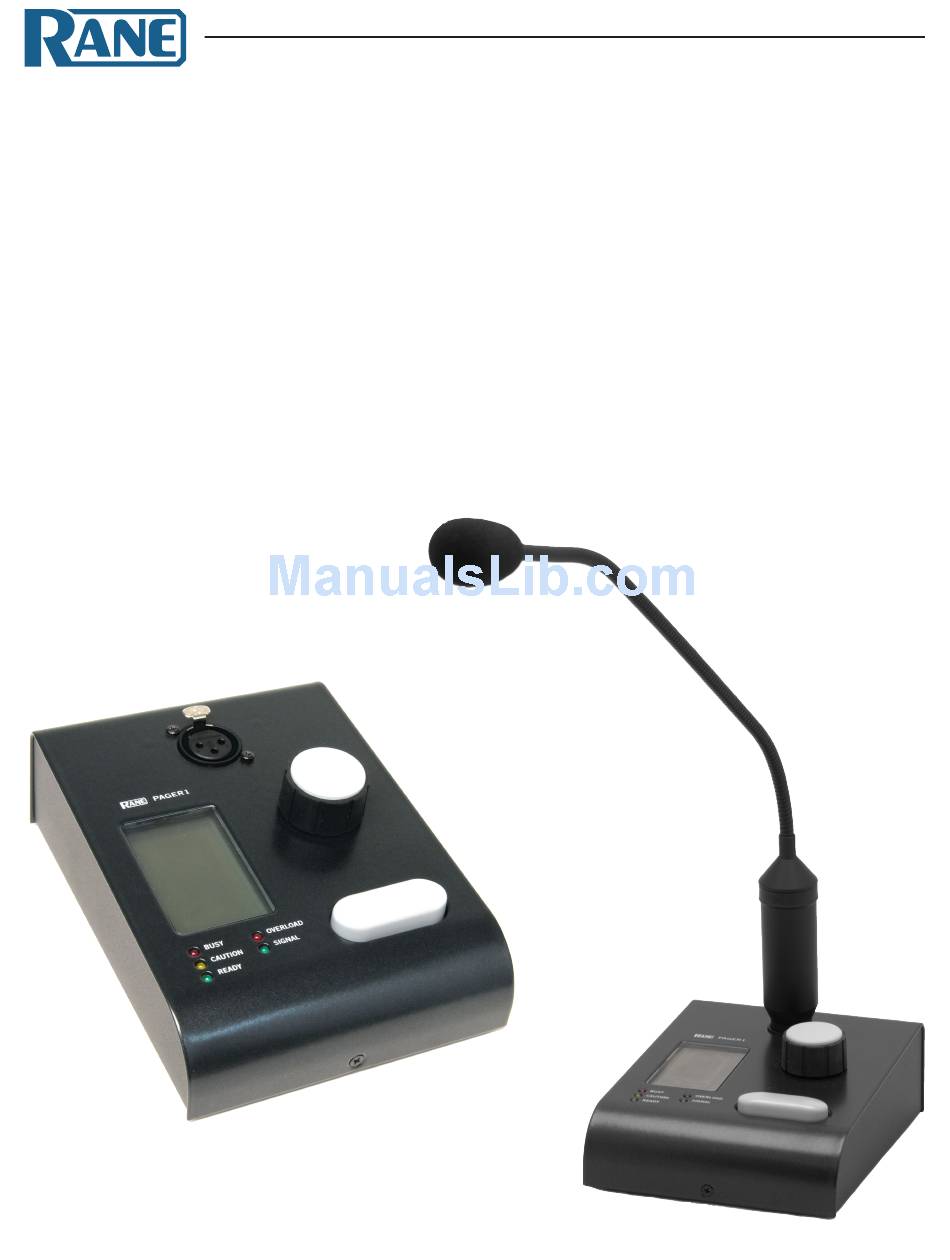

This RAD is a mic preamp with a paging zone(s) [Scenario]
selector with integrated push-to-talk switch. Busy, Caution
and Ready indicators inform end users when priorities clash. It
accepts any standard gooseneck mic (not included) and has built-
in selectable 24 V Phantom Power and a 13 dB pad. It normally
sits on a desk or table, and has lockdown features for security.
Setting up paging in Halogen Software is as easy as adding
zones to groups (called Scenarios), and then specifying the Sce-
narios into which each paging station can page into. The paging
hardware (the Pager1 RAD) then displays the Scenario options
available at that station. The user selects the desired Scenario,
waits for the Ready green light indicating that all zones in that
Scenario are ready to hear a message, presses the talk button, and
speaks into the microphone.
A gooseneck microphone is not included with the PAGER1.
The Pager1 includes the following set of paging controls:
• A selectable list of available Paging Scenarios.
• A talk button
• Mic Signal and Overload LEDs
• Indicators for Busy, Caution, and Ready (referring to the
selected Scenario).
• The Busy indicator lights when zones in the selected sce-
nario are in use by a higher or same priority page.
• The Caution indicator lights when zones in the selected
scenario are in use by a lower priority page.
• The Ready indicator lights when all zones in the scenario
are free to page into.
See the HAL Installation Manual or the Halogen software
Help for complete DR2 instructions. Information on HAL,
Halogen and peripherals is available at rane.com/hal.
PAGER1
PAGING RAD
Data Sheet-1
