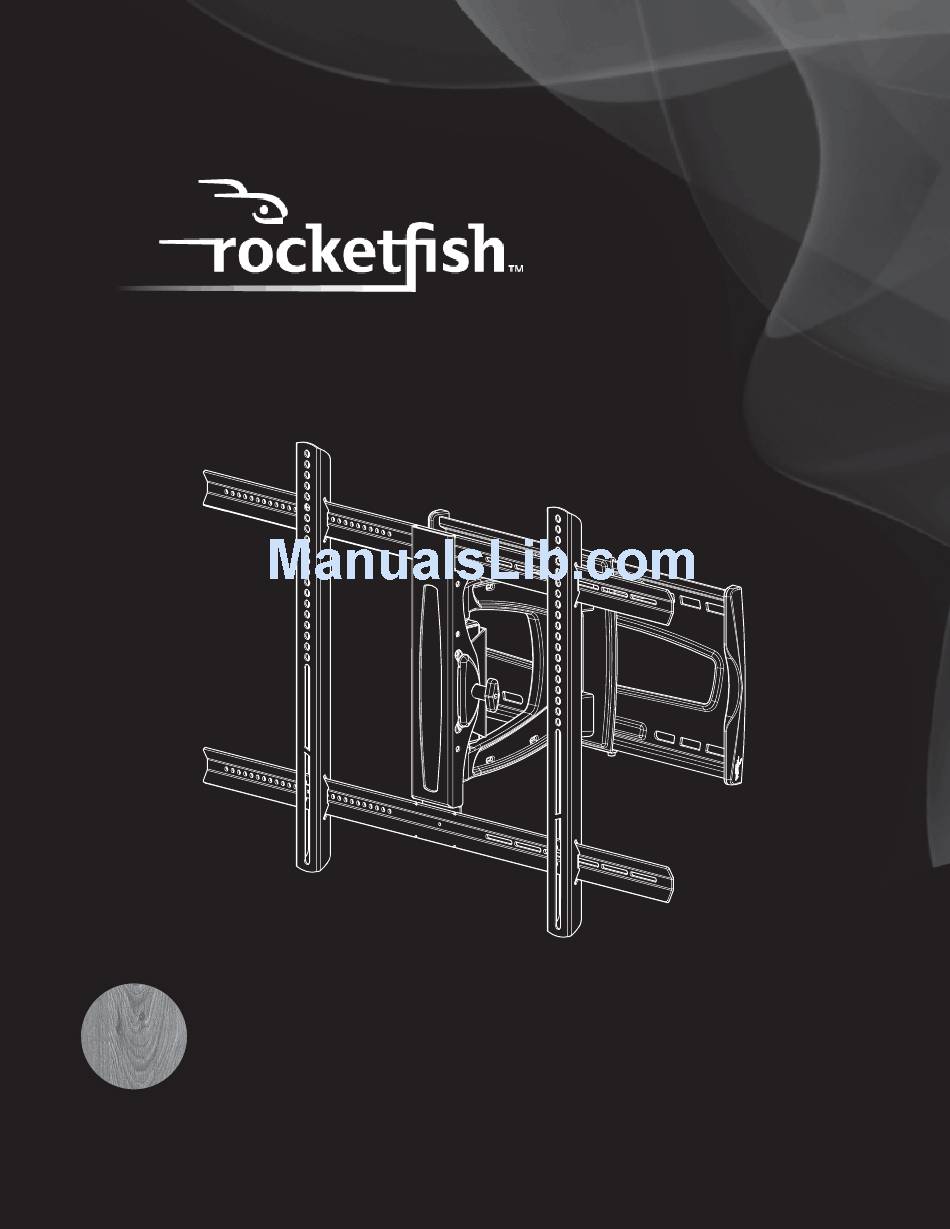

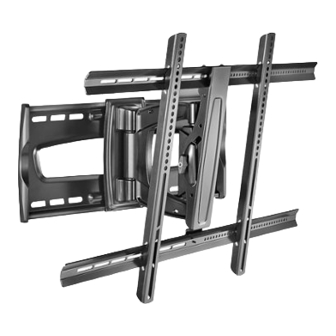

RF-TVMFM03V2
TV Wall Mount
For wood-stud
installation only
Before using your new product, please read these instructions to prevent any damage.
Safety information and specifications .................................2
Tools needed.................................................................................3
Package contents: parts ............................................................4
Package contents: hardware ...................................................5
Assembly instructions................................................................6
Assembly Guide
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RocketFish RF-TVMFM03V2
Summary of Contents for RocketFish RF-TVMFM03V2
-
Page 1: Table Of Contents
RF-TVMFM03V2 TV Wall Mount Safety information and specifications .........2 Tools needed.................3 Package contents: parts ............4 Package contents: hardware ...........5 Assembly instructions..............6 For wood-stud Assembly Guide installation only Before using your new product, please read these instructions to prevent any damage. -
Page 2: Safety Information And Specifications
We’re here for you about the safety of the installation, contact Customer Service or call a qualified contractor. Rocketfish is not www.rocketfishproducts.com responsible for damage or injury caused by incorrect For customer service, call: installation or use. -
Page 3: Tools Needed
RF-TVMFM03V2 TV Wall Mount Tools needed You will need the following tools to assemble your new TV wall mount: Edge-to-edge Pencil Level Drill stud finder Phillips screwdriver Socket wrench with 7/32" (5.5 mm) wood 1/2" (13 mm) socket or drill bit for wood stud... -
Page 4: Package Contents: Parts
RF-TVMFM03V2 TV Wall Mount Parts Package contents: parts Make sure that you have all the parts necessary to assemble your new TV wall mount: A Right vertical TV B Left vertical TV C Horizontal TV bracket (2) bracket (1) bracket (1) -
Page 5: Package Contents: Hardware
RF-TVMFM03V2 TV Wall Mount Package contents: hardware Make sure that you have all the hardware necessary to assemble your new TV wall mount: TV Hardware Bag Label Hardware Qty. Label Hardware Qty. M4 × 12 mm screw M4 × 35 mm M8 ×... -
Page 6: Assembly Instructions
RF-TVMFM03V2 TV Wall Mount Assembly instructions Step 1 Determine whether your TV has a flat back or an irregular or obstructed back Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from damages and scratches. - Page 7 RF-TVMFM03V2 TV Wall Mount Step 2 Select screws, washers, and spacers Select the hardware for your TV (screws, washers, and spacers). A limited number of TVs come with mounting hardware included. (If there are screws that came with the TV, they are almost always in the holes on the back of the TV.) If you don't know the correct length and diameter of the mounting screws your TV...
- Page 8 RF-TVMFM03V2 TV Wall Mount Step 3 - Option 1: Attaching the mounting hardware to TVs with a flat back Center the brackets vertically on the back of your TV, then align the holes you noted on the right vertical TV bracket (A) and left vertical TV bracket (B) with the screw holes on the back of your TV.
- Page 9 RF-TVMFM03V2 TV Wall Mount Step 3 - Option 2: Attaching the hardware to TVs with an irregular or obstructed back Place the spacers (L) into the screw holes on the back of your TV. Align the holes you noted on the right vertical TV bracket (A) and left vertical TV bracket (B) with the spacers and washers on the back of your TV.
- Page 10 RF-TVMFM03V2 TV Wall Mount Step 4 Install the horizontal TV brackets Slide the horizontal brackets (C) through the metal guides on the vertical TV brackets until they are centered. Secure the horizontal TV brackets to the vertical TV brackets using the 8-32 x 9/16" Phillips head screws (V).
- Page 11 RF-TVMFM03V2 TV Wall Mount Step 5 Determine wall-mount location Note: • For more detailed information on determining where to drill your holes, visit our online height-finder at: http://mf1.bestbuy.selectionassistant.com/index.php/heightfinder • Your TV should be high enough so your eyes are level with the middle of the screen. Normally, 40 to 60 inches from the ground.
-
Page 12: Install Wall Plate To Wood Wall
16" (51 x 102 mm). 40.6 cm Nominal 1.5 x 3.5 in. (38 x 89 mm) You’ll need RF-TVMFM03V2 Template • Gabarit • Plantilla Template (F) Dessus Dessus Parte superior Parte superior Note: For wood frame installations, use a stud Tools Needed Outils nécessaires... - Page 13 RF-TVMFM03V2 TV Wall Mount Step 7 Attach the arm assembly Hang the upper lip of the arm assembly (D) over the top edge on the wall plate (E), then lower the bottom lip of the arm assembly into the bottom edge on the wall plate.
- Page 14 RF-TVMFM03V2 TV Wall Mount Step 8 Leveling the arm assembly Loosen the two screws on the arm assembly using the 5/32" hex key (Y). Using a level, adjust the arm assembly ± 6° either clockwise or counter-clockwise to level it.
- Page 15 RF-TVMFM03V2 TV Wall Mount Step 9 Attach your TV to the wall mount Slide the top edge of the arm assembly under the upper horizontal bracket. Pivot the TV/bracket assembly down to align it with the bottom edge of the arm assembly (D).
-
Page 16: Adjusting The Swivel Tension
RF-TVMFM03V2 TV Wall Mount Step 10 Adjusting the swivel tension Adjust the swivel tension using the 5/32" hex key (Y). When you are done adjusting the swivel, tighten the screw, but do not overtighten. You’ll need Y (1) Need help? Call 800-620-2790... - Page 17 RF-TVMFM03V2 TV Wall Mount Step 11 Adjusting the forward or backward tilt Adjust the tilt of your TV forward or backward 11° using your fingers or a 3/16" hex key (Z). When you are done adjusting the tilt tension, retighten the knob, but do not overtighten.
-
Page 18: Managing Cables
RF-TVMFM03V2 TV Wall Mount Step 12 Managing cables • Use the cable cover (G) to bundle the cables together, then attach to the arm assembly (D). • Use cable ties (X) to secure the cables to the arm assembly (D). - Page 19 7601 Penn Avenue South, Richfield, MN 55423-3645 USA © 2013 BBY Solutions, Inc. All rights reserved. ROCKETFISH is a trademark of BBY Solutions, Inc. All other products and brand names are trademarks of their respective owners. Part number: 6907-002044 00...
