QUICK SETUP GUIDE
RF-TVMFM02

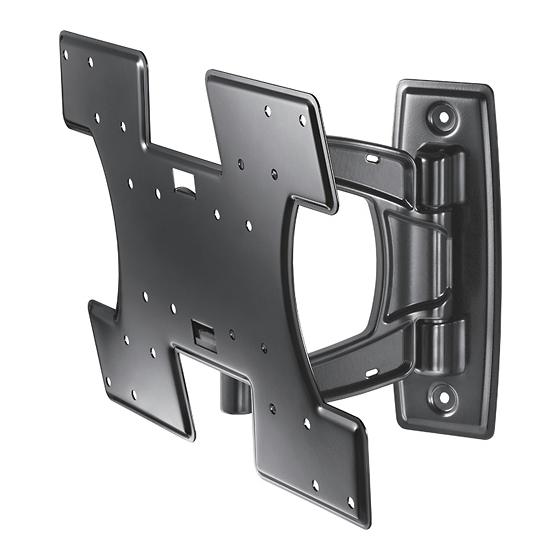

Thank you for choosing the Rocketfish RF-TVMFM02.
The RF-TVMFM02 TV mount is designed to support a
flat-panel TV weighing up to 60 lbs. (27.2 kg).
M6 bag
Package contents
L M6 × 12 mm screws (4)
A TV bracket (1)
M M6 × 20 mm screws (4)
B Arm assembly (1)
Lag bolt bag
N M6 × 35 mm screws (4)
C
O M6/M8 washers (4)
C Concrete anchor (2)
M
P M6/M8 spacers (4)
D Lag bolt washer (2)
Y
M8 bag
E 5/16 in. × 2-3/4 in. lag bolt (2)
CM
M4 bag
Q M8 × 40 mm screws (4)
MY
Hex key bag
F M4 × 12 mm screws (4)
CY
R 3/16 in. hex key (1)
G M4 × 30 mm screws (4)
CMY
S 5/32 in. hex key (1)
H M4/M5 washers (8)
K
Cap screw
I M4/M5 spacers (4)
M5 bag
T Cap screw (1)
Cable ties
J M5 × 12 mm screws (4)
U 8 in. nylon cable ties (5)
K M5 × 30 mm screws (4)
Lag bolt bag
M4 bag
M4
×
12 mm
M4
×
30 mm
M4/M5
M5 bag
M5
×
12 mm
M5
×
30 mm
M6 bag
M6
×
12 mm
M6
×
20 mm
M6
M8 bag
Hex key bag
M8
×
40 mm
Cap screw
Cable ties
Tools you will need:
• Stud finder
• Socket wrench with
• Awl
1/2 in. socket or
• Pencil
adjustable wrench
• Level
• 7/32 in. wood drill bit
• Tape measure
• 3/8 in. masonry drill bit
• Phillips screwdriver
(concrete only)
• Hammer (concrete only)
• Power drill
1 Install the TV bracket
Option 1: Installing for a flat mounting surface
1 Align the TV bracket (A) with the screw holes on the back of the TV.
2 Place the M4/M5 washers (H) or M6/M8 washers (O) over the holes in the TV bracket,
then insert the M4 screws (F), M5 screws (J), or M6 screws (L or M) through the washers.
3 Tighten the screws until they are snug against the TV bracket. Do not over tighten.
Option 2: Installing for an obstructed mounting surface
Note: Use additional washers (H) with M4/M5 hardware only.
1 Align the TV bracket (A) with the screw holes on the back of the TV.
2 Place the M4/M5 washers (H) or M6/M8 washers (O) over the holes in the TV bracket,
then insert the M4 screws (G), M5 screws (K), or M6 screws (N or Q) through the washers.
3 Tighten the screws until they are snug against the TV bracket. Do not over tighten.
5/16 in.
×
2-3/4 in.
M4/M5
×
35 mm
M6/M8
M6/M8
3/16 in.
5/32 in.
2 Install the arm assembly
Note: Any material covering the wall must not exceed 5/8 in. (16 mm).
Option 1: Installing to a wood stud wall
1 Locate the stud. Verify the center of the stud with an awl
or thin nail or use an edge-to-edge stud finder.
2 Level the arm assembly (B) and mark the hole locations.
3 Drill pilot hole to a depth of 3 in. using a 7/32 in. diameter drill bit.
4 Align the arm assembly (B) with the pilot holes.
5 Place the washers (D) over the holes in the
arm assembly, insert the lag bolts (E)
through the washers, then tighten
the lag bolts only until the washers
are pulled firmly against the arm
assembly.
CAUTION: Avoid potential injuries or
or
or
property damage!
DO NOT over-tighten the lag bolts (E).
9-7/10 in.
9
7
/
in.
10
7 in.
7 in.
TV shifts 7 in. from the home position
to full extension.
Option 2: Installing to a solid concrete or concrete block wall
1 Level the arm assembly (B) and mark the hole locations.
2 Drill pilot hole to a depth of 3 in. using a 3/8 in. diameter drill bit.
3 Insert the concrete wall anchors (C) into the pilot holes
and make sure that the anchors are seated flush with
the concrete surface.
4 Align the arm assembly (B) with the anchors.
5 Place the washers (D) over the holes in the arm assembly,
insert the lag bolts (E) through the washers, then tighten
the lag bolts only until the washers (D) are pulled firmly
against the arm assembly.
CAUTION: Avoid potential injuries or property damage!
DO NOT over-tighten the lag bolts (E).
or
or
or
Wall
TV
<5/8 in.
(75 mm)
3 in.
CAUTION: To prevent property
damage or personal injury, never
drill into mortar between blocks.
Mount wall plate directly onto the
concrete surface.
(75 mm)
3 in.
