RocketFish RF-TVMFM02 Assembly Manual

Wall mount
Hide thumbs Also See for RF-TVMFM02:

Advertisement

Table of Contents

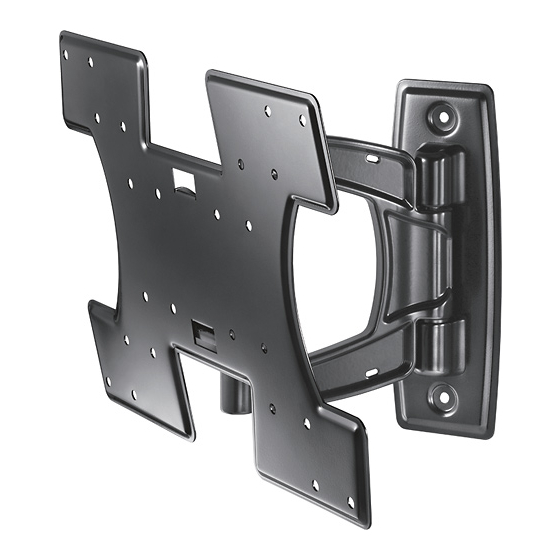

RF-TVMFM02
TV Wall Mount
For wood-stud or
solid concrete/concrete block
installation
Safety information and specifications .................................2
Tools needed.................................................................................3
Parts..................................................................................................4
Assembly instructions................................................................6
Assembly Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF-TVMFM02 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RocketFish RF-TVMFM02

Summary of Contents for RocketFish RF-TVMFM02

  • Page 1 RF-TVMFM02 TV Wall Mount Safety information and specifications .........2 Tools needed.................3 Parts....................4 Assembly instructions..............6 For wood-stud or solid concrete/concrete block Assembly Guide installation...

  • Page 2: Safety Information And Specifications

    Wall-mount weight: 12.45 lb (5.6 kg) about the safety of the installation, contact Customer We’re here for you Service or call a qualified contractor. Rocketfish is not responsible for damage or injury caused by incorrect www.rocketfishproducts.com installation or use.

  • Page 3: Tools Needed

    RF-TVMFM02 TV Wall Mount Tools needed You will need the following tools to assemble your new TV wall mount: Stud finder Pencil Level Phillips screwdriver Hammer (concrete only) Socket wrench with 1/2" (13 mm) socket or adjustable wrench 7/32" (5.5 mm) wood...
  • Page 4 RF-TVMFM02 TV Wall Mount Parts Package contents: parts Make sure you have all the parts necessary to assemble your new TV wall mount: A TV Bracket (1) B Arm assembly (1) Need help? Call 800-620-2790...
  • Page 5 RF-TVMFM02 TV Wall Mount Hardware Package contents: hardware Make sure you have all the hardware necessary to assemble your new TV wall mount: Label Hardware Qty. Label Hardware Qty. Concrete M6 × 20 mm anchor screw M6 × 35 mm...

  • Page 6: Assembly Instructions

    RF-TVMFM02 TV Wall Mount Assembly instructions Step 1 Install the TV bracket Option 1: Installing for a flat mounting surface Align the TV bracket (A) with the screw holes on the back of the TV. Place an M4/M5 washer (H) or an M6/M8 washer (O) over each of the four screw holes in the TV bracket, then insert an M4 screw (F), M5 screw (J), or M6 screw (L or M) through each washer.
  • Page 7 RF-TVMFM02 TV Wall Mount Step 1 Install the TV bracket (continued) Option 2: Installing for an obstructed mounting surface Note: Use additional washers (H) with M4/M5 hardware only. Align the TV bracket (A) with the screw holes on the back of the TV.
  • Page 8 RF-TVMFM02 TV Wall Mount Step 2 Install the arm assembly Note: Any material covering the wall must not exceed 5/8 in. (16 mm). Option 1: Installing on a wood stud wall Locate the stud. Verify the center of the stud with an awl or use an edge-to-edge stud finder.
  • Page 9 RF-TVMFM02 TV Wall Mount Step 2 Install the arm assembly (continued) Option 2: Installing to a solid concrete or concrete block wall Level the arm assembly (B) and mark the two hole locations. Drill pilot holes to a depth of 3" (75 mm) using a 3/8 in. (10 mm) diameter masonry drill bit.
  • Page 10 RF-TVMFM02 TV Wall Mount Step 3 Mount the TV to the wall Slide the top and bottom edges of the arm assembly under the metal tabs on the TV bracket. Secure the arm assembly to the TV bracket with the cap screw (T) using the 3/16" hex key (R).
  • Page 11 RF-TVMFM02 TV Wall Mount Step 4 Adjust the viewing angle When the television is mounted onto the arm assembly and secured, the assembly can be adjusted to make the TV level. Loosen the two screws on the arm assembly using the 5/32" hex key (S).
  • Page 12 RF-TVMFM02 TV Wall Mount Step 5 Adjust the swivel tension Adjust the swivel tension using the 5/32" hex key (S). You’ll need S (1) Need help? Call 800-620-2790...
  • Page 13 RF-TVMFM02 TV Wall Mount Step 6 Manage the cables Use one or more of the five cable ties (U) to bundle and secure the TV cables to the arm assembly. You’ll need U (5) Need help? Call 800-620-2790...
  • Page 14 RF-TVMFM02 TV Wall Mount Step 7 Adjust the tilt Adjust the tilt of the TV forward or backward 10° using your fingers or the 3/16" hex key (R). 10° 10° You’ll need R (1) Need help? Call 800-620-2790...
  • Page 15 RF-TVMFM02 TV Wall Mount This page intentionally left blank Need help? Call 800-620-2790...
  • Page 16 7601 Penn Avenue South, Richfield, MN 55423-3645 USA © 2011 BBY Solutions, Inc. All rights reserved. ROCKETFISH is a trademark of BBY Solutions, Inc. All other products and brand names are trademarks of their respective owners. Part number: 6907-002018 <01>...
