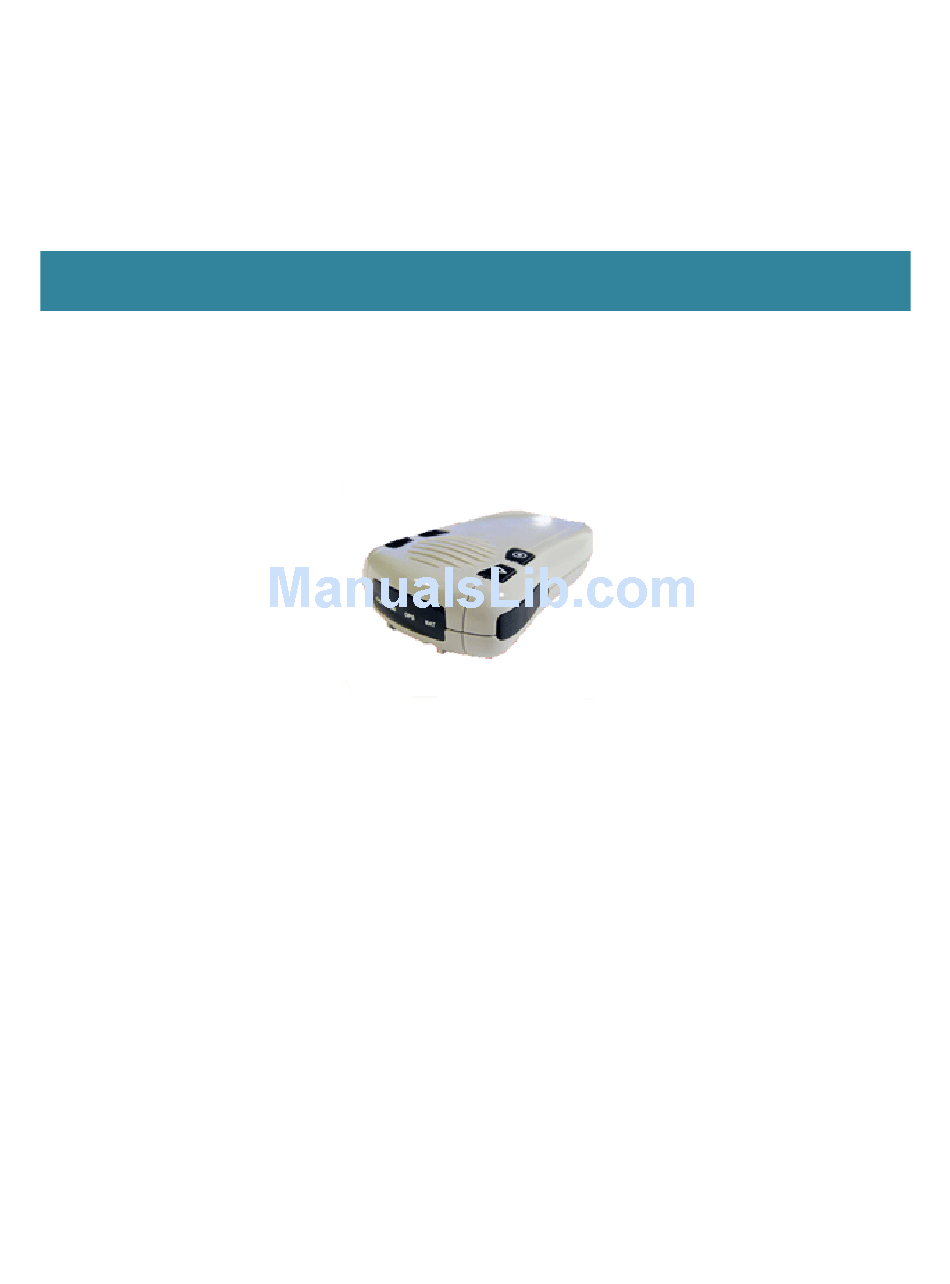

- Page 1 Enfora Mini MT GPS Tracking Device (Also known as “QuickTrackPro”) User Manual & Website Guide Ver. 4.00 (December 20, 2011)
-
Page 2: Keys And Indicators
Enfora Mini MT User Manual KEYS AND INDICATORS Press this key then feel a vibration to start up Press this key then feel a vibration to start up Press this key then feel a vibration to start up Press this key then feel a vibration to start up RED –... - Page 3 Enfora Mini MT User Manual LED INDICATORS MEANINGS CALL Low Battery less than 20% Slow Blink 250mS/10 Sec. When Hibernates (Sleeping) Low Battery less than 5% turns OFF. Low Battery less than 20% When Slow Blink 250mS/10 Sec. Searching Slow blinking 500mS/10...
- Page 4 Enfora Mini MT User Manual Extended Battery Packs (Optional) (Check with your supplier for availability) [Optional] Extended Battery Pack CP1010 [Optional] Extended Battery Pack CP1030 Page 4...
- Page 5 Enfora Mini MT User Manual HOW TO INSTALL/REMOVE BATTERY Page 5...
- Page 6 Enfora Mini MT User Manual HOW TO CHARGE EXTENDED BATTERY Popping up battery adaptor from bottom edge, remove it from battery compartment Charger turns on a solid green when AC plugged in CHARGE WITH DESIGNATED CHARGER ONLY! During charging, charger stays in solid red.
- Page 7 Enfora Mini MT User Manual HOW TO INSTALL EXTENDED BATTERY Push this button on battery adaptor to test battery level Gently slide in and fit adaptor into battery compartment Slide-in adaptor into battery compartment – THIS SIDE IN FIRST! Page 7...
- Page 8 Enfora Mini MT User Manual HOW TO INSTALL START UP DEVICE VERY IMPORTANT: Press any buttons above and receive a vibration confirming device successfully started up. If not received, remove battery adaptor, rest for 10 seconds and reinsert. DEVICE FACING UP!
- Page 9 Enfora Mini MT User Manual HOW TO LOCK UP WATER-RESIST CASE Push the two locks to lock up lid Page 9...
- Page 10 Enfora Mini MT User Manual HOW TO CHARGE STANDARD BATTERY (Internal battery) The internal STANDARD BATTERY (3.7 V 1400 mAh) can be charged via a universal “USB-to-Mini USB cable”. This cable is available in most of computer stores or electronic stores...
-
Page 11: Product Warranty
Avoid over discharge (overuse) Always use the original charger. PRODUCT WARRANTY 1. Enfora Mini MT carries One-Year (1 year) limited manufacturer warranty. 2. Extended Battery Pack carries Six-month (6 months) limited manufacturer warranty. TECHNICAL SUPPORT SONIYA TECHNOLOGIES INTERNATIONAL - www.soniyatech.com... - Page 12 Enfora Mini MT User Manual Specification Characteristics Application Interface Interface: USB Host protocols: AT commands, UDP API Internal protocols: UDP API, TCP API L x W x H: Weight102 x 60.5 x 25.4 mm API control/status: AT commands, UDP API, TCP API, AT commands over Housing: Polycarbonate Weight: <...
-
Page 13: Regulatory Compliance
Enfora Mini MT User Manual Regulatory Compliance The modem was tested and certified to meet FCC Parts 15 in a stand-alone configuration, which demonstrated that the GSM2000 Mini-MT complies with Part 15 emission limits. FCC Part 22 & Part 24 is covered by the Enfora Enabler-IIG "modular approval" process for a transmitter. - Page 14 Enfora Mini MT User Manual SONIYA TRACKING SERVICE OPERATION GUIDE www.UnitedTracking.com Ver. 4.00 Technical Support: support@soniyatech.com Page...
-
Page 15: User Login
Enfora Mini MT User Manual USER LOGIN Browser Compatibility - computer based: [Recommended] Mozilla Firefox 3.0 or above, downloadable from www.mozilla.org [Supported] Microsoft IE 6.0 or above, Google Chrome, Apple Mac Safari, Opera. [Not Recommended] Aol, Opera, and other non-mainstream. - Page 16 Enfora Mini MT User Manual This page provides a summary of a day recorded. Date can be selected from by calendar. There are four function buttons lead to: GeoFence, My Device, Reception, and My Airtime. Select a device to Click “Hide Panel” slide...
- Page 17 Enfora Mini MT User Manual The following two screens when control panel is slide off, exposing view of map in two ways: Map (street map) and Satellite (satellite photo taken sometimes ago): Click “Show Panel” slide Zoom control to zoom in...
- Page 18 Enfora Mini MT User Manual A colored arrow indicates target moving with direction at the moment. Screen refreshes based on Interval setting. Multiple units are shown in different colors. This colored arrow moving on map is the This section displays details of most...
- Page 19 Enfora Mini MT User Manual Select new interval to send over to device. Confirmation by device is totally depends on the current status of device: Awake (device is in motion): Change delivered will be Click on this button to accepted by device immediately, and confirmation will be open set interval sent back (shown in red).
- Page 20 Enfora Mini MT User Manual This page contains comprehensive history information to manage your report or diagnose problem. DEVICE RECEPTION HISTORY Three types of history record available in this page: Device Reception History: Record of all incoming signals received from device, whether locations is successfully detected (captured) or non-detectable (seeking).
- Page 21 Enfora Mini MT User Manual CAPTURED LOCATION HISTORY Select date/time period to query history records. Maximum 7 days per query. If query period is more than 7 days, split into different phases less than 7 days. Captured Location History ...
- Page 22 Enfora Mini MT User Manual Print or Download Mode Click “Download” button to download history as CSV file that can be viewed with MS-Excel View in Playback Mode being playing now already played not played yet Playback control buttons: Select map detail level to zoom...
- Page 23 Enfora Mini MT User Manual View in Activity View Mode Each page in Activity View can only display 100 locations. For more, click on Prev 100 or Next100 Stop Sign: with no speed (stopped) Green light: with a speed (travelling)
- Page 24 Enfora Mini MT User Manual This page shows devices status of airtime service. INACTIVE: out of airtime service. ACTIVE: in airtime service OFFLINE: long time out of airtime service View/Pay : click here to view service status or purchase new airtime.
- Page 25 Enfora Mini MT User Manual This is the page for GeoFence and alert notifications management. Notification is text messages delivered to mobile phone that has texting (SMS) service enabled. Notification can also be an email. Types of notification are explained below: ...
- Page 26 Enfora Mini MT User Manual STEP 1: Set up Text-To-Phone first User can Add or Delete notification phones from here IMPORTANT: Phone number format must EXACTLY match instructed, or will not work: e.g. 1.4089887719 for phone number (408) 988-7719 Email (optional) to be copied for...
- Page 27 Enfora Mini MT User Manual STEP 2: Add/Edit texting notifications GeoFence is user defined area. When unit is detected entering or leaving this range, a notification alert will be generated and delivered to Notification Phone as text message. Arriving Location - Entering a defined area centered by a user defined address (so called GeoFence).
- Page 28 Enfora Mini MT User Manual This page is for user to: Check Airtime Service Status, and purchase new airtime. Update profile, e.g. email to receive service notice and recover lost password. User can also adjust time zone. (All date time in history are in location time zone as set at the time.)
