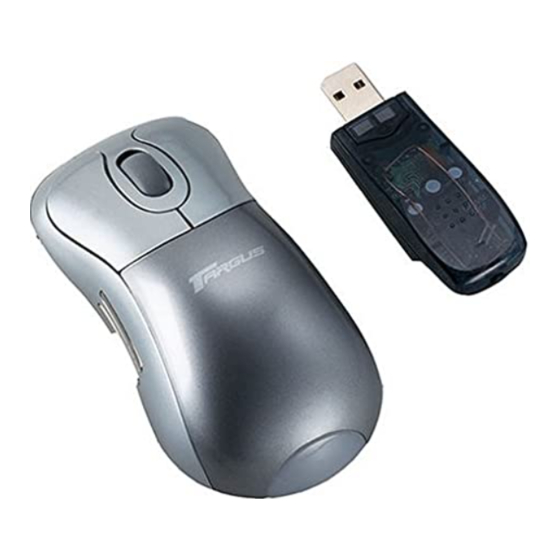

Targus Wireless
RF Mouse
Making Your Mobile Life Easier.
USER'S GUIDE
Visit our Web site at: www.targus.com
Making Your Mobile Life Easier.
Features and specifications are subject to change without notice. © 2003 Targus Corp.
400-0110-001A
B
H
B
T
M
A
S
L
P
N
Y
L
A
T
H
K
S
RUSSELS
ANNOVER
ARCELONA
OKYO
ILANO
MSTERDAM
INGAPORE
ONDON
ARIS
EW
ORK
OS
NGELES
ORONTO
ONG
ONG
YDNEY
Advertisement
Table of Contents
Related Manuals for Targus PAWM10
Summary of Contents for Targus PAWM10
- Page 1 Targus Wireless RF Mouse Making Your Mobile Life Easier. USER’S GUIDE Visit our Web site at: www.targus.com Making Your Mobile Life Easier. Features and specifications are subject to change without notice. © 2003 Targus Corp. 400-0110-001A RUSSELS ANNOVER ARCELONA OKYO...
- Page 3 RF mouse models: • PAWM10 – Wireless Mini Optical Mouse with Power Management In addition to this user’s guide, depending on the RF mouse...
-
Page 4: System Requirements
Targus Wireless RF Mouse System Requirements To use the RF mouse, your computer must meet the following hardware requirements and run one of the operating systems listed below. Hardware ® • PC with a Pentium processor or equivalent and a hard disk drive •... -
Page 5: Installing The Batteries
Targus Wireless RF Mouse Using the RF Mouse Installing the Batteries 1 If the mouse is on, slide the on/off switch on the bottom of the mouse to the “off” position. 2 Remove the battery cover from the top of the mouse by pressing the battery cover hinge located on the bottom of the mouse and sliding it off. -
Page 6: Establishing A Communications Link
Targus Wireless RF Mouse Establishing a Communications Link (All RF Mouse Models) The RF mouse has 256 identification codes that allow the mouse and its receiver to operate without interference from other radio frequency devices. After your computer detects the USB receiver and the driver... -
Page 7: Mouse Power Management
Targus Wireless RF Mouse Mouse Power Management To power the mouse on and off, slide the on/off switch at the bottom of the mouse to the desired position. Low battery indicator Sensor strips PAWM10 Mouse When power is on, the mouse goes into "sleep mode" after 8 minutes of no use. -
Page 8: Comfortable Usage
Targus Wireless RF Mouse • The RF mouse will enter a suspend mode at the same time your computer does. To activate the mouse, touch the sensor strips on the side of the mouse. • If your computer has a metal case that contains aluminum or magnesium, use the RF mouse to the side. -
Page 9: Things To Remember
Targus Wireless RF Mouse If you feel discomfort or numbness in your hands, wrists, arms, shoulders, neck, or back while typing, consult a qualified medical professional. Things to Remember Batteries General • You must establish a communications link every time you change the batteries. -
Page 10: Specifications
Targus Wireless RF Mouse Specifications Model PAWM10 Button Count 3 with scrolling wheel ID Selections Electromagnetic Characteristics CE - Type acceptance: ETS 300 220 short (EMC) range devices Distance Between Mouse and Receiver 4 feet (1.2 m) Mouse Carrier 27.045 MHz Frequency 27.145 MHz... -
Page 11: Troubleshooting
Targus Wireless RF Mouse Mouse Standby Current Below 4mA Mouse Sleep Mode Current Below 50uA Modulation Type Transmission Rate 4K bps Error Detection 8-bit CRC Troubleshooting What do I do if the RF mouse does not work? • Make sure that the polarity of the batteries is correct. The... -
Page 12: Technical Support
Targus Wireless RF Mouse What do I do if the response time of the RF mouse is slow or the mouse intermittently stops working? • Increase the distance between the mouse’s receiver and the rest of your computer equipment. • Increase the distance between the mouse’s receiver and the base units of other wireless devices. -
Page 13: Product Registration
(if applicable). Warranty Targus warrants this product to be free from defects in materials and workmanship for one year. If your Targus accessory is found to be defective within that time, we will promptly repair or replace it. This warranty does not cover accidental damage, wear and tear, or consequential or incidental loss. -
Page 14: Regulatory Compliance
Targus Wireless RF Mouse Regulatory Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
