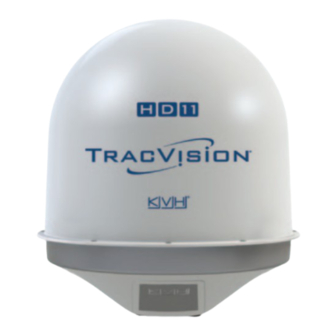

KVH Industries TracVision HD11 User Manual

Using the Web Interface
You can view the ACU's IP address and serial number on the ACU's front panel display. Press the ACU's MENU button until
you see the "ABOUT SYSTEM" Menu, select it, and then scroll through until you see the desired information.
Using the iPhone/iPad/iPod touch App
Download the FREE TracVision HD11 App from the Apple iTunes store!
Using the ACU
T R A C K I N G
D I R E C T V 1 0 1 W
CONTROL UNIT
MENUS CHANGE ACCEPT
ANTENNA
POWER
Your TracVision HD11 system has been designed to be easy to operate and
maintain. View the system's status, change satellites, and modify settings
using any one of these interfaces:
• Web interface
• KVH TracVision HD11 iPhone
• Antenna Control Unit (ACU) screen and buttons
Remember, for best results, the antenna(s) needs a clear view of the sky.
Objects such as bridges and boat masts can block satellite signals.
1.
Using a computer or smartphone connected to the HD11's Ethernet or Wi-Fi
network, simply enter the ACU's IP address into your web browser's address
bar. Alternatively, you can enter: http://hd11-<ACU serial number>.local
2.
Log into the web interface:
username: admin
password: password
1.
Using your iPhone/iPad/iPod touch, connect to the HD11's Ethernet
or Wi-Fi network.
2.
Open the TracVision HD11 App. Then select your HD11 system (displayed
as hd11-<ACU serial number>.local) in the "Select HD11 Device" window.
Use the buttons on the front panel of the ACU to view or change system settings.
EXIT
TracVision
®
HD11 User's Guide
/iPad /iPod touch App
® ® ®
