Welcome!
This User's Guide explains how to use, maintain, monitor, and troubleshoot your TracVision HD7 system.
For installation and advanced configuration information, please refer to the Installation Guide.

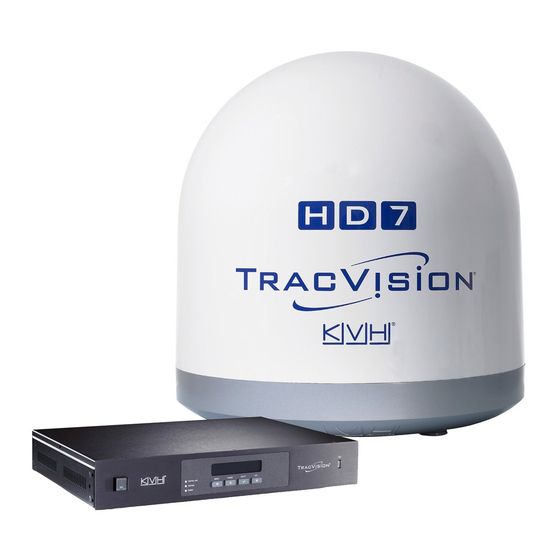

Antenna
The antenna is mounted abovedecks where it collects both
high-definition (HD) and standard-definition satellite TV
signals from your selected satellites.
• For best results, the antenna needs a clear view of the
sky. Objects such as bridges and boat masts can block
the satellite signals and impair signal quality.
• Wash the exterior of the radome periodically. Excessive
dirt or residue can degrade system performance.
• Always keep the radome installed to protect the antenna.
Antenna Control Unit (ACU)
The ACU is mounted belowdecks
and supplies power and controls the
TracVision HD7 system.
• Displays system status and
current settings
• Allows you to make changes to
system settings.
Watching Television
1. Press the Power button on the ACU to turn on the TracVision HD7 system.
2. Wait three minutes for system startup.
3. Turn on your receiver(s) and/or DVR(s).
*
Other satellite services (DISH Network

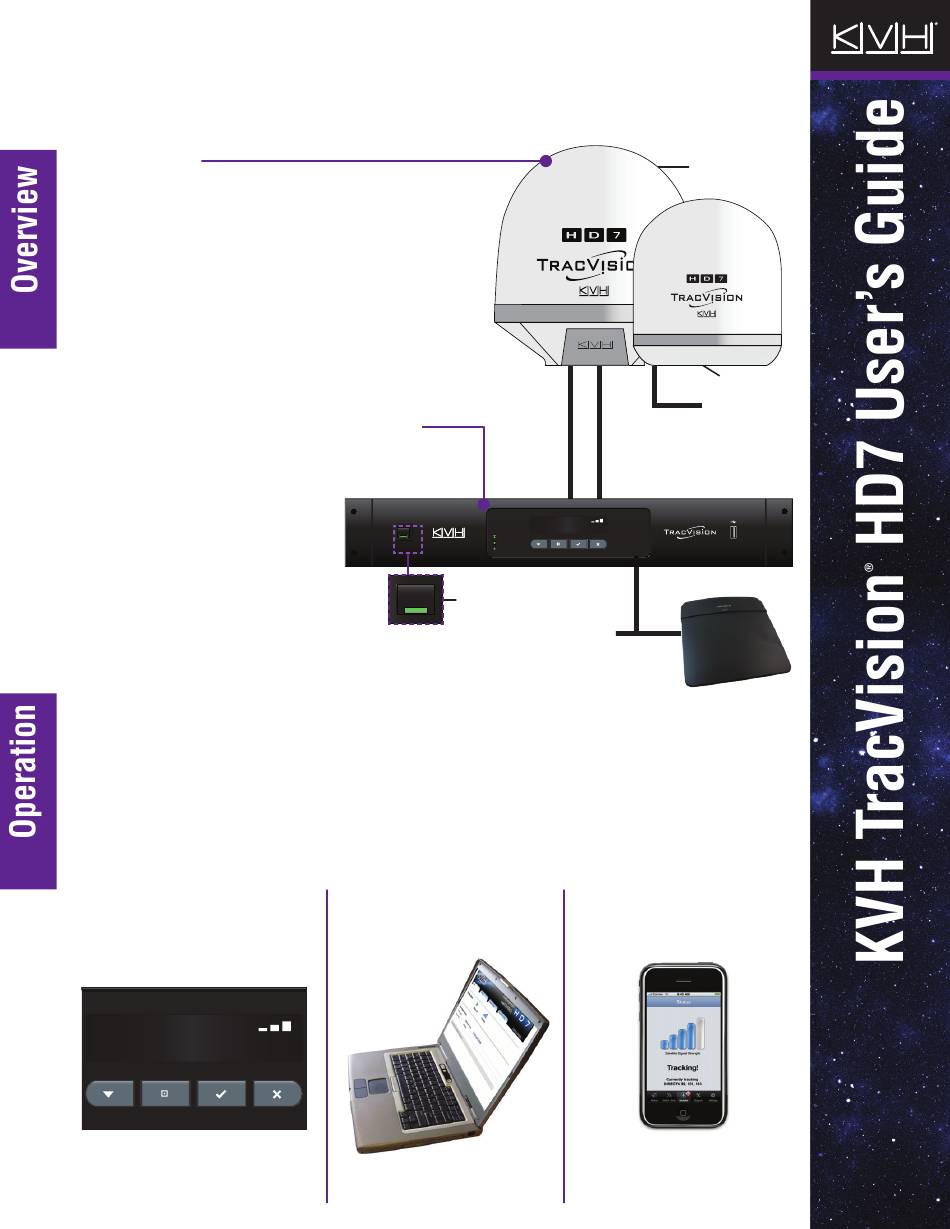

Accessing System Status & Settings
Option A
Use the LCD display and buttons
on the front panel of the ACU.
T R A C K I N G S A T S
D I R E C T V 9 9 / 1 0 1 / 1 0 3
T T
CHANGE ACCEPT
MENU MENU CHANGE CHANGE ACCEPT ACCEPT
MENU
(tracks DIRECTV 99,101 & 103 satellites, by default)*
®
, Bell TV, DIRECTV LA) are available on the HD7. See the Installation Guide for details.
™
Option B
Access the web interface using
your web browser.
EXIT
EXIT EXIT
®
Power Data
Cable Cable
T R A C K I N G S A T S
® D I R E C T V 9 9 / 1 0 1 / 1 0 3
CONTROL UNIT CONTROL UNIT CONTROL UNIT
MENUS MENU MENU CHANGE CHANGE CHANGE ACCEPT ACCEPT ACCEPT EXIT EXIT EXIT
ANTENNA ANTENNA ANTENNA
POWER
POWER POWER
Ethernet
Power Button
Vessel Network
(optional)
Option C
Use the TracVision iPhone
on an iPhone or iPod touch
Download the FREE KVH TracVision HD7
App for iPhone/iPod touch from the Apple
iTunes store.
Radome
(Two sizes)
®
Baseplate
RF Cable(s)
Carrying TV
Signals to
Receivers/
Components
WiFi
Wireless Router
(optional)
App
®
.
®
