Ikegami ISD-A35 Specifications

Hyper Wide Light Dynamic
Vandal Resistant Day/Night Dome Camera

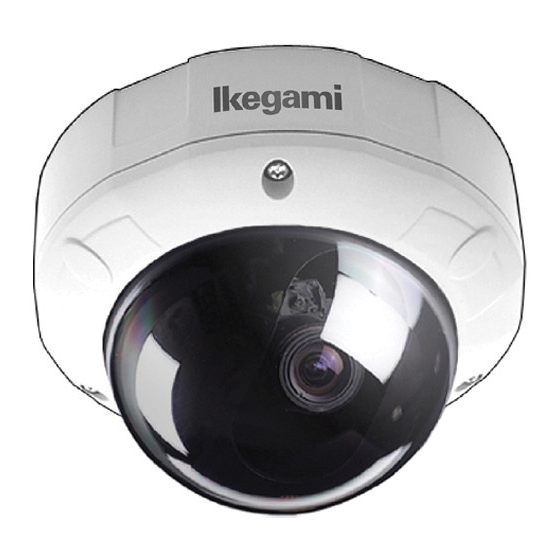

As the newest addition to the Ikegami Hyper Dynamic Camera Series, Model ISD-A35 features an extremely wide light dynamic
range, high sensitivity and high resolution enabled by a 1/3-inch Pixim Seawolf sensor and Ikegami's digital processing
technology. This camera is equipped with an auto iris vari-focal lens, back-light compensation, automatic iris control and phase
adjustable AC line lock or crystal controlled internal sync lock system.
It is a Hyper Wide Light Dynamic Range Dome Camera that reproduces a clear and natural image even in locations where
there is a significant difference in the intensity of illumination, such as window areas, or in lobby entrance of building.
FEATURES
All-in-One Ergonomic Vandal Resistant Dome Housing
This dome camera comes with an IP66 class vandal resistant compact
dome housing.
Hyper Wide Light Dynamic Range (Hyper WDR)
T h e H y p e r W D R f u n c t i o n p r o v i d e s f o r v e r y e f f e c t i v e
compensation of high light and dark areas in screen. This
situation may occur generally outside or viewing from indoor to
outside scenes. Even in large light fluctuations, bright-and-dark
objects can be captured and viewed clearly with a natural color.
Focus EZ Function
Thanks to the Level Indicator, a focusing point is visibly recognized.
The auto iris lens aperture will be kept open, even in broad daylight. This
ensures that an accurate focus can be set readily with the best depth of field.
High-quality Picture and High Resolution
The camera is designed for smear-free imaging and low noise. The
well-designed DSP, Digital Signal Processor, effectively enhances details,
which achieves crisp and sharp images with a high signal-to-noise ratio.
The high resolution of 480TVL/520TVL-Hign-Reso Mode (690
HTVL-Effective) is assured.
High Sensitivity
Various modes of Automatic Gain control (AGC) are available to finely adjust
the camera settings depending on the subject's illumination conditions.
With the AGC and a slow shutter in combination, high sensitivity of up to
0.011 lx/F1.5 is achieved.
Scene File Function (4 positions)
Along with a normal setting (NORMAL), 4 position scene file (preset
file) for each particular scene is provided. Using this function enables
an easy setup suitable for a scene without any special adjustment.
ISD-A35 Black Version
