Plena DVD Player-Tuner | Installation and User Instructions | Equipment
3.4.6

Connect to an amplifier

An ten
na
Tu ne
FM
AM
PLN-DVDT
Di r.O
ut 1
Di r.O
ut 2
Di r.O
ut 3
Di r.O
ut 4
1-
3
4
3
5
1
5
4
2
1-
+
Ins /C
3
G ND
as c
4
2
-
5
1
3
G ND
+
1
-
2
3
1-
3
4
1/ Lin
e
5
2/ Lin
e
LBB1920

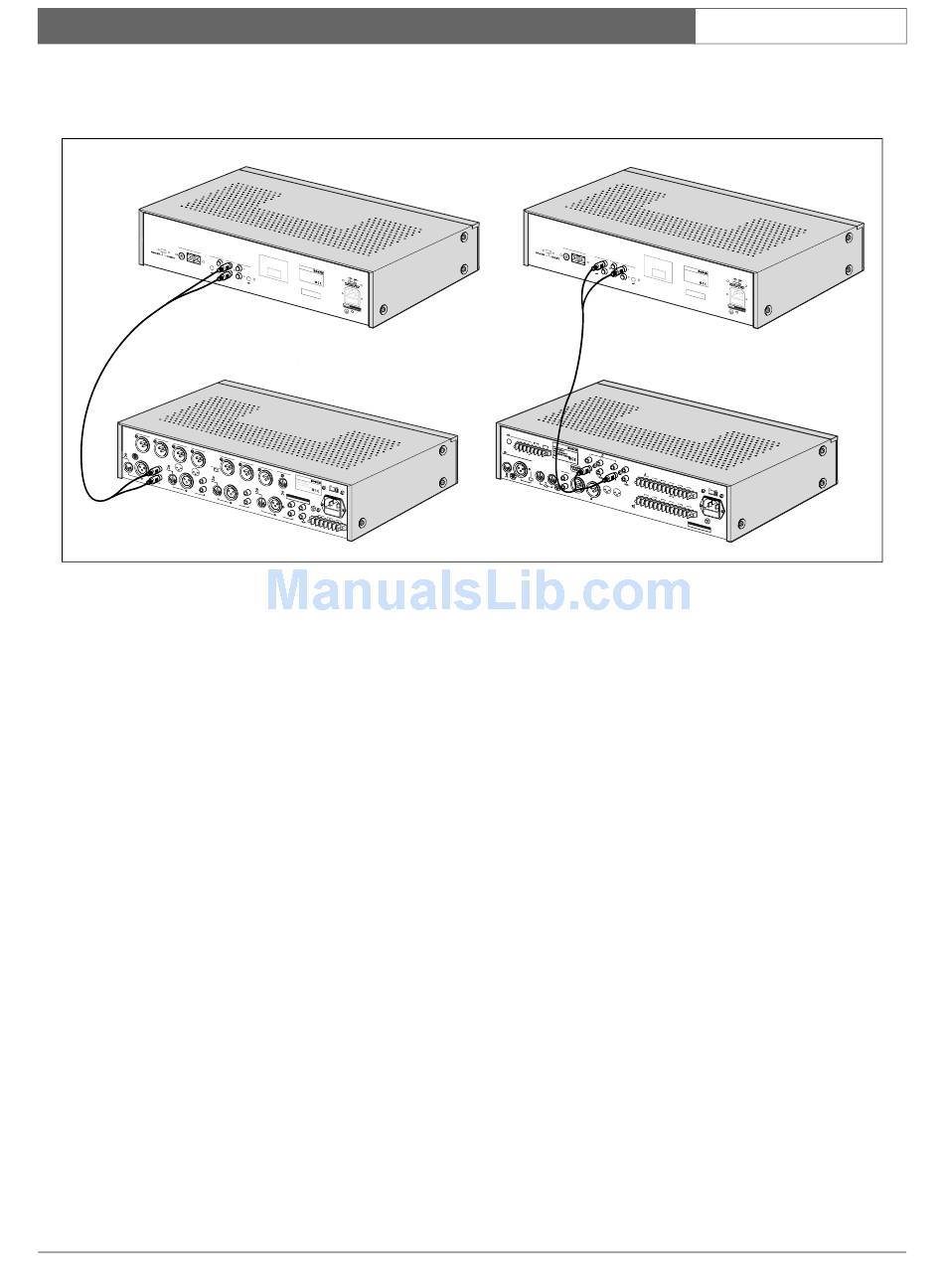

figure 3.7: Connecting to an amplifier
The outputs of the Plena DVD Player-Tuner can be
connected to a Plena Pre-amplifier or Mixer Amplifier.
A stereo cinch/cinch-cable is packed with the unit. As
the Plena DVD Player-Tuner and the Plena amplifiers
are mono, this single cable can be used to connect both
the DVD-player and the tuner together to the amplifier,
using only one connection of the stereo pair.
The combined DVD-player/tuner output can be used
for amplifiers without music source selector, e.g. the
Plena Universal Pre-amplifier LBB1920.
