Controls, connectors and
indicators
3.3.1

Front panel

See figure 3.2 for an overview of the controls and
indicators.
1 Power button
2 DVD pause key
3 DVD eject key
4 Mode key
5 DVD previous key (press once to select previous
chapter or track; press and hold to fast reverse)
6 DVD play key
7 DVD display
8 DVD next key (press once to select next chapter or
track; press and hold to fast forward)
9 DVD stop key
10 Tuner preset memory keys 1-5 and 6-10
11 Tuner display
12 Tuner frequency up/down keys (press once to fine
tune; press and hold to search for channels)
13 Tuner FM/AM selection key
14 Tuner scan key
15 Tuner memory key
16 Tuner shift key to select memory 1-5 or 6-10
1 2 3 4
5
Plena DVD Player-Tuner
Mode
Eject

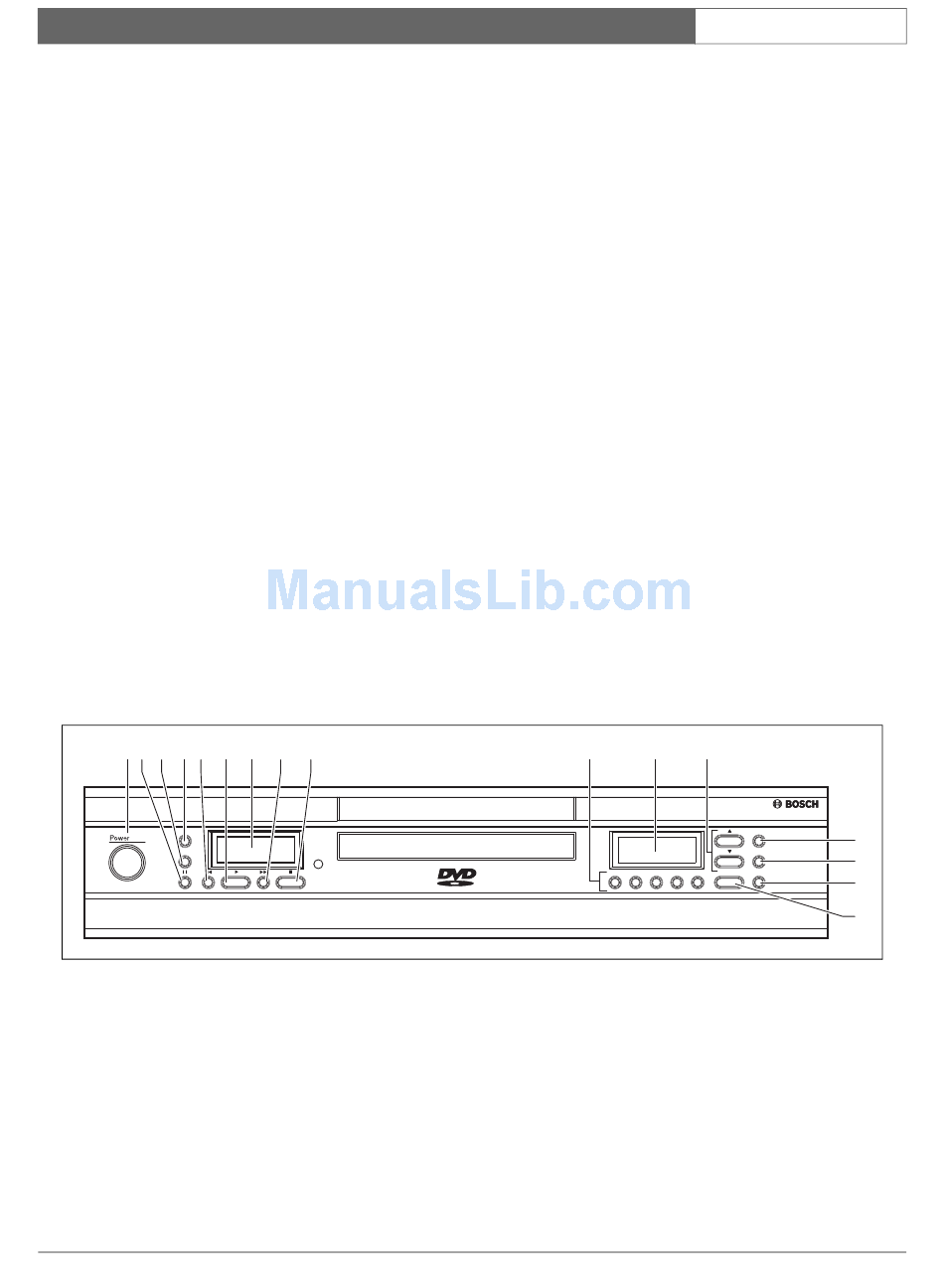

figure 3.2: Front panel of Plena DVD Player-Tuner
Bosch Security Systems | 2008-09 | 9922 141 50772 en
6 7
8
9
10
11
12
AM/FM
Scan
M1/6
M2/7
M3/8
M4/9
M5/0
Shift
Memory
en | 11
13
14
15
16
