3.4.4
External settings and
connections
Connect antennas
The FM input must be connected to an antenna or cable
network with a COAX cable of 75 Ohm. A connector
for the FM input is provided with the unit. The AM
input can be connected to the loop-antenna delivered
with the unit.
An te
nn a
Tu ne
DANG
r
AVOI
ER:
D DIRE
INVIS
IBLE
Tu ne
CT EXPO
r/C D
EVIT
DANG
ER:
ER TOUT
RADI
ATIO
EXPO
FM
VOR
SICH
CD
GE-F
FNET
T:UN
SICH
.NIC
HT DEM
AM

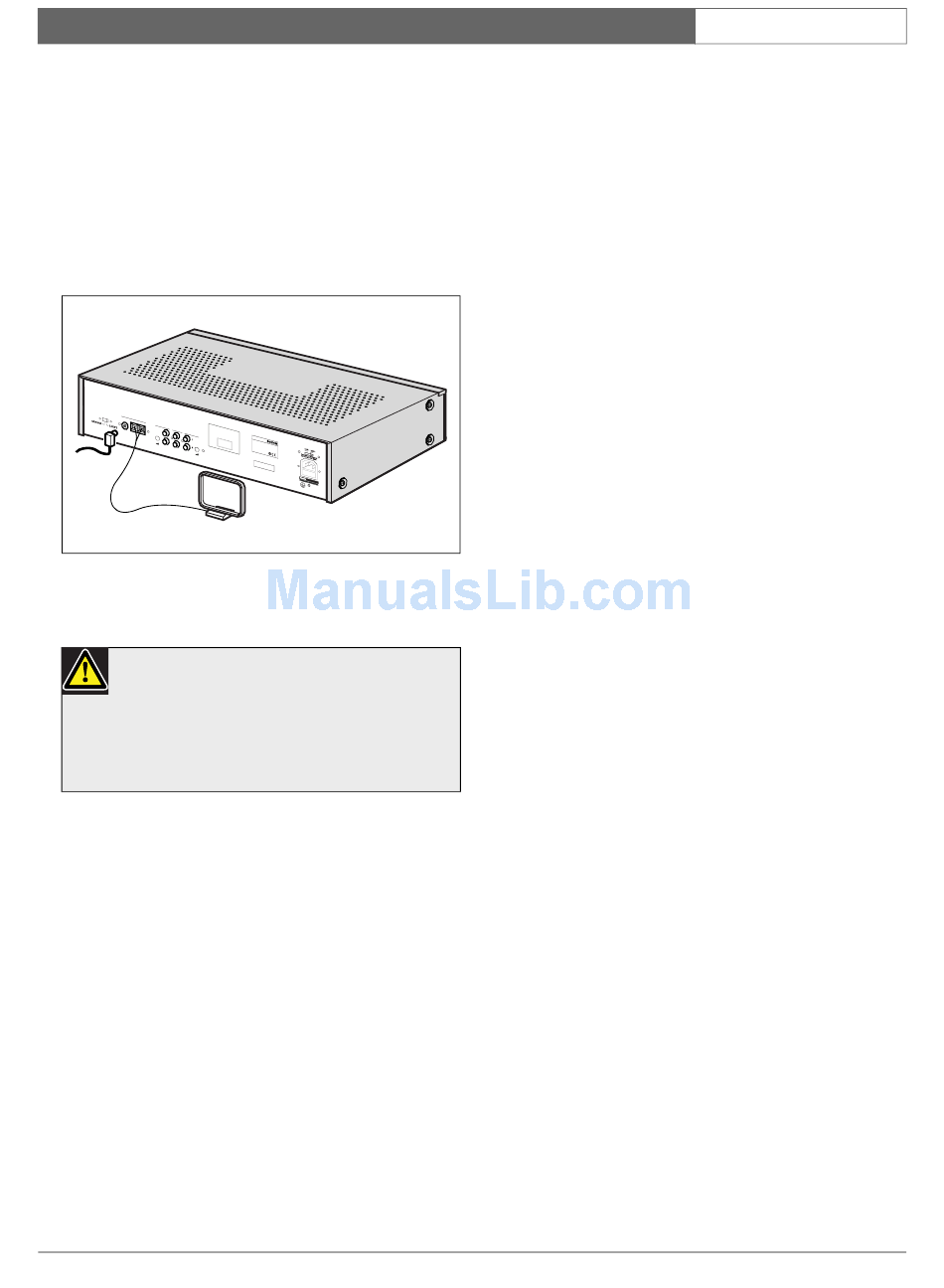

figure 3.6: Connecting antennas
3.4.5

Tuner region selection

Caution
Potential equipment damage. Before switching
on the system, make sure you have read section
3.4.7 "Power", and section 4 "Switch on and
off".
To set the tuner region to either ASIA/USA or Europe:
1 Press and hold in:
the tuner frequency up/down keys (12).
the tuner memory key (15).
2 Press the power button (1) to switch the system on.
3 Either USA or EUP will be displayed.
4 To toggle between USA or EUP, switch the system
off, and repeat from step 1.
