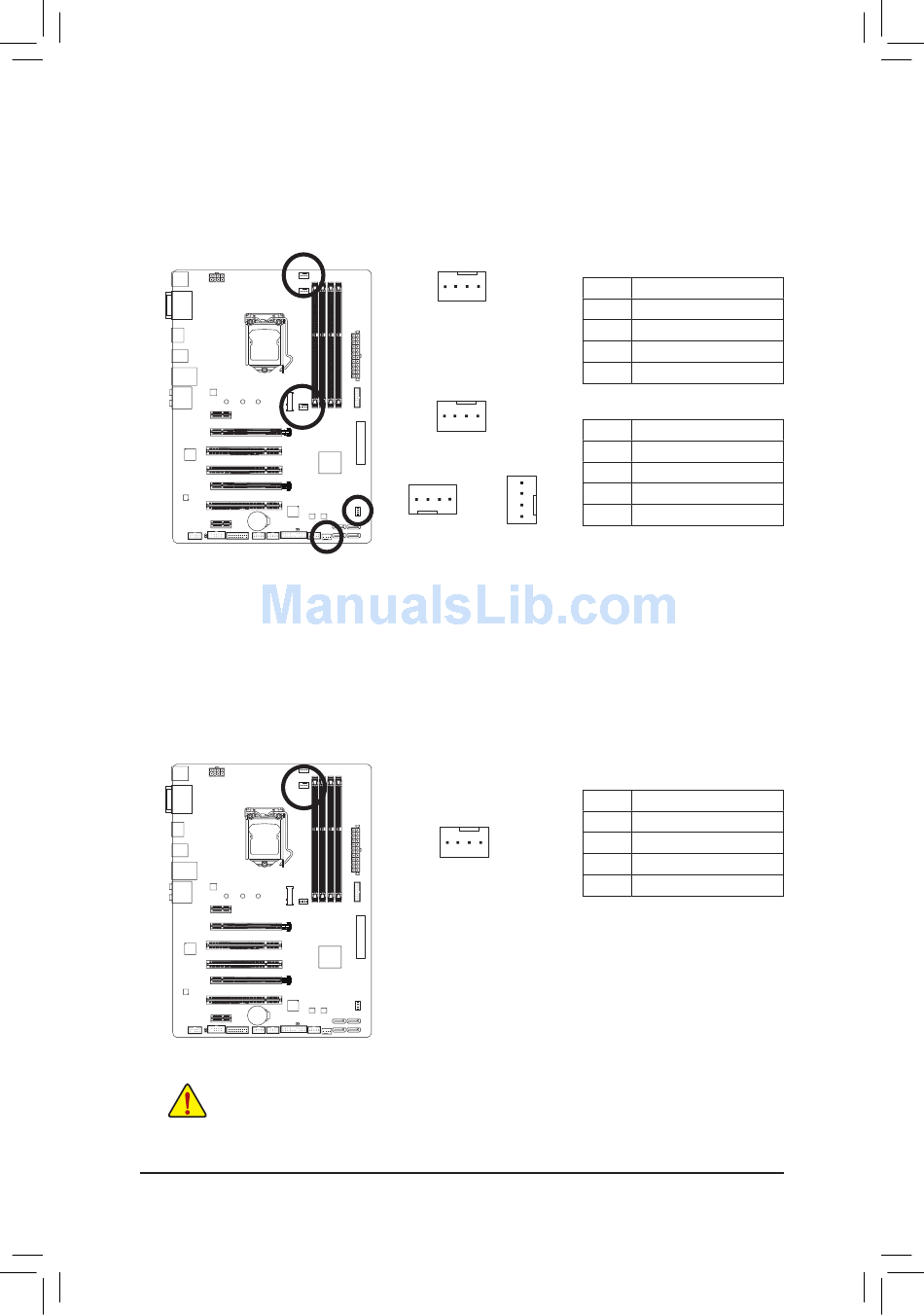

3/4) CPU_FAN/SYS_FAN1/SYS_FAN2/SYS_FAN3 (Fan Headers)
All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion design.
When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is
the ground wire). The speed control function requires the use of a fan with fan speed control design. For
optimum heat dissipation, it is recommended that a system fan be installed inside the chassis.
5) CPU_OPT (Water Cooling CPU Fan Header)
The fan header is 4-pin and possesses a foolproof insertion design. When connecting a fan cable, be
sure to connect it in the correct orientation (the black connector wire is the ground wire). Most fan headers
possess a foolproof insertion design. When connecting a fan cable, be sure to connect it in the correct
orientation (the black connector wire is the ground wire). The speed control function requires the use of a
fan with fan speed control design.
• Be sure to connect fan cables to the fan headers to prevent your CPU and system from overheating.
Overheating may result in damage to the CPU or the system may hang.
• These fan headers are not configuration jumper blocks. Do not place a jumper cap on the headers.
1
CPU_FAN
1
SYS_FAN1
1
SYS_FAN2
1
SYS_FAN3
1
- 23 -
CPU_FAN:
Pin No. Definition
1 GND
2 +12V
3 Sense
4 Speed Control
SYS_FAN1/2/3:
Pin No. Definition
1 GND
2 +12V / Speed Control
3 Sense
4 VCC
Pin No. Definition
1 GND
2 +12V / Speed Control
3 Sense
4 VCC
