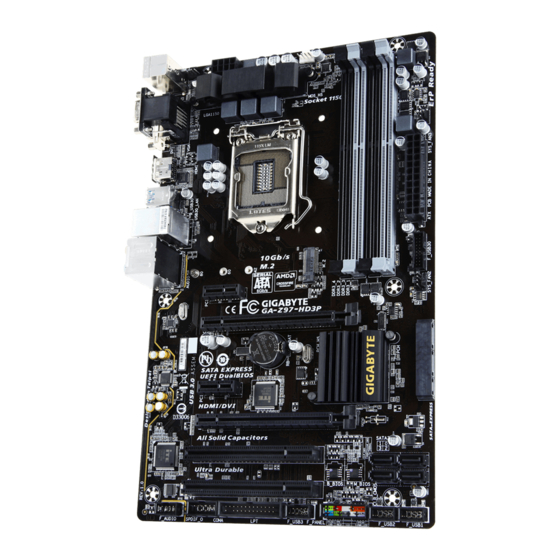

- Page 1 GA-Z97-HD3P GA-H97-HD3P User's Manual Rev. 1001 12ME-Z97HD3P-1001R GA-Z97-HD3P GA-H97-HD3P...
- Page 2 Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without GIGABYTE's prior written permission.
-
Page 3: Table Of Contents
Table of Contents GA-Z97-HD3P/GA-H97-HD3P Motherboard Layout ............4 GA-Z97-HD3P/GA-H97-HD3P Motherboard Block Diagram ...........5 Chapter 1 Hardware Installation ..................6 Installation Precautions ..................6 Product Specifications ..................7 Installing the CPU ..................10 Installing the Memory ..................10 Installing an Expansion Card ................. 11 Back Panel Connectors .................. -
Page 4: Ga-Z97-Hd3P/Ga-H97-Hd3P Motherboard Layout
COMA F_PANEL F_USB1 SPDIF_O Box Contents 5 GA-Z97-HD3P or GA-H97-HD3P motherboard 5 Motherboard driver disk 5 Two SATA cables 5 User's Manual 5 I/O Shield The box contents above are for reference only and the actual items shall depend on the product package you obtain. -
Page 5: Ga-Z97-Hd3P/Ga-H97-Hd3P Motherboard Block Diagram
GA-Z97-HD3P/GA-H97-HD3P Motherboard Block Diagram 1 PCI Express x16 CPU CLK+/- (100 MHz) DVI-D LGA1150 PCIe CLK DDR3 1600/1333 MHz HDMI (100 MHz) Dual Channel Memory DMI 2.0 PCI Express Bus D-Sub Dual BIOS RJ45 Realtek ® GbE LAN SATA Express... -
Page 6: Chapter 1 Hardware Installation
Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •... -
Page 7: 1-2 Product Specifications
Support for DDR3 1600/1333 MHz memory modules Š Support for non-ECC memory modules Š Support for Extreme Memory Profile (XMP) memory modules Š (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) Onboard Integrated Graphics Processor: Š Graphics... - Page 8 Storage Interface Š Chipset: 1 x M.2 Socket 3 connector 1 x SATA Express connector 6 x SATA 6Gb/s connectors (M.2, SATA Express, and SATA3 4/5 connectors can only be used one at a time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed.) Support for RAID 0, RAID 1, RAID 5, and RAID 10 Chipset:...
- Page 9 ATX Form Factor; 30.5cm x 19.0cm Form Factor Š * GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. * Please visit the Support & Downloads\Utility page on GIGABYTE's website to check the supported operating system(s) for the software listed in the "Unique Features"...
-
Page 10: Installing The Cpu
• Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage. -
Page 11: Installing An Expansion Card
Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode. Dual Channel mode cannot be enabled if only one DDR3 memory module is installed. When enabling Dual Channel mode with two or four memory modules, it is recommended that memory of the same capacity, brand, speed, and chips be used and installed in the same colored DDR3 sockets. - Page 12 USB 3.0/2.0 Port The USB 3.0 port supports the USB 3.0 specification and is compatible to the USB 2.0/1.1 specification. Use this port for USB devices such as a USB keyboard/mouse, USB printer, USB flash drive and etc. RJ-45 LAN Port The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate.
-
Page 13: Internal Connectors
Internal Connectors ATX_12V_2X4 F_AUDIO F_USB30 CPU_FAN F_USB1/F_USB2/F_USB3 SYS_FAN1/2/3 SPDIF_O SATA_EXPRESS COMA SATA3 0/1/2/3/4/5 CLR_CMOS F_PANEL Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. • Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices. - Page 14 1/2) ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed.
- Page 15 5) SATA_EXPRESS (SATA Express Connector) DEBUG DEBUG The SATA Express connector supports a single SATA Express device. PORT PORT DEBUG DEBUG PORT PORT 6) SATA3 0/1/2/3/4/5 (SATA 6Gb/s Connectors) The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA 1.5Gb/s standard.
- Page 16 8) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. • PLED/PWR (Power LED, Yellow/Purple): Power LED Power Switch Speaker...
- Page 17 10) F_USB30 (USB 3.0/2.0 Header) The header conforms to USB 3.0/2.0 specification and can provide two USB ports. For purchasing the optional 3.5" front panel that provides two USB 3.0/2.0 ports, please contact the local dealer. Pin No. Definition Pin No. Definition Pin No.
- Page 18 13) COMA (Serial Port Header) The COM header can provide one serial port via an optional COM port cable. For purchasing the optional COM port cable, please contact the local dealer. Pin No. Definition Pin No. Definition NDCD- NDSR- NSIN NRTS- NSOUT NCTS- NDTR- NRI- No Pin...
-
Page 19: Chapter 2 Bios Setup
To access the BIOS Setup program, press the <Delete> key during the POST when the power is turned on. To upgrade the BIOS, use either the GIGABYTE Q-Flash or @BIOS utility. Q-Flash allows the user to quickly and easily upgrade or back up BIOS without entering the operating system. -
Page 20: Startup Screen
It helps first-time users to perform basic system setups more quickly and easily. The ST Mode (for the GA-Z97-HD3P only) provides a fancy and user-friendly BIOS environment where users can easily point and click through various settings and make adjustments for optimum performance. Classic Setup is the conventional BIOS Setup interface where you can press the arrow keys on your keyboard to move among the items and press <Enter>... - Page 21 Allows you to set the CPU Uncore ratio. The adjustable range is dependent on the CPU being used. & Uncore Frequency Displays the current CPU Uncore frequency. M Only for GA-Z97-HD3P. (Note) This item is present only when you install a CPU that supports this feature. For more information about Intel CPUs' unique features, please visit Intel's website.
- Page 22 & Intel(R) Turbo Boost Technology (Note) Allows you to determine whether to enable the Intel CPU Turbo Boost technology. Auto lets the BIOS automatically configure this setting. (Default: Auto) & Turbo Ratio (Note) Allows you to set the CPU Turbo ratios for different number of active cores. Auto sets the CPU Turbo ratios according to the CPU specifications.
- Page 23 If this occurs, please reset the board to default values by loading optimized defaults or clearing the CMOS values. M Only for GA-Z97-HD3P. (Note) This item is present only when you install a memory module that supports this feature.
- Page 24 ` Advanced Voltage Settings This sub-menu allows you to set CPU, chipset and memory voltages. ` PC Health Status & Reset Case Open Status Keeps or clears the record of previous chassis intrusion status. (Default) Disabled Clears the record of previous chassis intrusion status and the Case Open field will Enabled show "No"...
- Page 25 & 2nd System Fan Speed Control Allows you to determine whether to enable the fan speed control function and adjust the fan speed. Allows the fan to run at different speeds according to the system temperature. You Normal can adjust the fan speed with System Information Viewer based on your system requirements.
-
Page 26: System Information
System Information This section provides information on your motherboard model and BIOS version. You can also select the default language used by the BIOS and manually set the system time. & System Language Selects the default language used by the BIOS. &... -
Page 27: 2-4 Bios Features
System (Default) & Full Screen LOGO Show Allows you to determine whether to display the GIGABYTE Logo at system startup. Disabled skips the GIGABYTE Logo when the system starts up. (Default: Enabled) & Fast Boot Enables or disables Fast Boot to shorten the OS boot process. Ultra Fast provides the fastest bootup speed. - Page 28 Disables UEFI CSM and supports UEFI BIOS boot process only. Never This item is configurable only when Windows 8 Features is set to Windows 8. M Only for GA-Z97-HD3P. (Note) This item is present only when you install a CPU that supports this feature. For more information about Intel CPUs' unique features, please visit Intel's website.
- Page 29 & Boot Mode Selection Allows you to select which type of operating system to boot. UEFI and Legacy Allows booting from operating systems that support legacy option ROM or UEFI option ROM. (Default) Legacy Only Allows booting from operating systems that only support legacy Option ROM. UEFI Only Allows booting from operating systems that only support UEFI Option ROM.
-
Page 30: Peripherals
Peripherals & Initial Display Output Specifies the first initiation of the monitor display from the installed PCI graphics card, PCI Express graphics card or the onboard graphics. Sets the onboard graphics as the first display. IGFX PCIe 1 Slot Sets the graphics card on the PCIEX16 slot as the first display. (Default) PCIe 2 Slot Sets the graphics card on the PCIEX4 slot as the first display. - Page 31 & Audio LED Enables or disables the onboard audio LED. (Default: Enabled) & Intel Processor Graphics Enables or disables the onboard graphics function. (Default: Enabled) & Intel Processor Graphics Memory Allocation Allows you to set the onboard graphics memory size. Options are: 32M~512M. (Default: 64M) &...
-
Page 32: Power Management
` Serial ATA Port 0/1/2/3/4/5 & Port 0/1/2/3/4/5 Enables or disables each SATA port. (Default: Enabled) & Hot plug Enables or disable the hot plug capability for each SATA port. (Default: Disabled) & External SATA Enables or disables support for external SATA devices. (Default: Disabled) ` Super IO Configuration This section provides information on the super I/O chip and allows you to configure the serial port and parallel port. - Page 33 & Resume by Alarm Determines whether to power on the system at a desired time. (Default: Disabled) If enabled, set the date and time as following: Wake up day: Turn on the system at a specific time on each day or on a specific day in a month. Wake up hour/minute/second: Set the time at which the system will be powered on automatically.
-
Page 34: Save & Exit
& PCIe ASPM Allows you to configure the ASPM mode for the device connected to Chipset's PCI Express bus. Auto lets the BIOS automatically configure this setting. This item is configurable only when Platform Power Management is set to Enabled. (Default: Auto) &... -
Page 35: Chapter 3 Appendix
& Load Profiles If your system becomes unstable and you have loaded the BIOS default settings, you can use this function to load the BIOS settings from a profile created before, without the hassles of reconfiguring the BIOS settings. First select the profile you wish to load and then press <Enter> to complete. You can select Select File in HDD/USB/FDD to input the profile previously created from your storage device or load the profile automatically created by the BIOS, such as reverting the BIOS settings to the last settings that worked properly (last known good record). - Page 36 5. After setting the capacity, move to Create Volume and press <Enter> to begin. 6. After completing, you'll be brought back to the Intel(R) Rapid Storage Technology screen. Under RAID Volumes you can see the new RAID volume. To see more detailed information, press <Enter> on the volume to check for information on RAID level, stripe block size, array name, and array capacity, etc.
-
Page 37: Drivers Installation
You can click the Xpress Install button and "Xpress Install" will install all of the selected drivers. Or click the arrow icon to individually install the drivers you need. For more software information, please visit GIGABYTE's website. - 37 -... -
Page 38: Regulatory Statements
Contravention will be prosecuted. We believe that the information contained herein was accurate in all respects at the time of printing. GIGABYTE cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed as a commitment by GIGABYTE. - Page 39 FCC Notice (U.S.A. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 40: Contact Us
Tech. and Non-Tech. Support (Sales/Marketing) : http://esupport.gigabyte.com WEB address (English): http://www.gigabyte.com WEB address (Chinese): http://www.gigabyte.tw You may go to the GIGABYTE website, select your language in the language list on the top right corner of the website. GIGABYTE eSupport •...
