Smeg K181X60 Brochure & Specs

K181X60
dimensions
600mm W x 496mm D x 1190mm H
maximum
finish
satin stainless steel
installation
wallmount
motor
190 watt centrifugal, twin impellors,
double-sided air uptake
capacity
590 m/hr net
3
noise rating
29–50 dBA
extraction
direct duct ot recirculate
illumination two x 20 watt halogen globes,
separate ON/OFF buttons
speeds
three separate buttons
filtration 2 x stainless steel/aluminium 4-ply
grease filters, removable, warm
hand wash
warranty two years parts and labour

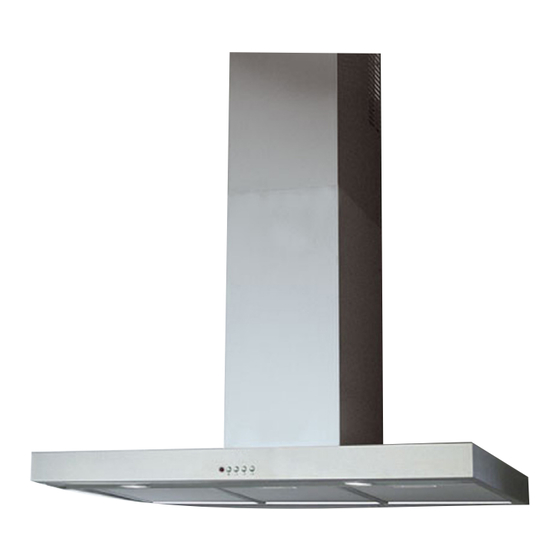

smeg wallmount rangehood, 60cm
PERFORMANCE
Highly-efficient air extraction of up to 590 cubic metres an hour true (net)
ensures the very swift removal of cooking vapours, odours and heat.
The higher speed selections are perfect for the more vigorous styles of
cooking such as stir frying, griddle cooking and boiling, the lower speeds
at the touch of a button are perfect for simmers.
QUIETNESS
29 to 50 dBA. The motor/impellor encasements are smooth-walled to
minimise air drag and, hence, noise. All metal joins are welded to reduce
vibration.
SAFETY
Thermal overload protection on motor, fire retardant hardened metal
and mesh, VO self-extinguishing plastic for motor housing and internal
flue.
MAINTENANCE
No tools required — easy lift-out pair of grease filters for washing. For light
replacement, simply rotate the decorative flange for access to halogen
globes.
DUCTING
Direct ducting to atmosphere ensures the maximum removal of grease/
oil/particle-laden vapour plus the odours and, very importantly, the heat,
resulting in a cleaner, cooler, more comfortable work area.
RECIRCULATION
When the cooking vapours cannot be ducted to atmosphere, the
filtered air can simply be redirected back into the kitchen via a duct pipe
through the overhead cabinetry.
CHARCOAL FILTERS
This is a purchasable accessory. It is inserted just below the centrifugal
motor and is designed to absorb and diminish cooking odours. Periodic
inspection is recommended before replacement. The activated
charcoal filter is optionally used for recirculation only. Charcoal filters are
not to be washed. The are replaceable.
DUCTING MATERIAL
Smooth internal walled duct pipe lengths ensure the most efficient air
movement and quieter operation. Consider either high temperature
rated PVC or galvanised sheet metal piping. The flexible ducting cab be
ideal for a very short, tight run.
The rangehood's air exit aperture is designed for 150mm (6") ducting;
however, a 125mm diameter (5") adaptor can be purchased for optional
use.
DELAY STOP
Ideally, a rangehood should run for several minutes after all cooking
is ceased in order to drag through residual vapours and odours. By
selecting the delay stop button at the end of the cooking, the rangehood
will turn the motor off in five minutes as well as the lights if they were left
on.
CLEANING PROMPT
After 30 hours use the LED window will prompt visually to inspect the
grease filters for possible cleaning. Simply use the Reset button to clear
the LED window.
ID200410
Code K181X60
