Summary of Contents for Smeg KCVB9SG

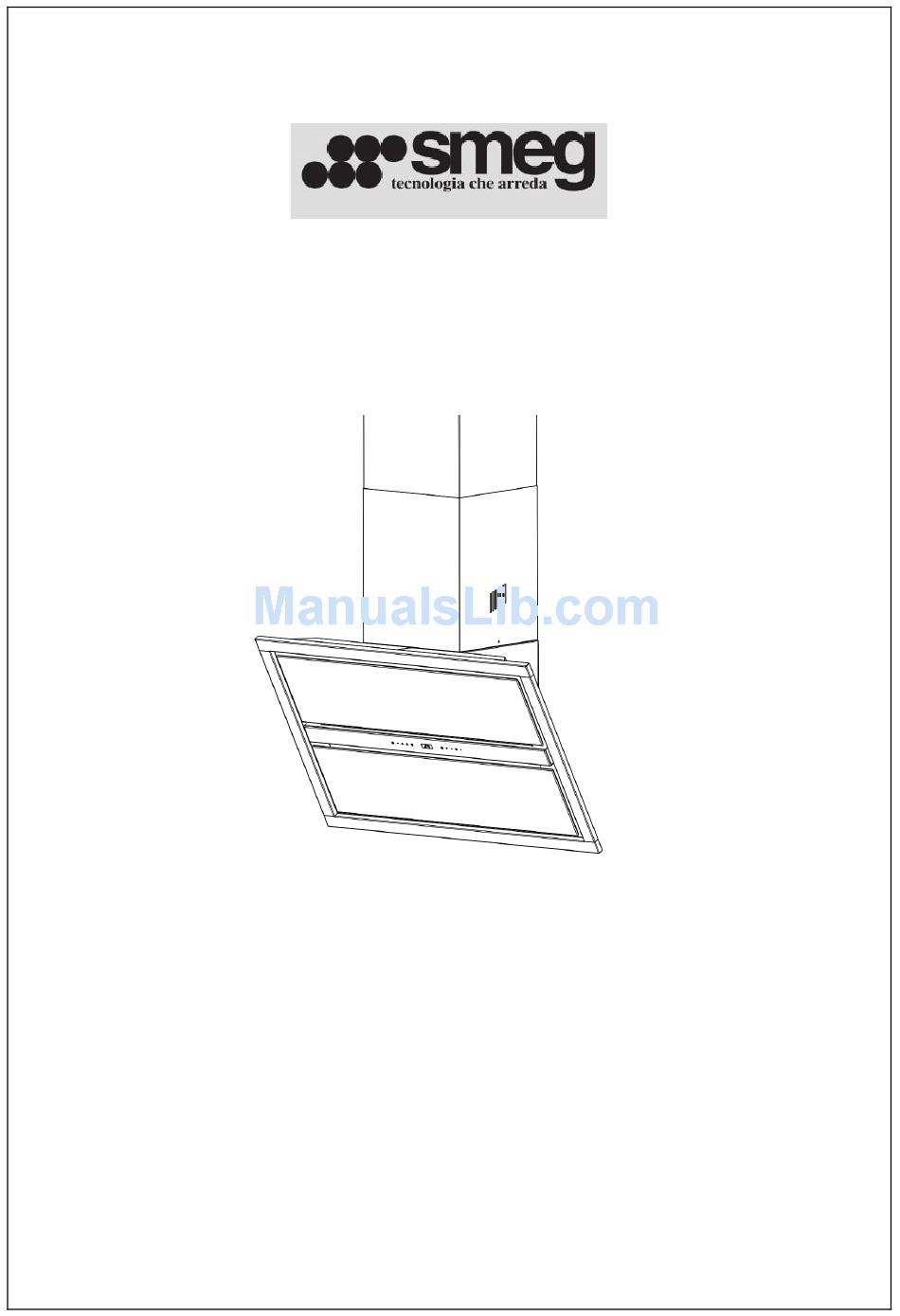

- Page 1 Specific Instruction Manual...
-
Page 2: Installation Instructions
Installation instructions:... - Page 3 Grease filter extraction instructions. Top removable glass Bottom removable glass 1)Top glass extraction phases: NB: Extract the bottom glass in the same manner.
- Page 4 Grease filter extraction: To remove the metal grease filter, follow the instructions carried in the General Instruction Booklet.
-
Page 5: Technical Features
Electronic control system instructions for use: Technical Features: • Power supply from mains: 230 VAC – 50/60 Hz • Power consumption in standby: 20 mA • Max. load applicable to LIGHTS connection: 150 W • Max. load applicable to MOTOR connection: 400 W (capacitor motors only) •... - Page 6 Operating Features Keypad with 10 touch buttons + 2 digit display + IR-RX Buttons from left to right: • MOTOR ON/OFF Starts and stops the blower motor. The display shows the current speed setting. • SPEED – Reduces motor speed: V4 → V3 → V2 → V1 •...
- Page 7 To disable the DELAY press the button again or stop the motor. • RESET FILTRI: Resets the filter saturation alarm if pressed for 2s when all the loads (motor+lights) are off. • If there is a metal Filter sat. alarm, FF appears on the display, after 100 h of operation.
- Page 8 Keypad lock: Locks keyboard functions (for example, when cleaning the glass surface) when all the loads are off and no alarm is on. To enable/disable this function, press the BOOST-SPEED button for about 5s until the two central segments of every digit on the display light up. FILTER SATURATION ALARM;...
- Page 9 • Press button 24 to enable/disable the remote control receiver; “tc” flashes twice on the display when the remote has been enabled and once when the remote control has been disabled.
