Pro-Form 990 CSE User Manual page 9

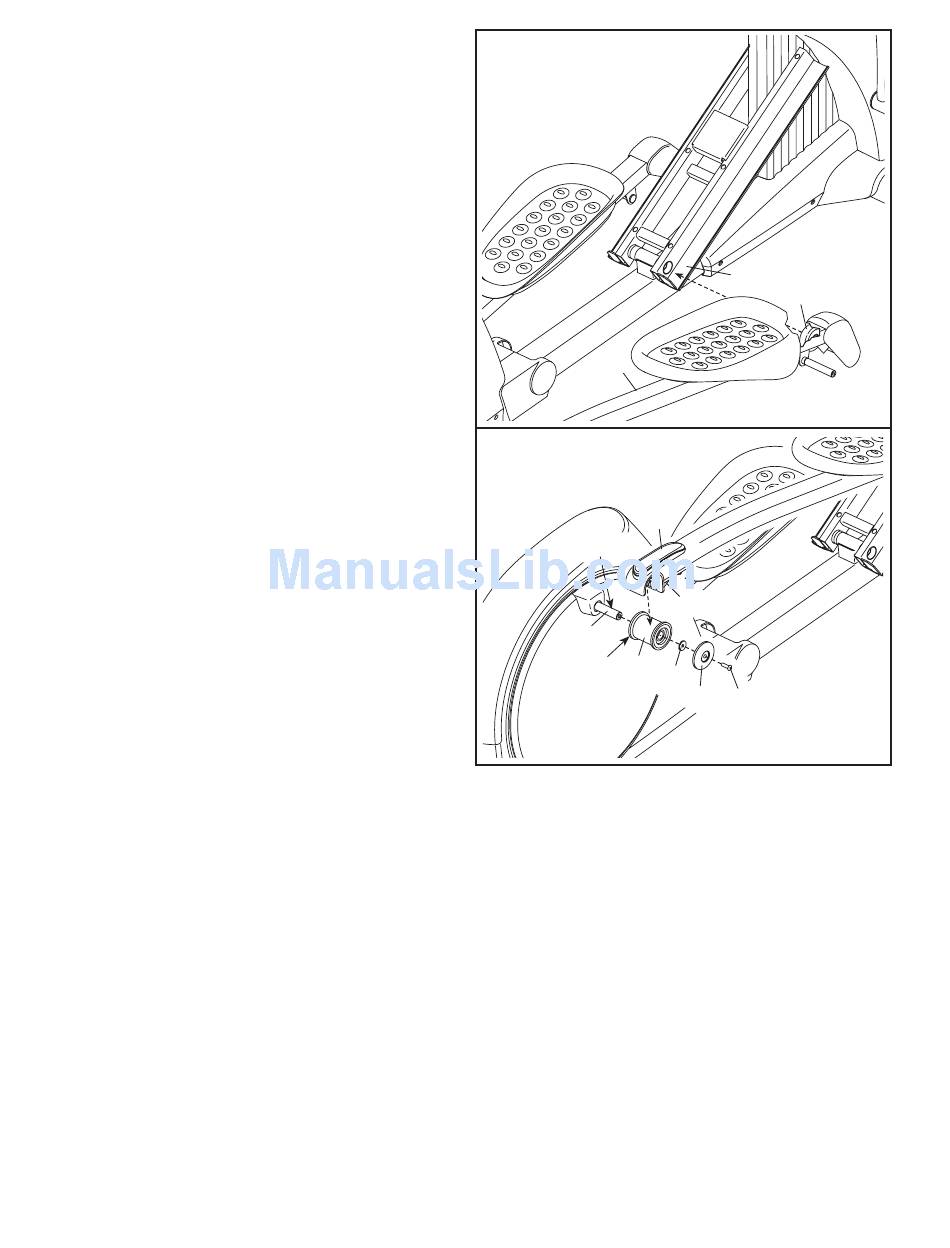

6. See drawing 6a. Locate the Pedal Arm Roller
(32) on the Right Pedal Arm (12). Set the Pedal
Arm Roller on the Ramp (130).
See drawing 6b. Apply grease to the axle on the
right Crank Arm (39).
Orient a Pedal Arm Sleeve (46) so that the flat
side is facing the elliptical. Slide the Pedal Arm
Sleeve onto the axle on the right Crank Arm (39).
Attach the Pedal Arm Sleeve with an M8 x 25mm
Screw (121), a Large Axle Cover (113), and an
M8 Washer (95).
Next, pull upward on the Latch (50) on the Right
Pedal Arm (12). Press the Right Pedal Arm onto
the Pedal Arm Sleeve (46). Make sure that the
Right Pedal Arm latches into place.
Repeat this step on the other side of the
elliptical.
6a
12
6b
12
Grease
39
Flat 46
Side
9
Meijer.com
130
32
50
95
113
121
