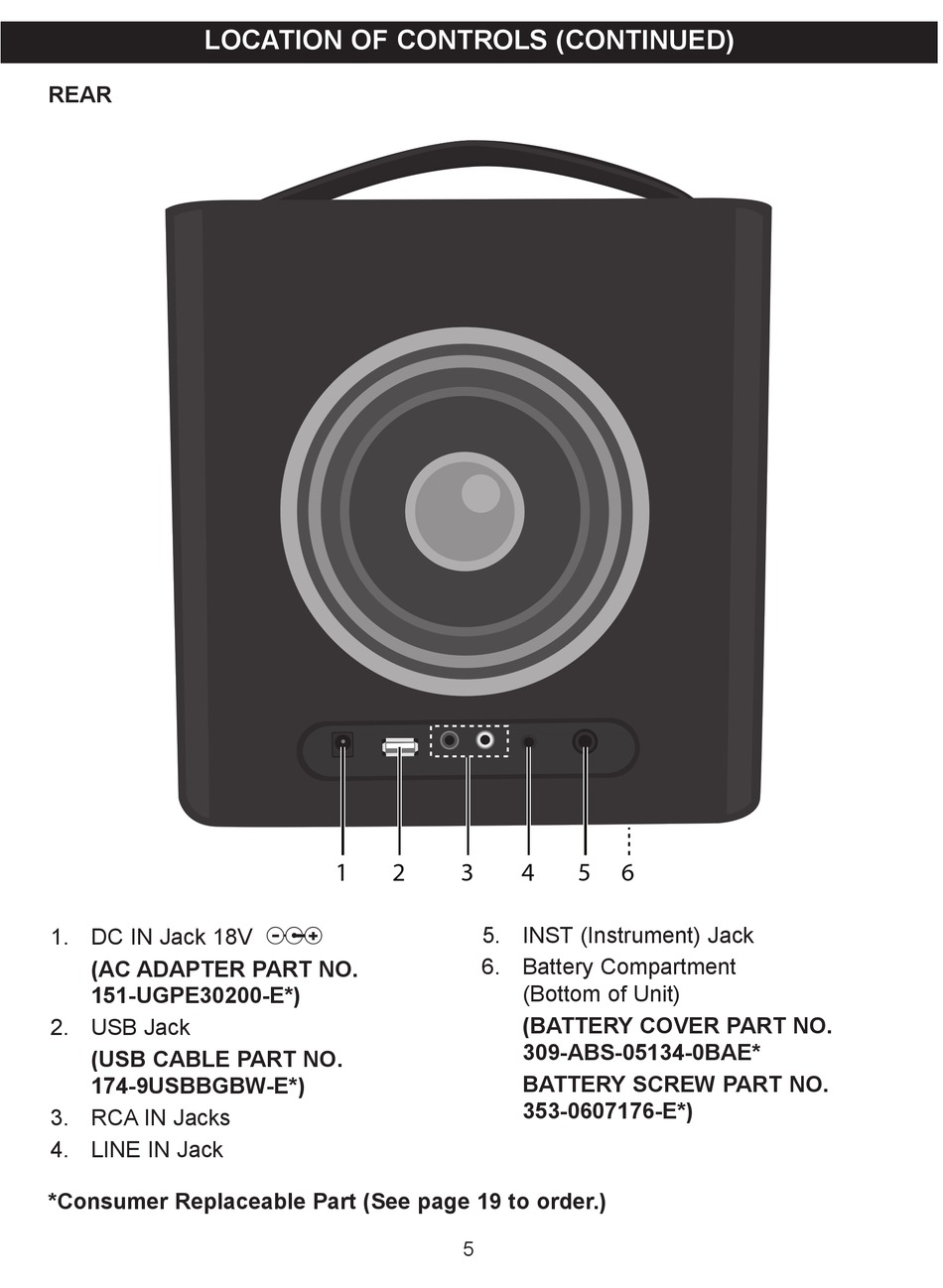

LOCATION OF CONTROLS (CONTINUED)
REAR
1. DC IN Jack 18V z
(AC ADAPTER PART NO.
151-UGPE30200-E*)
2. USB Jack
(USB CABLE PART NO.
174-9USBBGBW-E*)
3. RCA IN Jacks
4. LINE IN Jack
*Consumer Replaceable Part (See page 19 to order.)
1
2
3
5. INST (Instrument) Jack
6. Battery Compartment
5
4
5
6
(Bottom of Unit)
(BATTERY COVER PART NO.
309-ABS-05134-0BAE*
BATTERY SCREW PART NO.
353-0607176-E*)
