CONTENTS DVD/VCD Video Operation ................20 Thank you for choosing a Jensen product. We hope you will find the instructions in this owner’s Opening/Closing the TFT Video Screen ..............20 manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to DVD LCD Display....................... -
Page 3: Preparation

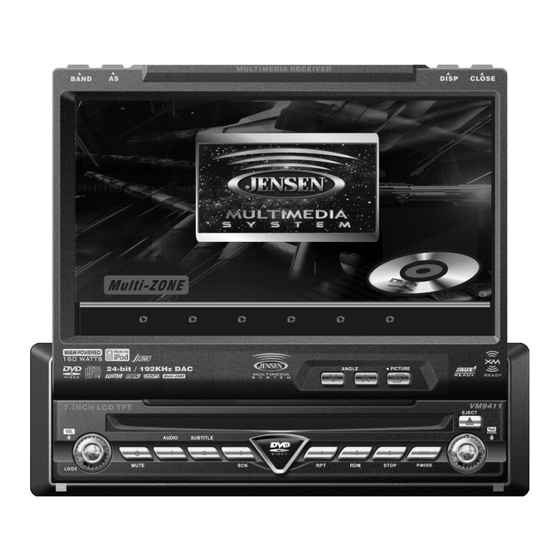

VM9411 PREPARATION Congratulations on your purchase of the Jensen VM9411 XM Ready • Joystick menu navigation Mobile Multimedia Receiver. • Requires optional Terk XMD1000 tuner box Tools and Supplies • Requires optional Terk XMDJEN100 or Jensen JXMC XM It’s a good idea to read all of the instructions before beginning... -
Page 4: Optional Accessories
To prevent a short circuit, be sure to turn off the ignition and remove the negative (-) battery cable prior to installation. NOTE: If the VM9411 is to be installed in a car equipped with an on-board drive or navigation computer, do not disconnect the battery cable. - Page 5 VM9411 WIRING DIAGRAM...
- Page 6 VM9411 WIRING DIAGRAM - MULTIMEDIA CONNECTIONS *TERK XMDJEN100 cables (sold separately) **TERK XMD1000 Direct Tuner and antenna (sold separately)
-
Page 7: Installation
CH TFT CH TFT AS/P type and amperage to avoid damaging the radio. The Push MUTE VM9411 uses one 15 amp mini-ATM fuse, located in the DISP OPEN black filter box in-line with the main wire harness. Push ENTE Final Installation... -
Page 8: Controls And Indicators
Press the POWER/MUTE button (7) once to turn the unit on. Press again to mute the volume. Press and hold to turn the unit off. NOTE: The VM9411 features Softmute, which will allow the volume to increase or decrease gradually when the MUTE function is activated or deactivated. - Page 9 VM9411 CONTROLS AND INDICATORS 10. 3/SCN DVD Mode: Press once to start scan playback. TUNER Mode: Press once to play preset radio station channel 3. Press and hold to store the current radio station in preset channel 3. 11. 4/REP DVD Mode: Press once to start repeat playback.
-
Page 10: Lcd Display/Indicators
VM9411 CONTROLS AND INDICATORS LCD Display/Indicators 1. Disc Indicator Illuminated when disc is loaded 2. DVD Playback Indicators (SCN/RPT/RDM/ALL) The following DVD playback indicators become Illuminated when the corresponding function is active: • SCN: scan playback • RPT: repeat playback •... -
Page 11: Front Zone Remote Control
VM9411 FRONT ZONE REMOTE CONTROL NOTE: Your remote control may differ slightly from the one pictured here. The above diagram is for illustrative purposes only. - Page 12 VM9411 Table 1: Front Zone Remote Control Functions Button Function Name/Ref # AM/FM CD/MP3 iPod MENU Enters the main menu of Turns on PBC when play- Displays XM Setup Menu Selects Photo mode the disc ing VCD TITLE Enters the title menu of...
- Page 13 VM9411 Table 1: Front Zone Remote Control Functions Button Function Name/Ref # AM/FM CD/MP3 iPod Slow Playback/Rewinds Slow Playback/Rewinds playback playback ZOOM Zooms in/out on an image Zooms in/out on an image Displays set-up parame- Displays set-up parame- ters ters...
-
Page 14: Multi-Zone Remote Control
VM9411 MULTI-ZONE REMOTE CONTROL Table 2: Multi-Zone Remote Control Functions Button Function Name Ref # MENU Enters the main menu of the disc Turns on PBC when playing VCD TITLE Enters the title menu of the disc Plays first ten seconds of each chapter/title... -
Page 15: Using The Tft Monitor
VM9411 USING THE TFT MONITOR Open/Close TFT Monitor Aspect Ratio NOTE: The default adjustment is “0” in PAL mode. Tint is Open TFT Monitor Press the WIDE button (28) on the remote control or unavailable for adjustment. PICTURE button (2) on the monitor to adjust the aspect ratio... -
Page 16: Monitor Movement Mechanism
VM9411 Monitor Movement Mechanism If an obstruction occurs in the monitor path, the following protective measurements can be executed to prevent damage to the mechanism or monitor: Table 4: Monitor Protective Measures Self OPEN Button Power Obstruction Protection Pressed Reconnected... -
Page 17: Operating Instructions
VM9411 OPERATING INSTRUCTIONS Power On / Off Programmable Turn-On Volume Table 5: Audio Adjustments This feature allows the user to select a turn-on volume setting Press the /MUTE button (1) to turn the unit on. The buttons Audio Function Adjustable Range regardless of the volume setting prior to turning the unit off. -
Page 18: System Reset
VM9411 the DVD output using the rear zone remote control. See “Multi-Zone Remote Control” on page 12 for instructions. System Reset To correct a system halt or other illegal operation, use the tip [RESET] Button of a pen to press the RESET button (22) located on the front bottom-right corner of the unit. -
Page 19: System Setup Menu
VM9411 SYSTEM SETUP MENU In “System Setup” mode, “ASP CONFIG” and “GENERAL Adjusting a Feature Table 7: General Setup Menu Features SETUP” are available for adjustment. Setup can be Enter the option field for the feature you want to adjust performed by pressing the dedicated button on the remote by pressing the >/|| button (18) on the remote or by... -
Page 20: Asp (Audio Sound Processing) Config Menu
VM9411 Adjusting the Clock Table 8: ASP Config Menu Features Method 1 – TFT screen open: Setting Options Function Access the “Clock” setting under the General Setup menu. Sub Filter 80Hz Selecting a crossover frequency sets a cut-off frequency of the subwoofer's Press the >>... -
Page 21: Am/Fm Tuner Operation
Press the |<< button (17) on the remote control or the < button on the joystick (16) to seek the next station lower. The VM9411 offers an alternate display for the AM / FM tuner Default TFT Tuner Display interface that is less bright than the default tuner display and Manual Tuning is more appropriate for night driving. -
Page 22: Dvd/Vcd Video Operation
VM9411 DVD/VCD VIDEO OPERATION NOTE: When properly installed, DVD video cannot be This unit is equipped with Keyless Disc Eject, allowing you to • Press the REPT A-B button again once you reach the displayed on the main TFT screen unless the parking break is eject a disc with the power off. -
Page 23: Goto Search
VM9411 • Aux input • For VCD mode, press the GOTO button to choose control to choose the language in which you would like the between Track Search, Disc Search and Exit. subtitles to appear. 2 and 6-channel mode is available for: •... -
Page 24: General Disc Information
VM9411 • Rear: AUX IN – “AUX IN” is the current playing source for Table 10: Disc Properties the rear zone. “Surround” is the current playback audio encoding system. Symbol 12cm Disc Properties Max Play Time “DSP” indicates Digital Signal Processing. -
Page 25: Dvd/Disc Setup Menu
Function AUDIO Menu Subtitle English Select the default language in which The VM9411 has a built-in Pink Noise generator to help set you would like subtitles (if applicable) to the relative speaker levels for multi-channel audio playback. Chinese be displayed. -
Page 26: Surround Setup Menu
VM9411 Table 14: AUDIO Menu Features To change speaker settings for 2-channel mode, use the >> Table 16: RATING Menu Features buttons (14, 22) on the remote control or the /\ or V << Setting Options Function buttons (18, 19) on the joystick to select “Stereo”. To change... -
Page 27: Dvd/Disc Audio Operation
In Random sequence of the “Root’ directory. The VM9411 will play music or other audio files from the Play mode, you can Press the |<< or >>| button (17, 19) on... -
Page 28: Ipod Operation
To return to the iPod menu the VM9411 TFT monitor. To exit VIDEO mode, press the >> from any other source menu, press the SRC button (15) on... -
Page 29: Tv Tuner Operation
VM9411 TV TUNER OPERATION Accessing TV Mode To switch to TV mode, press the SRC button (15) on the front panel or on the remote control (8) until TV appears at the bottom of the screen. Seek Tuning Press the >>| button (19) on remote control, or the > button on the joystick (17) to seek the next available TV station by increasing the tuning frequency. -
Page 30: Xm Radio Operation
VM9411 ® RADIO OPERATION Storing a Station Press the >> button (14) on the remote control or the /\ button ® Select a band (XM-1, XM-2 or XM-3), then select a sta- (18) on the joystick to view the next page of stations. Each... -
Page 31: Xm Setup Menu
VM9411 Press the GOTO button (21) until the following screen channel(s) are locked. Press the MENU button (1) twice to appears. return to the main XM page. Use number keys on the remote control to enter the desired XM radio station. You must enter a 3 digit number (for example, 004). -
Page 32: Troubleshooting
VM9411 TROUBLESHOOTING Table 17: Troubleshooting Problem Cause Corrective Action GENERAL Unit will not power on Radio Fuse blown Install new fuse with correct rating Car battery fuse blown Install new fuse with correct rating Illegal operation Press the RESET button located in the bottom right corner of the front panel... -
Page 33: Error Messages
VM9411 Table 17: Troubleshooting Problem Cause Corrective Action Disc does not play back Disc is warped or scratched Use disc in good condition Disc is dirty or wet Clean disc with soft cloth Laser pickup is dirty Clean laser pickup with cleaning disc... -
Page 34: Care And Maintenance
VM9411 Table 18: Error Messages Message Displayed Cause Corrective Action Error illegal mechanism operation Press EJECT key for 5 seconds to reset loading mechanism Care and Maintenance Use only a clean silicone cloth and neutral detergent to clean the front panel or monitor. A rough cloth and non- neutral detergent (such as alcohol) may result in scratching or discoloration. -
Page 35: Specifications
Company's option) without charge for parts and repair Output: 1Vp-p (75-ohm) labor. To obtain repair or replacement within the terms of this Input: 1Vp-p (75-ohm) © 2006 Audiovox Warranty, please contact Jensen at the telephone number FM Tuner Ver 1.0 provided below. Tuning Range: 87.5MHz - 107.9MHz... - Page 36 VM9411...
