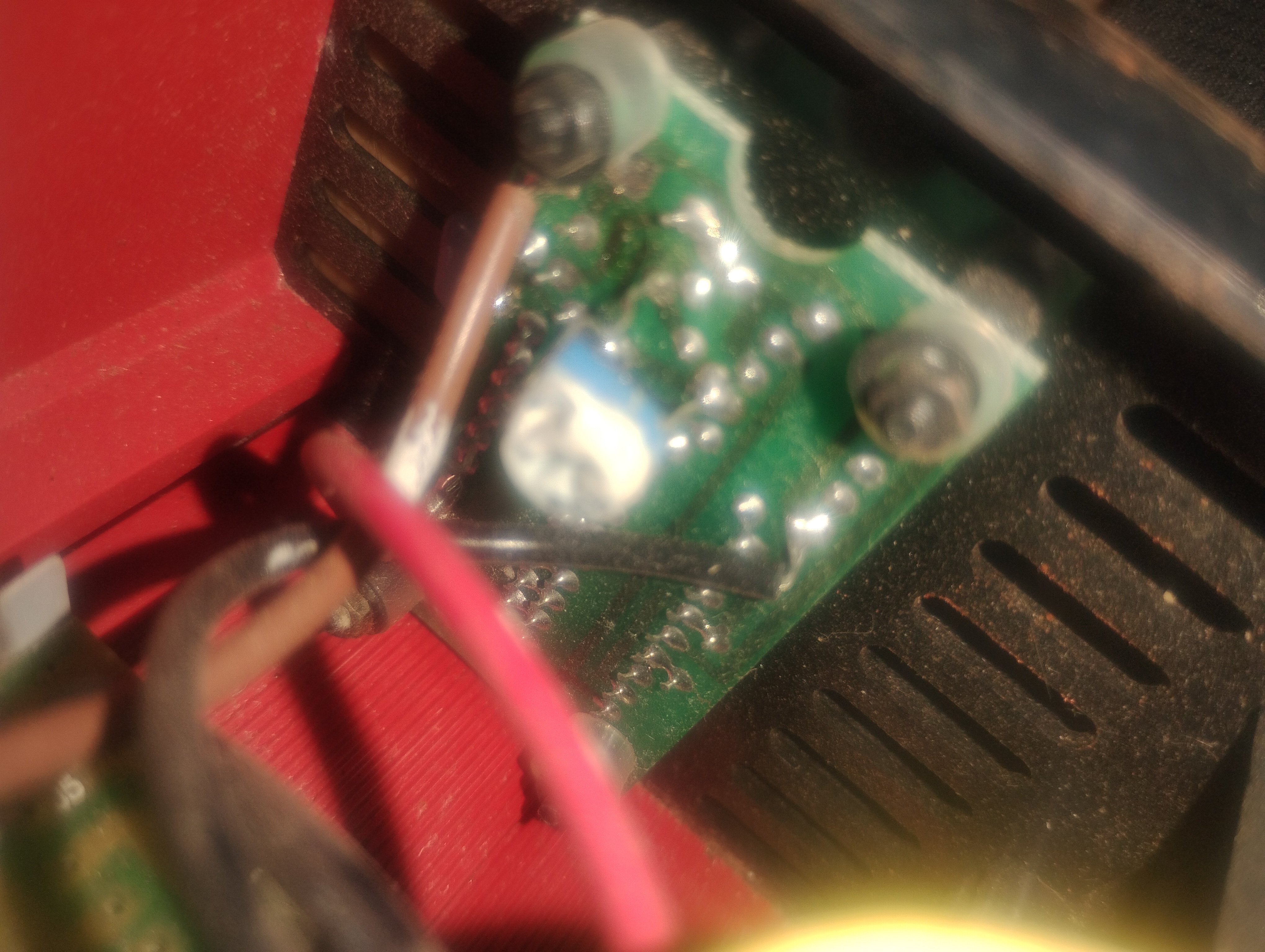

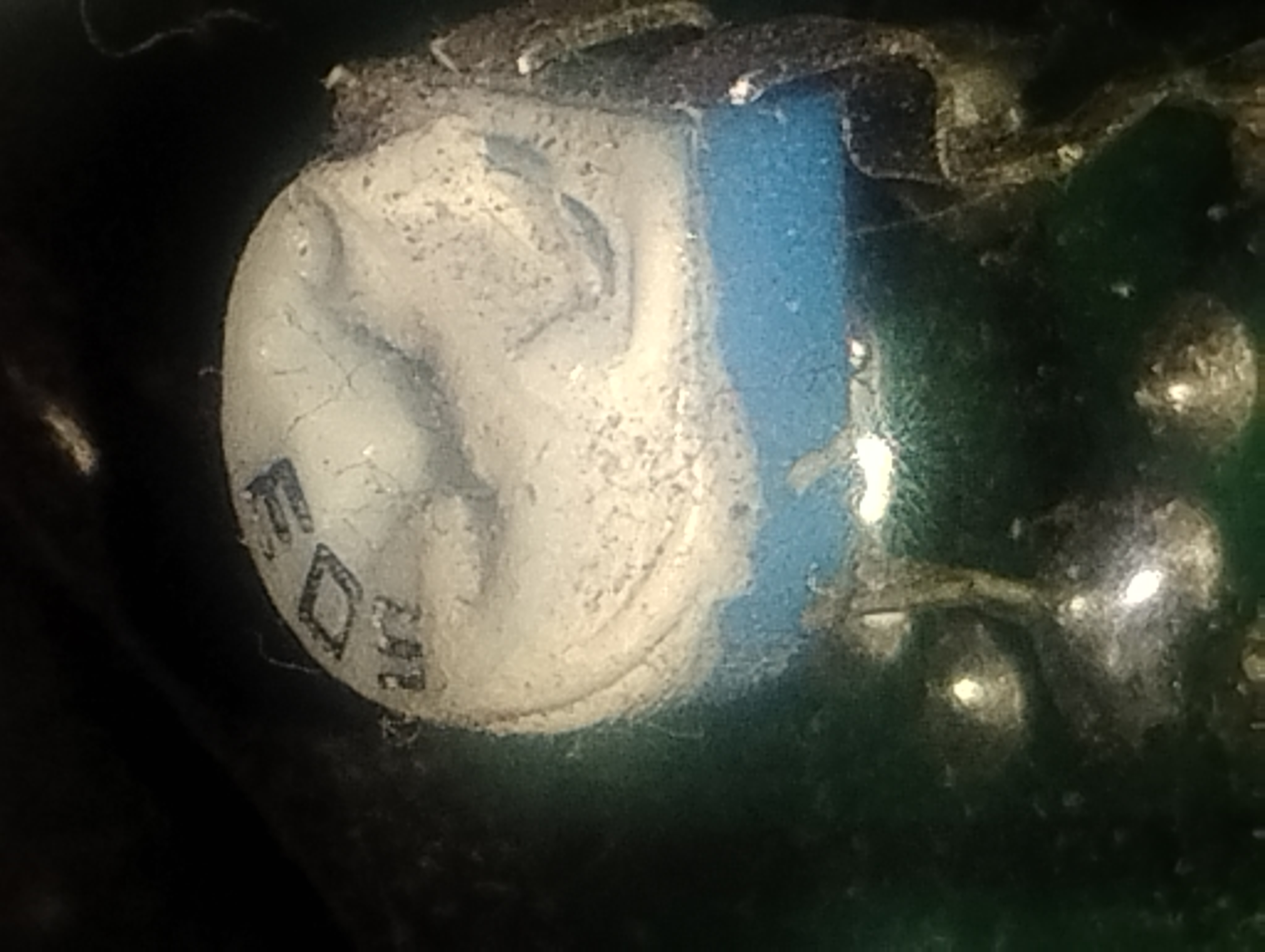

MAXX SST
USER'S MANUAL
4140 S.W. 30th Ave., Ft. Lauderdale, FL 33312
Toll Free: (866) 584-5504
www.vectormfg.com
™
VEC053D
VEC054D
VEC056D
VEC049D
VEC050D
VEC051D
VEC053D
VEC054D
VEC056D
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vector MAXX SST VEC049D
Summary of Contents for Vector MAXX SST VEC049D
-
Page 1: Warranty Information
VEC049D VEC050D VEC051D VEC053D VEC054D VEC056D MAXX SST ™ Compact Power Inverters Converts 12 Volt DC to 120 Volt AC Advanced MOSFET Technology VEC049D VEC053D VEC050D VEC054D VEC051D VEC056D USER’S MANUAL & WARRANTY INFORMATION IMPORTANT SAFETY INFORMATION, SAVE THESE INSTRUCTIONS TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND THIS INSTRUCTIONAL MANUAL. -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS To ensure reliable service, your power inverter must be installed and used properly. Please read the installation and operating instructions thoroughly prior to installation and use. Pay particular attention to the WARNING and CAUTION statements in this User’s Manual. The CAUTION statements advise against certain conditions and practices that may result in damage to your inverter. -
Page 3: Save These Instructions
Important Cable Information Substantial power loss and reduced battery operating time results from inverters installed with cables that are not able to supply full power. Symptoms of low battery power can result from cables that are either excessively long or an insufficient gauge. Marine installations are also subjected to vibration and stresses that exceed those of other mobile installations. - Page 4 This Vector Manufacturing product is warranted, to the original purchaser only, to be free of defects in materials and workmanship for two years from the date of purchase without additional charge. The warranty does not extend to subsequent purchasers or users.
-
Page 5: Table Of Contents
Specifications ............16 INTRODUCTION Thank you for purchasing a Vector Power Inverter. Please read this guide carefully before use to ensure optimum performance and to avoid damage to this product. -
Page 6: Vec049D & Vec053D Diagrams
120 volt AC power is supplied through North American three-prong type outlets. The VEC049D and VEC053D feature two outlets; the VEC050D and VEC054D feature three; and the VEC051D and VEC056D feature four. The outlets can accommodate either two- or three-pin AC plugs. VEC049D &... -
Page 7: Vec051D & Vec056D Diagrams
VEC051D & VEC056D Front View Diagram RED FAULT ON/OFF LED INDICATOR POWER GREEN POWER LED SWITCH INDICATOR WATTAGE POWER METER (4) 120 VOLT AC PORT FOR REMOTE CONTROL OUTLETS (SOLD SEPARATELY) VEC051D VEC056D Back View Diagram Back View Diagram HIGH-SPEED HIGH-SPEED COOLING FANS COOLING FANS... -
Page 8: Principle Of Operation
PRINCIPLE OF OPERATION The MAXX SST inverter converts 12 volt DC (direct current) from a vehicle battery or ™ other 12 volt DC power source to standard 120 volt AC (alternating current) household power. It converts power in two stages (see the diagram below). In the first stage, the inverter raises the 12 volt DC input to 145 volts DC. -
Page 9: Appliance Power Consumption
APPLIANCE POWER CONSUMPTION MAXX SST inverters are ideal for powering: ™ • Lights • TVs and TV/DVD (VCR) combinations units • Radio receivers/transceivers and stereo systems • Computers and peripheral equipment • Refrigerator/freezers • Small microwave ovens • Household appliances •... -
Page 10: Appliance Consumption In Amps And Watts Chart
The following chart shows the approximate amperage and corresponding wattage at 120 volts AC for various common tools and appliances. Appliance Consumption in Amps and Watts Chart APPLIANCE AMPS@ WATTS@ 120VAC 120VAC Laptop Computer Household Power Mixer 240-Watt Stereo/Amplifier Refrigerator 3/8"... -
Page 11: Operating Instructions
battery connections are tight and the battery (or batteries) is (are) fully-charged. If the connections are good and the battery is charged, but the voltage still drops below 11 volts, you may need to use a larger battery (or battery combination). CAUTION Rechargeable Devices Certain rechargeable devices do not operate well from a modified sine... -
Page 12: Determining Battery Size
(See “Specifications, page 16.) BATTERY Note: For typical heavy-duty uses, Vector recommends a specified or equivalent ANL fuse be added as close as possible to the power source (battery) positive terminal. The fuse amperage size must be appropriate to allow simultaneous... -
Page 13: Protective Features
operating time at full load. To extend operating time in general, reduce the heavy appliance load to a minimum. Remember, you are operating on stored energy and probably under power loss conditions. Note: All operating time curves assume permanent installation with the appropriate DC input wire (See the “Specifications”... -
Page 14: Installation
DC input to existing wiring (which must be approved for marine use) at the appropriate gauge, cable and length (see the “Specifications” section, page 16). For cable lengths exceeding 6 feet from inverter to batteries, call Vector for additional installation information. The cable, fuse holder and fuse (not supplied) can be purchased at an electrical supply company. -
Page 15: Installation Procedures
A. Check all connections and tighten any that may be loose. B. Ensure that the source battery has adequate charge. C. If steps A and B do not correct the problem, contact Vector Technical Support, toll-free, at (866) 584-5504, for assistance. -
Page 16: Preliminary Steps
12 volt DC power source. Vector inverters should be operated in horizontal position; if it is to be mounted on a wall, mount it horizontally so that indicators, switches, outlets and terminal blocks on the front panel are visible and accessible. -
Page 17: Connection To Load
If, after following all of the above steps, the inverter does not perform properly, the source voltage may be too low or the cables may be too long (or the gauge too light). Having checked and, if necessary, corrected these conditions, contact Vector Technical Support, toll-free, at (866) 584-5504 for assistance if problems persist. -
Page 18: Notes On Using The Remote Control (Sold Separately)
Notes on Using the Remote Control (sold separately) For ease of use, Vector offers (as a separate item) a Remote Control specifically designed for this line of MAXX SST inverters. The inverter ON/OFF Switch must be in the OFF position when connecting the Remote Control to the unit or the Remote Control will not operate. -
Page 19: Troubleshooting
TROUBLESHOOTING Common Audio/Visual Problems “Buzzing” sound in audio systems Some inexpensive stereo systems and “boom boxes” emit a buzzing sound from their speakers when operated from the Power Inverter. This occurs because the power supply in the electronic device does not adequately filter the modified sine wave produced by the inverter.
