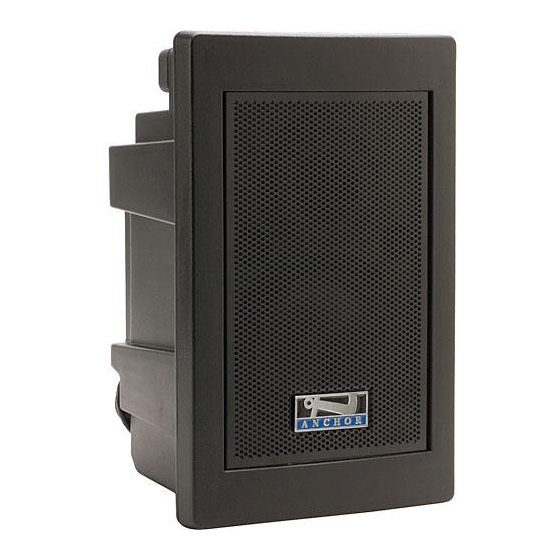

Anchor EXPLORER PRO Owner's Manual

HAVING TROUBLE W/ YOUR SOUND SYSTEM?
CONDITION POSSIBLE SOLUTION
No Sound (power LED off) • turn POWER switch ON
• charge battery or plug in AC cord
Charge Indicator LED off • leave plugged in for 48 hours to repair battery
No Sound (power LED on) • check for output from source
• make sure all cables are completely plugged in
• turn up volume control of input used
• remove plug from speaker output if not using external speaker output
Shortened Battery Life • charge battery fully; if battery life continues to deteriorate, contact
Distorted Sound • lower system volume control
Excessive Hum or Noise • use shielded cables
• use balanced microphone
HAVING TROUBLE W/ YOUR WIRELESS SYSTEM? (WIRELESS MODELS ONLY)
CONDITION POSSIBLE SOLUTION
No Sound (RX Indicator: ON) • set MUTE switch to on (handheld mic only)
• turn up WIRELESS volume control
• make sure mic is plugged into body pack transmitter
No Sound (RX Indicator: OFF) • push mic power button
• turn Expolrer PRO POWER switch on
• make sure transmitter power switch is on
• set receiver and transmitter to same channel
• replace battery in transmitter
NEED MORE HELP? View demonstration videos on proper system setup and operation
at our website - http://www.anchoraudio.com/explorer.php
ANCHOR AUDIO CUSTOMER SERVICE
888-444-6077
EXPLORER PRO TECHNICAL SPECIFICATIONS
Rated Power Output 60 watts (AC mode) / 30 watts (DC mode)
Max SPL @ rated power 110 dB @ 1 meter
General
Frequency Response 80 Hz - 16 kHz
Speaker type 6.5" woven fiber woofer,
high-output horn tweeter
Inputs
Microphone Inputs Lo-Z (1 k ohm), balanced, XLR
(two universal jacks) 12 VDC condenser mic (phantom) power
Hi-Z (10 k ohm), unbalanced, 1/4"-phone
Auxiliary (line) input Hi-Z (10 k ohm), unbalanced, 1/8" stereo,
1/4"-phone
Anchor Audio, Inc.
Portable Sound Systems • Torrance, California
Anchor Audio customer service: (888) 444-6077
Sensitivity For Rated Output
Line -8.4 dBV (380 mVrms)
Mic (unbalanced) -49 dBV (3.63 mVrms)
Mic (balanced) -49 dBV (3.63 mVrms)
Outputs
Line Output (post fader) Lo-Z, buffered, dual RCA/
1/4" unbalanced/ balanced
Speaker Output 2 ohm, unswitched, 1/4"-phone
AC Power Requirements 90 - 264 VAC, 50/60 Hz
Dimensions (HWD) 16.5 x 10.5 x 10" / 42 x 27 x 25 cm
Weight 23 pounds / 10.4 Kg
(Specifications subject to change without notice)
EXPLORER PRO
PORTABLE SOUND SYSTEM
OWNER'S MANUAL
GETTING STARTED ................................................................................................................................................. 2
SETTING UP YOUR EXPLORER PRO SOUND SYSTEM ......................................................................................... 2/3
FEEDBACK / SPEAKER STAND SETUP .................................................................................................................... 3
EXPLORER PRO SOUND SYSTEM BASIC OPERATION ............................................................................................. 4
CARING FOR YOUR BUILT-IN BATTERY / STEREO LINE INPUT JACK ..................................................................... 4
EXPLORER PRO ACCESSORIES ................................................................................................................................ 6
OPERATING THE BUILT-IN UHF WIRELESS RECEIVER ........................................................................................... 6
OPERATING THE WIRELESS MICROPHONE / TRANSMITTER ................................................................................. 7
HAVING TROUBLE W/ YOUR SOUND SYSTEM? ...................................................................................................... 8
EXPLORER PRO SOUND SYSTEM TECHNICAL SPECIFICATIONS ............................................................................ 8
100-0143-000/4 - 11/06
CONTENTS
